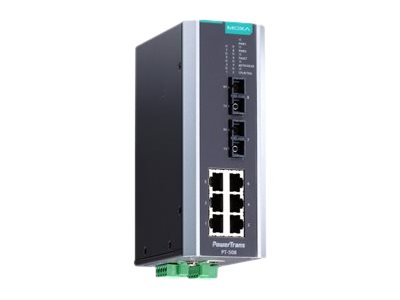

Moxa PowerTrans PT-508 Series PT-508-MM-SC-HV – switch – 8 ports – managed
Moxa PowerTrans PT-508 Series PT-508-MM-SC-HV – Switch – managed – 6 x 10/100 + 2 x 100Base-FX – DIN rail mountable – AC 120/220 V / DC 110/220 V
AED7,899.00
Moxa’s Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. Moxa offers toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.
| Device Type | Switch – 8 ports – managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Fast Ethernet |
| Ports | 6 x 10/100Base-TX RJ-45 |
| 2 x 100Base-FX SC multi-mode x 2 |
| Capacity | Active VLANs: 64 |
| VLAN IDs: 4094 |
| IGMP groups: 256 |
| Priority queues: 4 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, |
| TFTP, SSH, CLI, SMTP, NTP |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control |
| BOOTP support |
| RARP support |
| IGMP snooping |
| Syslog support |
| Port mirroring |
| IPv6 support |
| SNTP support |
| Spanning Tree Protocol (STP) support |
| Rapid Spanning Tree Protocol (RSTP) support |
| Multiple Spanning Tree Protocol (MSTP) support |
| Quality of Service (QoS) |
| DHCP server |
| IPv4 support |
| LLDP support |
| Link Aggregation Control Protocol (LACP) |
| NTP server |
| Port based access control |
| DHCP client |
| E-mail notification |
| Management Information Base (MIB) |
| NTP time synchronization |
| Class of Service (CoS) |
| GARP VLAN Registration Protocol (GVRP) |
| EtherNet/IP enabled |
| Back Pressure Support |
| 1Mbit packet buffer |
| GARP Multicast Registration Protocol (GMRP) |
| Link Aggregation |
| Management Information Base (MIB) II |
| NTP client |
| Modbus compatible |
| VLAN Tagging |
| Port-based VLAN |
| Port trunking |
| Turbo Ring 1 |
| Turbo Chain |
| Turbo Ring 2 |
| 8KV ESD Protector (contact discharge) |
| 15KV ESD Protector (air-gap discharge) |
| Aluminum housing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, |
| IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Status Indicators | Power, fail, link/activity |
| Expansion / Connectivity | Interfaces: |
| 1 x management (RS-232) RJ-45 |
| 6 x 100Base-TX RJ-45 |
| 2 x 100Base-FX SC multi-mode x 2 |
| Power | Voltage Required: AC 120/220 V / DC 110/220 V |
| Miscellaneous | MTBF: 394,238 hours |
| Compliant Standards | IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, |
| IEC 61000-4-6, IEC 61000-4-8, UL 508, FCC Part 15 B Class A, IP40, NEMA TS-2, |
| IEC 61850-3, IEEE 1613, EN 50155, EN 55032 Class A, CISPR 32, IEC 62443 |
| Dimensions & Weight | Width: 2.4 in |
| Depth: 4.3 in |
| Height: 6.3 in |
| Weight: 35.09 oz |
