MSI Mag A1000GL PCIE5 1000W Power Supply Unit


  • ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
  • Supports NVIDIAĀ® GeForce RTXā„¢ 40 series graphics cards
  • Fully modular design, flat cables
  • 80 PLUS Gold certified for high efficiency
  • Active PFC design
  • Protection with OVP / OCP / OPP / OTP / SCP / UVP
  • 135 mm fluid dynamic bearing fan
  • LLC full bridge topology with DC-to-DC module design

AED1,099.00

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

ATX 3.1 READY

The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

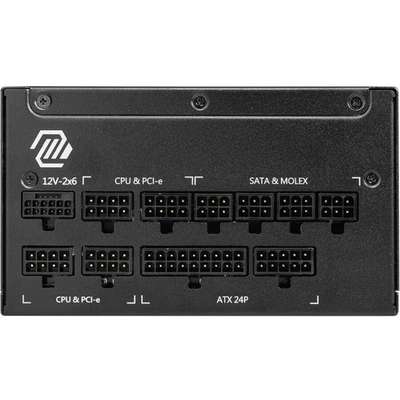

ONLY WHAT YOU NEED

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

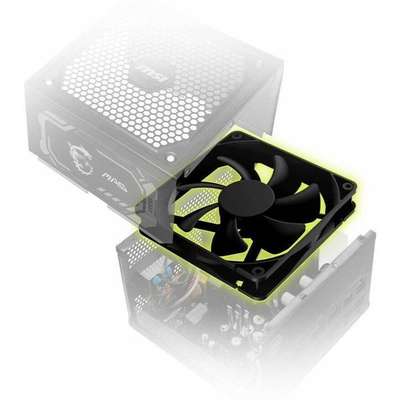

FLUID DYNAMIC BEARING

The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.

FULL BRIDGE LLC + SR + DC/DC

AĀ full-bridge LLCĀ withĀ D C/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

SKU: MAGA1000GLPCIE5 Category: Tag:
Category Attribute Details
General Information Product Name Mag A1000GL PCIE5 1000W Power Supply Unit
Manufacturer Part Number MAGA1000GLPCIE5
Product Series MAG
Product Type Power Supply
Technical Information Specification Compliance ATX 3.1
Efficiency 90%
Power Factor Correction (PFC) Active
Number of Fans 1
Protection Type Over Current, Over Temperature, Over Voltage, Over Power, Short Circuit, Under Voltage
Modular Yes
NVIDIA SLI Supported Yes
Power Description Input Voltage 120 V AC, 230 V AC
Number of +12V Rails 1
Output Voltage 5 V DC, 3.3 V DC, 12 V DC, -12 V DC, 5 V SB
Output Voltage Detail 5 V DC @ 22 A
3.3 V DC @ 22 A
12 V DC @ 83.3 A
5 V SB @ 3 A
-12 V DC @ 0.3 A
Output Current 22 A, 83.30 A, 3 A, 300 mA
Output Power 1000 W
Physical Characteristics Form Factor Internal
Height 5.9″
Width 5.9″
Depth 3.4″
