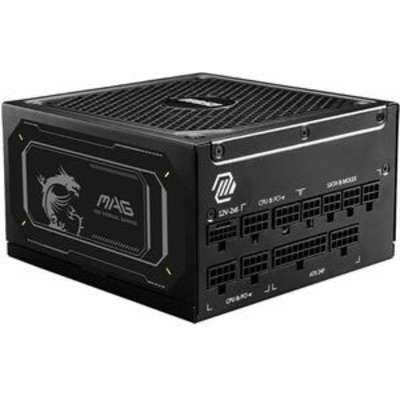

MSI Mag A1000GL PCIE5 II Power Supply Unit


  • ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
  • Supports NVIDIA® GeForce RTXā„¢40 series graphics cards
  • Fully modular design, flat cables
  • 80 PLUS Gold certified for high efficiency
  • Active PFC design
  • Protection with OVP / OCP / OPP / OTP / SCP / UVP
  • 135 mm fluid dynamic bearing fan
  • LLC half bridge topology with DC-to-DC module design

AED1,099.00

MAG UNITE AS ONE

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

ATX 3.1 Ready

The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.

ENERGY EFFICIENCY CERTIFICATION

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ONLY WHAT YOU NEED

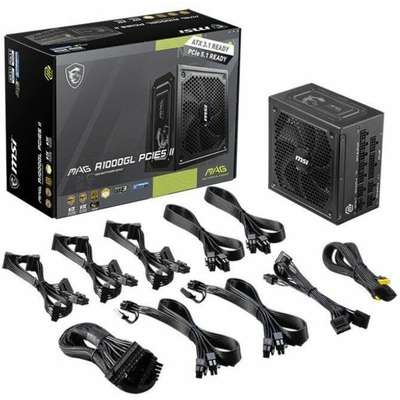

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING

The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.

Half bridge LLC + SR + DC/DC

A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

SKU: MAGA1000GLPCIE5II Category: Tag:
Category Attribute Details
General Information Product Name Mag A1000GL PCIE5 II Power Supply Unit
Manufacturer Part Number MAGA1000GLPCIE5II
Product Series MAG
Product Type Power Supply
Technical Information Specification Compliance ATX 3.1
Efficiency 90%
Power Factor Correction (PFC) Active
Number of Fans 1
Fan Bearing Type Fluid Dynamic Bearing
Fan Diameter 135 mm
Protection Type Over Current, Over Temperature, Over Voltage, Over Power, Under Voltage, Short Circuit
Modular Yes
NVIDIA SLI Supported Yes
Features Compact

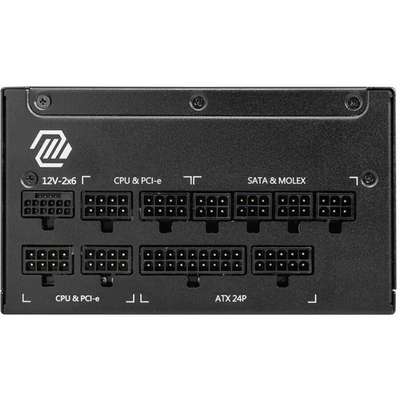

Interfaces/Ports Number of SATA Power Connectors 12
PCI Express Connector Yes
(6+2 pin) PCI Express Power Connectors 4
(4+4 pin) CPU Power Connectors 2
4-pin Molex Power Connectors 4
Power Description Input Voltage 120 V AC, 230 V AC
Output Power 1000 W
Reliability MTBF 150,000 Hours
Physical Characteristics Form Factor Internal
Height 4.7″
Width 4.7″
Depth 1″
Miscellaneous Energy Efficiency Certification 80 Plus Gold
Other Information Product Family MAG
Input Frequency 60 Hz
