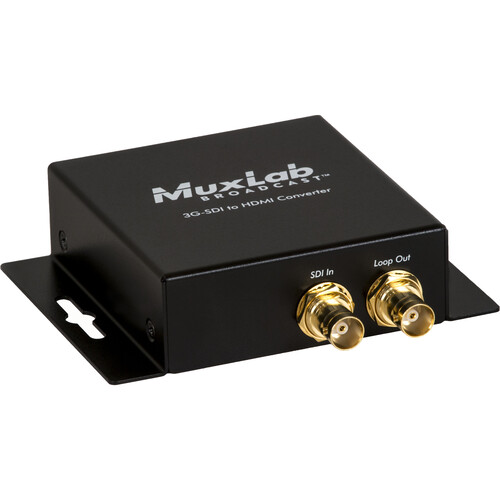

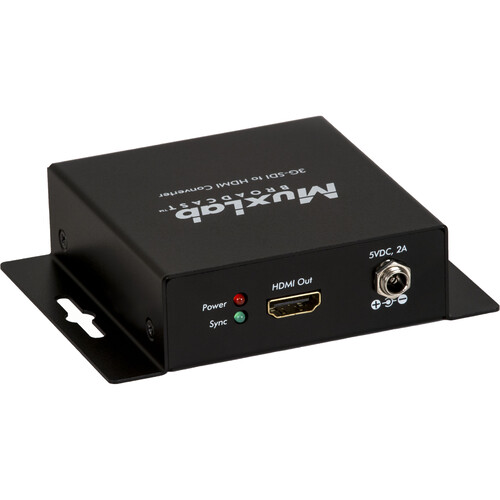

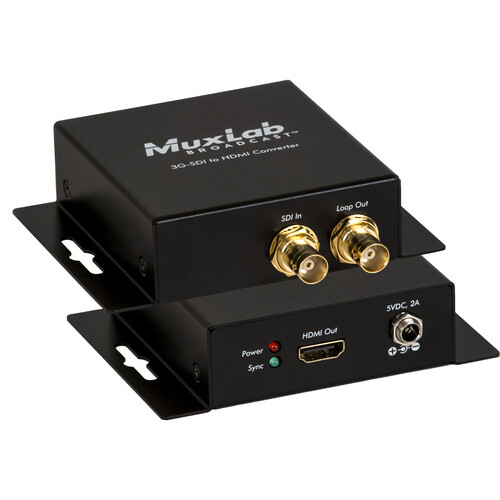

MuxLab 3G-SDI to HDMI Converter

Add to Wishlist

AED1,199.00

Add to Wishlist

The 3G-SDI to HDMI Converter from MuxLab allows you to connect an SDI equipment to an HDMI Display. It converts the SDI signal back to HDMI and supports resolutions of 480i (SD-SDI), 720p/1080i (HD-SDI), and 1080p (3G-SDI). The converter provides a low jitter and re-clocked outputs, allowing for unit daisy chain.

  • Auto 3G/HD/SD-SDI detection and conversion
  • View SDI source video on an HDMI display
  • Supports up to 1080p
  • Operating range of up to 300′ via RG59 coax
  • Low jitter & re-clocked output
  • Supports daisy chain
  • Wall mountable
  • LED diagnostics
SKU: 500717 Category: Tag:
Input Signal
3G-SDI: SMPTE-424M
HD-SDI: SMPTE 292M, 296M
SD-SDI: SMPTE 259M
Supported Resolution
3G-SDI:
1080p 60/59.94/50 Hz (4:2:2)

HD-SDI:
1080p 30/29.97/25/24/23.98 Hz
720p 60/59.94/50 Hz
1080i 60/59.94/50 Hz

SD-SDI:
NTSC (59.94 Hz), PAL (50 Hz)
Audio
Up to 8 audio channels
Detection
Auto detection of the 3G/HD/SD-SDI signal
Bandwidth
2.97 Gbps
2.975/1.001 Gbps
Signals
HDMI 1.3a and SDI protocol
Connectors
2 x Gold plated BNC 75 Ohms (female)
1 x HDMI type A receptacle
Cable Equalization
3G-SDI: Up to 300′ (90 m)
HD-SDI: Up to 500′ (150 m)
SD-SDI: Up to 1000′ (300 m)
Power Supply
110 to 240 VAC; 5 VDC power supply with interchangeable blades
Power Consumption
3 W maximum
Compliance
Regulatory: FCC, CE, RoHS
Flammability: 94V0
Enclosure
Metal
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Humidity
Up to 90% non-condensing
Dimensions
3.1 x 3.3 x 1.2″ (7.9 x 8.4 x 2.7 cm)
Weight
1.7 lb (0.78 kg)
Packaging Info
Package Weight
1.19 lb
Box Dimensions (LxWxH)
8 x 5.6 x 3″
