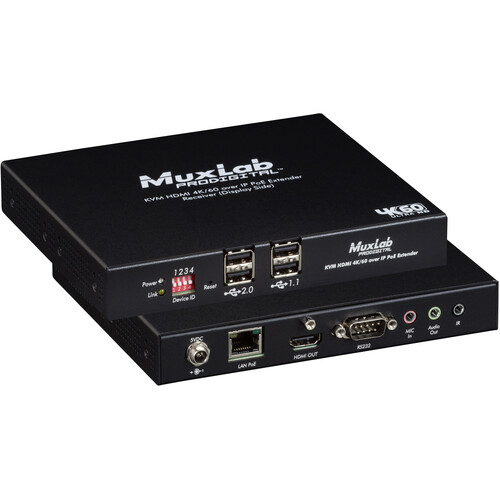

MuxLab 4K/60 KVM HDMI over IP PoE (Receiver)

Add to Wishlist
Key Features
  • Four USB Ports
  • 330′ Transmission Distance Supported
  • PoE Power
The MuxLab 4K/60 KVM HDMI over IP PoE Receiver allows HDMI & USB equipment to be connected up to 330′ over an Ethernet LAN, supports HDMI up to 4K @ 60Hz (4:4:4) via Cat5e/6 cable in multiple point-to-point and point-to- multipoint configurations.

AED4,299.99

Add to Wishlist

MuxLab 500800-RX Overview

The MuxLab 4K/60 KVM HDMI over IP PoE Receiver allows HDMI & USB equipment to be connected up to 330′ over an Ethernet LAN, supports HDMI up to 4K @ 60Hz (4:4:4) via Cat5e/6 cable in multiple point-to-point and point-to- multipoint configurations. The Receiver (500800-RX) supports PoE (PD) if used with a PoE (PSE) Ethernet Switch.

  • One operator can manage multiple servers/workstations
  • Supports HDMI up to 4K @ 60Hz (4:4:4)
  • Receiver side includes a 4-port USB hub, for KVM applications
  • Up to 330′ over Cat5e/6
  • Supports 100’s of Transmitters & Receivers depending on network bandwidth
  • Supports multiple point-to-point, and point-to-multipoint applications
  • Supports HDRPoE powered
  • Supports audio insert & audio output (TX), and audio extract & mic-in (RX)
SKU: 500800-RX Category: Tag:

MuxLab 500800-RX Specs

General
Inputs/Outputs Receiver:
1 x HDMI Type-A
1 x RJ45
1 x 1/8″ / 3.5 mm (Audio)Input
1 x 1/8″ / 3.5 mm (Audio)Output
1 x 1/8″ / 3.5 mm (IR)
1 x DE-9/DB-9 (RS232)
4 x USB-A
Maximum Transmission Distance 330′ / 100.6 m
Transmission Method CAT5e/CAT6/CAT7 Cable
HDCP Support Yes
Power
Power Consumption 8 W
Physical
Dimensions 6.4 x 5.5 x 1.0″ / 162.0 x 140.0 x 25.0 mm (Receiver)
Weight 1.5 lb / 0.7 kg (Receiver)
Packaging Info
Package Weight 1.29 lb
Box Dimensions (LxWxH) 9.2 x 6.8 x 2.2″
