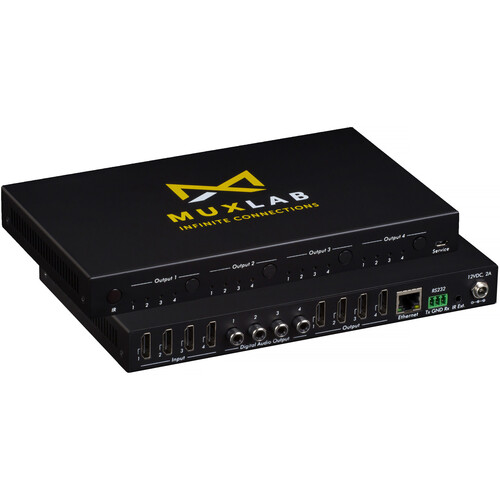

MuxLab 4×4 4K60 HDMI Matrix Switch

Add to Wishlist
  • 4 x HDMI Inputs & 4 x HDMI Outputs
  • Supports up to UHD 4K60 Video
  • Supports 12-Bit 4:2:2 HDR Color
  • HDCP 2.2 Compliant, EDID Management
  • IR Remote, RS-232, and Telnet Control
  • Web GUI Management via LAN

AED1,699.00

Add to Wishlist

Connect four HDMI sources to four HDMI displays with this 4×4 4K60 HDMI Matrix Switch from MuxLab. This pushbutton matrix switch works with Blu-ray players, media players, video streamers, cameras, set-top boxes, home theater systems, and game consoles that feature an HDMI output.

The switch provides four HDMI outputs that support up to UHD 4K60 with 12-bit 4:2:2 HDR color sampling, 1080p60 3D format, HDCP 2.2 compliance, and independent EDID management. It passes through embedded HDMI audio and supports 7.1-channel LPCM, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio, and DTS:X audio formats.

The compact design allows you to select the sources to a display using either the included IR remote control, an RS-232 serial controller via the 3-pin terminal connector, via telnet using the RJ45 LAN port, or by using the selection buttons on the front panel. The unit can be managed via a web browser GUI interface on a standard LAN.

Applications
For commercial and residential AV systems, classroom training systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems
Blu-ray players, media players/streamers, cameras, set-top boxes, home theater systems, and game consoles with HDMI output
Key Features
Supports HDMI 2.0 video up to 4K60 4:4:4 or 4K60 with 12-bit 4:2:2 HDR color sampling
Supports LPCM 7.1 CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio, and DTS:X audio
Control via IR remote, RS-232, or telnet
HDCP 2.2 compliant
EDID management
594 MHz maximum pixel clock
Manage via web GUI over LAN
SKU: 100508 Category: Tag:
Processing
Switching Type
Pushbutton
Processing Resolution
UHD 4K at 60
Color Processing
12-Bit 4:2:2
Input
Video Inputs
4x HDMI (2.0) Female
Input Video Format
HDMI / RJ45 (12-Bit 4:4:4/4:2:2/4:2:0)
UHD 4K at 60 fps
1080p at 24/30/50/60 fps
1080i at 24/30/50/60 fps
720p at 24/30/50/60 fps
576p
576i / 625 lines
480p
480i / 525 lines
Embedded Audio Input
HDMI
Output
Video Outputs
4x HDMI (2.0) Female
Output Video Format
HDMI (12-Bit 4:4:4/4:2:2/4:2:0)
UHD 4K at 60 fps
1080p at 24/30/50/60 fps
1080i at 24/30/50/60 fps
720p at 24/30/50/60 fps
576p
576i / 625 lines
480p
480i / 525 lines
Embedded Audio Output
HDMI
Connectivity
Other I/O
1x Block 3-Pin RS-232 Input/Output
1x RJ45 Control, LAN Input/Output
HDCP Support
Yes, Version 2.2
HDR Support
Yes
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Barrel (12 VDC at 2 A) Input
Power Consumption
Power Supply: 110 to 240 VAC at 2 A
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
20 to 90%
General
Certifications
CE, FCC, RoHS
Dimensions
10.6 x 4.3 x 1″ / 27 x 11 x 2.5 cm
Weight
2.4 lb / 1.1 kg
Packaging Info
Package Weight
2.585 lb
Box Dimensions (LxWxH)
12.25 x 7.05 x 3″
