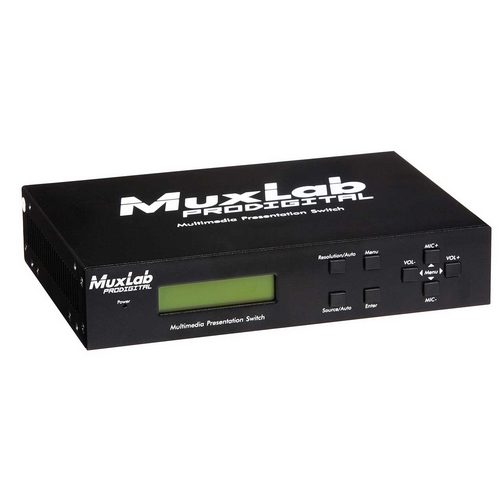

MuxLab 500435 5×1 HDMI / HDBT Multimedia Presentation Switch

Add to Wishlist
  • Supports video source auto-switching function
  • Bi-directional IR & RS232 control
  • Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
  • Output resolutions selectable (1920×1200, 1920×1080, 1600×1200, 1360×768, 1280×800, 1280×720, 1024×768)
  • Supports CEC, with commands to enable/disable this function

5,299.00 د.إ

Add to Wishlist

The MuxLab 500435 5×1 HDMI / HDBT Presentation switch is a compact scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA with audio switched following the video; 1 MIC audio input). The VGA input supports VGA, Component Video (YPbPr) and Composite Video.

The 5×1 HDMI / HDBT Presentation switch scales & switches any video signal to HDMI output and HDBaseT output for a transmission over up to 70 m of Cat5e/6 with PoC support.

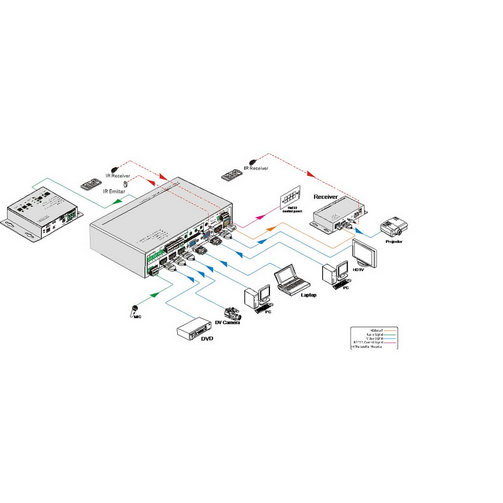

With 1 IR Sensor, 5 IR Emitters and 1 RS232 port, bidirectional IR & RS232 signals can be transmitted simultaneously between the 5×1 HDMI / HDBT Presentation switch and the HDMI Extender PoC/PoE Receiver.

Applications:
ā€¢ Computer realm
ā€¢ Monitoring
ā€¢ Conference room and conference centers
ā€¢ Corporate boardrooms
ā€¢ Hotels and hospitality rooms
ā€¢ Big screen displaying
ā€¢ Television education
ā€¢ Command & control centers
ā€¢ Smart homes

  • Features:

    • Supports video source auto-switching function
    • Bi-directional IR & RS232 control
    • Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
    • Output resolutions selectable (1920×1200, 1920×1080, 1600×1200, 1360×768, 1280×800, 1280×720, 1024×768)
    • Supports CEC, with commands to enable/disable this function
    • Compliant with HDCP
    • Supports online software upgrading
    • MIC port supports balance/unbalance signal, suppress the external noise effectively
    • 48V phantom power to support condenser microphone
    • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
    • Controllable via button, IR & RS232
    • Powerful OSD function
Category: Tag:

Specifications:

  • Environment: HDMI 1.3
  • Transmission: Transparent to the user
  • Video Bandwidth:
    – HDMI: 4.96 Gbps
    – Composite Video: 150 MHz
    – Component Video (YPbPr): 170 MHz
    – VGA: 375 MHz
  • Maximum Pixel Clock: 165 MHz
  • Video Impedance: 75Ī©
  • Video Resolution: 1920×1200, 1920×1080, 1600×1200, 1360×768, 1280×800, 1280×720, 1024×768
  • Audio Bandwidth: 20Hz to 20KHz
  • Audio Impedance:
    – Input: >10kĪ©
    – Output: 70Ī©
  • Stereo Channel Separation: >80dB @1KHz
  • Signals: HDMI 1.3a protocol and HDCP
  • Connectors:
    – 4x HDMI receptacles; Three (3) Inputs & One (1) Output
    – 2x VGA HD-15 receptacles (Inputs)
    – 1x RJ45Sfor HDBT (output)
    – 6x 3-pin terminal block (3.81 mm) for Audio; 5x Inputs& 1x Output
    – 1x 3-pin terminal block (3.81 mm) for the microphone
    – 5x IR Emitter 3.5mm Mono jacks
    – 1x IR Sensor 3.5mm Stereo jack
    – 1x 3-pin terminal block (3.81 mm) for RS232
    – 1x 2.1mm barrel jack for Power
    – 1x USB Type A
    Note: HDMI cables not included
  • Maximum Distance (Based on a maximum length of 6.6ft (2m) of HDMI cable per end):
    – Cat 5e/6: 230 ft (70 m) up to 1080p
    Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
  • Cable: 1x Cat 5e/6 or better twisted pair cable required
  • Compatible Receiver:
    – 500451-RX (No Serial Port, No PoE)
    – 500454-RX (With Serial Port, No PoE)
    – 500454-POE-RX (With Serial Port and PoE)
  • Power Supply: 1x 110-240V/12VDC power supply with interchangeable blades (locking PSU connector)
  • Power Consumption:
    – 8 Watts for the 5×1 HDMI/HDBT Presentation switch alone
    – 16 Watts when the 5×1 HDMI/HDBT Presentation provides PoE power to the HDMI Extender Receiver
  • Temperature:
    – Operating: 32Ā°F – 104Ā°F (0Ā°C – 40Ā°C)
    – Storage: -4Ā°F – 185Ā°F (-20Ā°F – 85Ā°C)
    – Humidity: Up to 95% non-condensing
  • Enclosure: Metal
  • Dimensions: 8.66″ x 1.73″ x 5.83″ (220mm x 44mm x 148mm)
  • Weight: 3.28lbs (1.49kg)
