MuxLab 500531 USB-C 2×1 18Gbps Presentation Switcher

Add to Wishlist
  • 18Gbps 2×1 switcher with USB-C inputs
  • Supports HDMI 2.0, 4K@60Hz 4:4:4, HDR 10, HDCP 2.2
  • Support automatic 4K downscaling to 1080P
  • Support 1G network pass-through
  • Guest mode control via TCP/IP and RS232

د.إ5,699.00

Add to Wishlist

The MuxLab 500531 USB-C 2×1 Presentation Switcher offers seamless switching of USB-C inputs to a single HDMI output, providing versatility and enhanced connectivity for presentation environments. It supports video resolution up to 4K@60Hz 4:4:4, delivering high-quality visuals for presentations and displays, as well as audio de-embedding on a balanced analog audio output, ensuring clear and synchronized audio playback.

The switcher features multiple methods of control, AUTO mode enables automatic switching to the first detected device source, and Manual control available through front panel buttons.RS232 commands are also supported, offering additional control flexibility.

The MuxLab USB-C 2×1 Presentation Switcher is designed to meet the demands of modern presentation setups, providing a user-friendly and feature-rich solution for enhanced connectivity and control.

  • Features:

    • 18Gbps 2×1 switcher with USB-C inputs
    • Supports HDMI 2.0, 4K@60Hz 4:4:4, HDR 10, HDCP 2.2
    • Support automatic 4K downscaling to 1080P
    • Support 1G network pass-through
    • Guest mode control via TCP/IP and RS232
    • Provides USB-C charging up to 100W
    • Balanced analog audio for output audio de-embedding
    • Smart EDID capabilities
Category: Tag:

  • Specifications:

    • Video Input: 2x USB Type-C
    • USB-C Input Resolution: Up to 4K@60Hz 4:4:4
    • Video Output: 1x HDMI Type A Female
    • HDMI 2.0 Output Resolution: Up to 4K@60Hz 4:4:4
    • HDCP: Support Version 2.2
    • USB: USB Version 3.2 gen2 cable recommended
    • HDR 10: Supported
    • CEC: Supported
    • HDP: Supported
    • Audio Output: 1x AUDIO OUT (Stereo balanced L/R)
    • Audio Output Connector: 1x 5-pin terminal block
    • HDMI Audio Format: LPCM 7.1 audio, Dolby AtmosĀ®, DolbyĀ® TrueHD, Dolby DigitalĀ® Plus, DTS: Xā„¢, and DTS-HDĀ® Master Audioā„¢ pass-through
    • Control:
      – 1x EDID
      – 1x RS232
      – 3x USB
      – 1x IR
    • Control Connectors:
      – 1x 4-pin DIP switch
      – 1x 3-pin terminal block
      – 1x Type-C USB 3.2 gen2
      – 2x Type-A USB 3.2 gen2
      – 1x 3.5mm interface
    • HDMI 2.0 Cable Length: 4K@60Hz 4:4:4 ā‰¤ 5m, 4K@60Hz 4:2:0 ā‰¤ 10m, 1080P ā‰¤ 15m
    • Bandwidth: 18Gbps
    • Operating Temperature: 32Ā°F – 131Ā°F (0Ā°C – 55Ā°C)
    • Storage Temperature: -13Ā°F – 158Ā°F (-25Ā°C – 70Ā°C)
    • Power Consumption: 112W Max
    • Power Supplu: DC 24V 6.5A
    • Dimensions: 8.98″ x 0.96″ x 5.31″ (228mm x 24.5mm x 135mm)
    • Weight: 1.79lbs (810g)

  • Item Includes:

    • 1x USB-C 2×1 Presentation Switcher
    • 1x 100~240VAC 50/60Hz 24V-6.5A Power adapter
    • 2x Mounting Ears with 4 Screws
    • 1x 5-pin Terminal Block
    • 1x RS232 Cable (3-pin terminal block to DB9)
    • 1x IR emitter
    • 4x Rubber feet

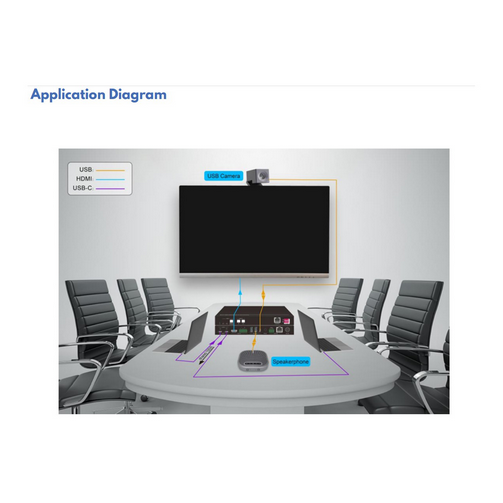

  • Applications:

    • Ideal for conference room setups where multiple presenters may use different USB-C devices for presentations.
    • Enhances connectivity in meeting spaces by accommodating various USB-C devices.
    • Provides a versatile solution for corporate boardrooms where executives may use different USB-C devices for presentations.
    • Supports training sessions and workshops where trainers may use different USB-C-enable devices
