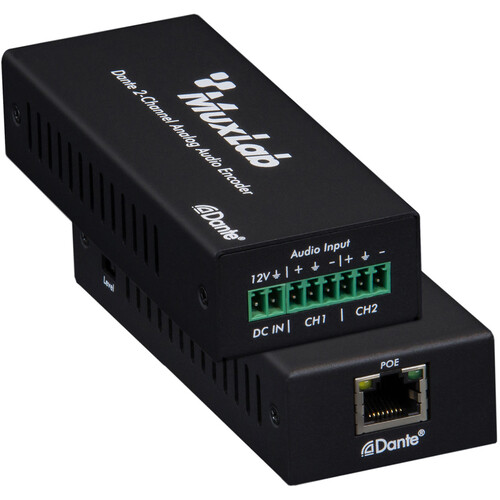

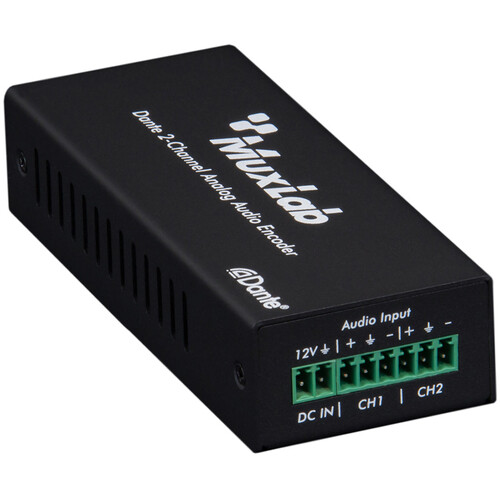

MuxLab Dante 2-Channel Analog Audio Encoder

Add to Wishlist
Key Features
  • Analog Audio to Dante Encoder
  • Supports 2-Channel (Bal/Unbal) Audio Out
  • Supports 44.1, 48, 96 kHz (24-Bit)
  • Gain: +18 dBu, 0 dBu, and -10 dBV
  • PoE from Network Switch or 12 VDC PSU
  • Supports AES67 RTP Audio Transport
  • Includes Two Phoenix Block Connectors

AED1,499.00

Add to Wishlist

MuxLab 500551 Overview

Connect analog audio equipment to a Dante network with the MuxLab Dante 2-Channel Analog Audio Encoder, a device that converts the transmission of full-range (20 Hz to 20 KHz) balanced or unbalanced two-channel analog audio signals to digital to be used with Dante-compatible equipment. It can be powered using either PoE from any PoE network switch or via local with a 12V power supply. The Dante 2-Channel Analog Audio Encoder includes two Phoenix block connectors.

At a Glance
  • Interface analog audio equipment to Dante audio equipment
  • Supports balanced/unbalanced 2-ch analog audio output
  • Audio sampling rate supports 44.1, 48, and 96 kHz (24-bit)
  • Audio output supports 3-level gain adjustment: +18 dBu, 0 dBu (default), and -10 dBV
  • Supports 12 VDC power supply and PoE function (IEEE802.3af Class 0)
  • Supports AES67 RTP audio transport
SKU: 500551 Category: Tag:
Network Bandwidth
100 M
Audio Format
PCM 2.0 44.1, 48, 96 kHz, Up to 24-Bit
Transmission Distance
328.1′ / 100 m (Cat 6 / 6A)
Control Method
Dante Controller
Input / Output Connectors

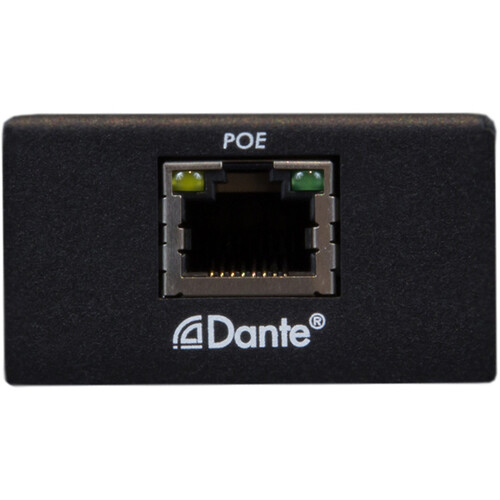

Output: Dante, RJ45, PoE
Power: 2-Pin Phoenix

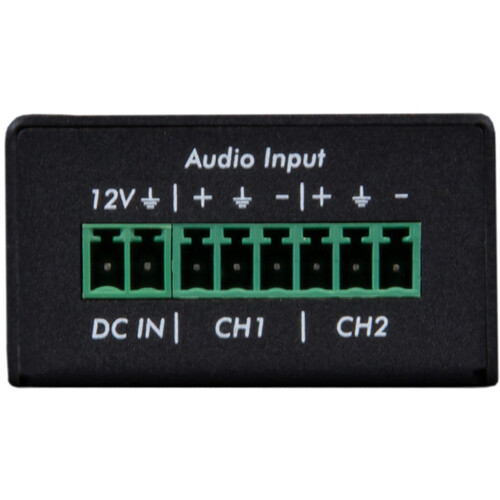

Input: 6-Pin Phoenix (Audio)
Enclosure
Metal Housing
Power Supply
12 VDC PSU
PoE Input: IEEE802.3af Class 0
Power Consumption
1.2 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
20 to 90% RH (No Condensation)
Dimensions (L x W x H)
4.7 x 1.9 x 1″ / 12.0 x 4.7 x 2.6 cm
Weight
6.6 oz / 186 g
Packaging Info
Package Weight
0.565 lb
Box Dimensions (LxWxH)
8 x 3.7 x 2.1″
