MuxLab Dante 2-Channel USB Audio Encoder/Decoder

Add to Wishlist
Key Features
  • Encodes 2-Channel USB Audio to Dante
  • Decodes Dante to 2-Channel USB Audio
  • Compliant with USB 2.0
  • Compliant with USB Audio Device Class
  • Supports 44.1, 48, and 96 kHz (24-Bit)
  • Powered by USB 5V or PoE
  • Supports AES67 RTP audio trans

AED1,499.00

Add to Wishlist

MuxLab 500550 Overview

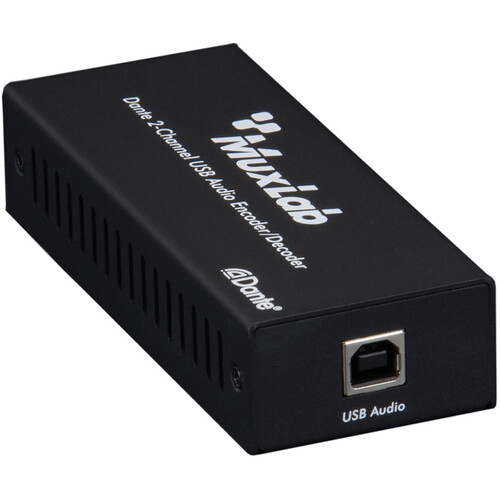

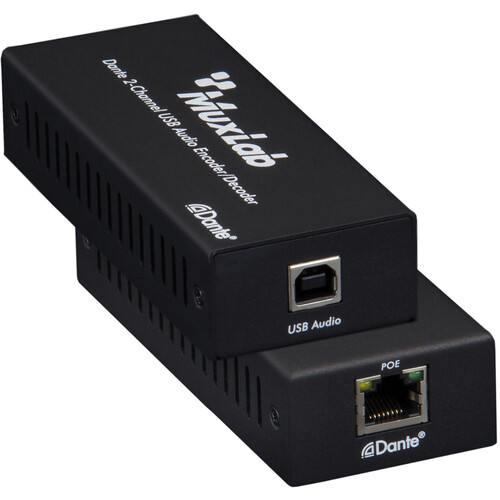

Simplify your audio setup with the MuxLab Dante 2-Channel USB Audio Encoder/Decoder, a portable converter that is designed to both encode 2-channel USB audio to a Dante digital signal and decode a Dante signal to 2-channel USB audio. This compact and easy to carry device is plug & play and can be powered using PoE from any PoE network switch or via 5V from the USB device.

At a Glance
  • Compliant with USB 2.0 full-speed operation
  • Compliant with USB audio device class
  • Encodes USB audio to Dante digital signal
  • Decodes a Dante digital signal to USB audio
  • Audio sampling rate supports 44.1, 48, and 96 kHz (24-bit)
  • Support USB 5V power supply and PoE function (IEEE802.3af class 0)
  • Supports AES67 RTP audio transport
SKU: 500550 Category: Tag:
Network Bandwidth
100 M
Output Interface
PCM 2.0 44.1, 48, 96 kHz, up to 24-Bit
Transmission Distance
328.1′ / 100 m (Cat 6 / 6A)
Input / Output

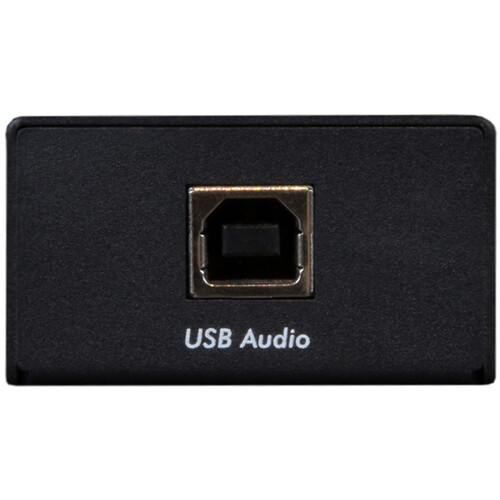

USB-B

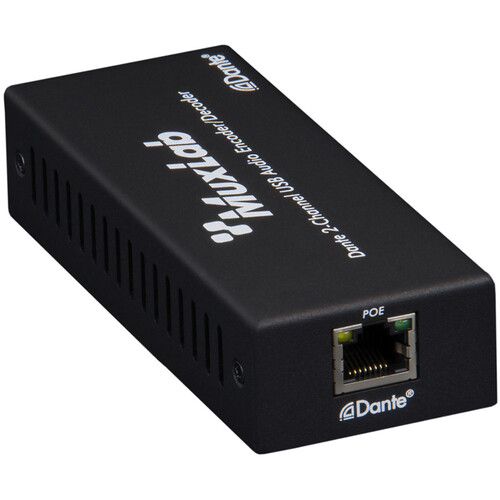

Dante (RJ45 Connector, PoE)
Enclosure
Metal Housing
Power Supply
USB Input: 5 V-500 MA
PoE Input: IEEE802.3af Class 0
Power Consumption
1 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
20 to 90% RH (No Condensation)
Dimensions (L x W x H)
4.7 x 1.9 x 1″ / 12.0 x 4.7 x 2.6 cm
Weight
6.6 oz / 186 g
Packaging Info
Package Weight
0.715 lb
Box Dimensions (LxWxH)
8.1 x 3.5 x 2.3″
