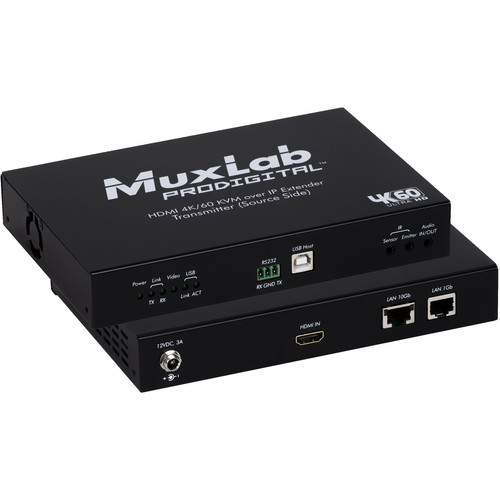

MuxLab HDMI 4K/60 KVM over IP Extender Transmitter

Add to Wishlist
Key Features
  • SDVoE “Full Stack Solution” Technology
  • Server/Workstation to Numerous Operators
  • 328′ UHD 4K/60 4:4:4 Cat 5e/6 Extension
  • RS-232 Support; 2-Way IR
The MuxLab HDMI 4K/60 KVM over IP Extender Transmitter is based on SDVoE technology and extends a server/workstation with 4K support to one or more operators, who in turn can manage the server/workstation in a KVM workflow.

AED6,929.99

Add to Wishlist

MuxLab 500760 Overview

The MuxLab HDMI 4K/60 KVM over IP Extender Transmitter is based on SDVoE technology and extends a server/workstation with 4K support to one or more operators, who in turn can manage the server/workstation in a KVM workflow. The transmitter features an HDMI 2.0 input and allows up to a 328′ UHD 4K/60 extension over Cat 5e/6 cabling. It’s compatible with the corresponding HDMI 4K/60 KVM over IP Extender Receiver, sold separately. Transmission is with zero latency. The signal can be sent uncompressed at 4K/60 4:2:0 or with light, visually lossless compression at 4:4:4 sampling.

By setting up a transmitter per server/workstation and a receiver at each operator, with each pair connected over Cat 5e/6 from a 10-Gigabit Ethernet switch, up to hundreds of servers/workstations can be managed, depending on network bandwidth. The operator managing everything can connect a remote monitor, keyboard, mouse, and powered audio speakers on the receiver end to any of the servers/workstations in the setup. The transmitter also has a USB Type-B port and supports Smart Whiteboard applications over both USB and HDMI. It also offers 2-way IR for remote management of endpoint devices and provides RS-232 support via a 3-pin terminal block.

Two RJ45 ports are provided. One is a 10-Gigabit port and the other a 1-Gigabit port for connecting network devices. One of the supported optional control options is the MuxLab Pro Digital Network Controller, which is designed to simplify centralized configuration and control, and which allows for connectivity management from the MuxControl iOS/Android app as well as 3rd-party mobile apps.

Note:

When the transmitter is installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
Key Features
  • Based on SDVoE technology, which provides a “full-stack solution”, offering a solution at every layer of a 7-layer OSI stack
  • Extend a server/workstation with 4K support to one or more operators
  • HDMI 2.0 input; up to a 328′ UHD 4K/60 extension with zero latency over Cat 5e/6 cabling
  • Up to hundreds of servers/workstations can be managed by a single operator in a workflow with a 10-Gigabit Ethernet switch
  • Send uncompressed 4K/60 4:2:0 or lightly compressed 4K/60 4:4:4
  • Smart Whiteboard support over HDMI and USB
  • 2-way IR for remote management of endpoint devices
  • RS-232 support
SKU: 500760-TX-KVM Category: Tag:

MuxLab 500760 Specs

General
Inputs/Outputs Transmitter:
1 x HDMI Type-AInput
2 x RJ45
2 x 1/8″ / 3.5 mm (IR)
1 x 1/8″ / 3.5 mm (Audio)Input
1 x USB-B 2.0
1 x Block (RS232)
Supported Resolutions 3840 x 2160 @ 60 Hz
Maximum Transmission Distance 328.08′ / 100 m
Transmission Method CAT5e/CAT6 Cable
HDCP Support Yes, Version 2.2
Audio Channels Supported 2-Channel Stereo
RS232 Data Rate 115.2 kbps
Performance
Bandwidth 594 MHz
Frequency Response 38 to 56kHz
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.5 A
Power Consumption 16 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 10 to 90%
Physical
Certifications CE, FCC, RoHS
*as per Manufacturer
Dimensions 7.7 x 5.2 x 1.3″ / 19.5 x 13.2 x 3.3 cm
Packaging Info
Package Weight 3.09 lb
Box Dimensions (LxWxH) 9.8 x 7.8 x 3.9″
