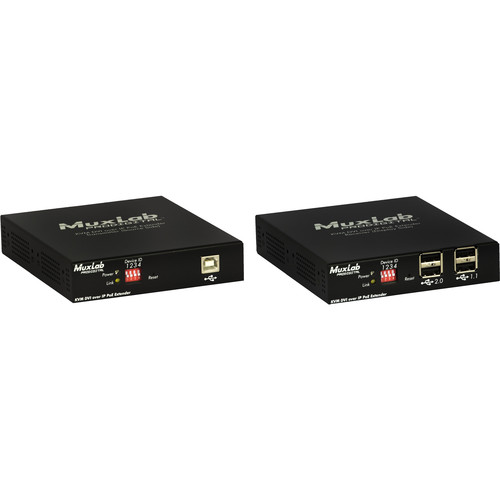

MuxLab KVM DVI over IP PoE Extender Transmitter (330′)

Add to Wishlist

AED1,999.99

Add to Wishlist

MuxLab 500771 Overview

The KVM DVI over IP PoE Extender allows DVI & USB equipment to be connected over an Ethernet LAN, supporting high resolutions.

Key Features
  • One operator can manage multiple servers/workstations
  • Supports multiple point-to-point, and point-to-multipoint applications
SKU: 500771-TX Category: Tag:

MuxLab 500771 Specs

General
Device Type KVM / audio / USB extender
Form Factor External
Networking
Connectivity Technology Wired
Max Resolution 1920 x 1200 @ 60 Hz
Max Video Bandwidth 300 MHz
Max Transfer Distance 328 ft
Status Indicators Power, link/activity, diagnostic
Features Power over Ethernet (PoE), built-in DIP switch, 1080p resolution support
Compliant Standards IEEE 802.3af, DVI 1.0, HDCP 1.4
Expansion / Connectivity
Interfaces 1 x DVI-D (input) female
1 x USB – Type B female
1 x network – RJ-45 female
1 x audio (input) – mini jack female
1 x audio (output) – mini jack female
Miscellaneous
Compliant Standards FCC, RoHS, UL 94 V-0
Power
Power Over Ethernet (PoE) PoE
Power Consumption Operational 2.85 Watt
Dimensions & Weight
Width 4.4 in
Depth 5.1 in
Height 1 in
Weight 23.98 oz
Manufacturer Warranty
Service & Support Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 – 95% (non-condensing)
Packaging Info
Package Weight 1 lb
Box Dimensions (LxWxH) 8 x 6 x 2.3″
