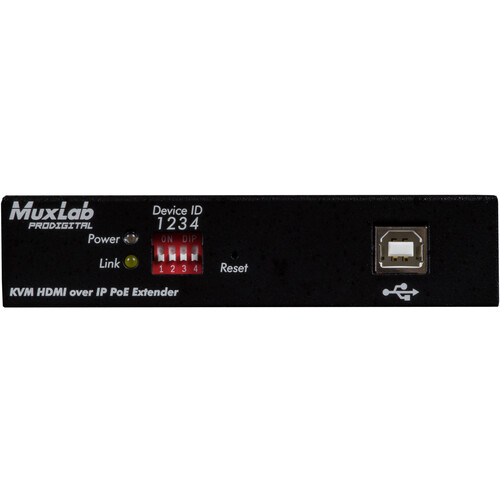

MuxLab UHD 4K KVM HDMI-over-IP PoE Extender Transmitter

Add to Wishlist
Key Features
  • Extend HDMI/USB Signals via IP
  • Transmit up to 4K60 HDR Video up to 328′
  • Powered via PoE on Supported Network
  • HDMI and USB Type-B Inputs
  • HDCP 2.2, Cat 5e/6 Cable Support
  • 3.5mm Audio Input and Output

د.إ2,499.99

Add to Wishlist

Transmit 4K60 video with companion KVM commands up to 328′ away with the UHD 4K KVM HDMI-over-IP PoE Extender Transmitter from MuxLab. The transmitter can transmit video directly to the separately available 500772-RX receiver on a local LAN, and it is powered via PoE on a supported network or by an optional power supply.

MuxLab 500772-TX Overview

Transmit 4K60 video with companion KVM commands up to 328′ away with the UHD 4K KVM HDMI-over-IP PoE Extender Transmitter from MuxLab. The transmitter can transmit video directly to the separately available 500772-RX receiver on a local LAN, and it is powered via PoE on a supported network or by an optional power supply. The transmitter will fit right into your IT server room, media center, meeting room, or classroom environment where video distribution and central keyboard control is used.

The transmitter supports up to UHD 4K60 4:2:0 HDMI input, and it supports HDR video. The USB Type-B input allows you to transmit keyboard and mouse control over the same Ethernet cable to the receiver. It supports embedded HDMI audio and also has an independent 3.5mm audio input to embed analog audio, and it features a 3.5mm audio output for monitoring. It also supports point-to-multipoint and multipoint-to-multipoint configurations when using an Ethernet switch. It can deliver a 4K signal up to 328′ over a Cat 5e/6 (or greater) cable.

Key Features
One operator can manage multiple servers/workstations
Supports video input/output up to 4K30 4:4:4 and 4K60 4:2:0
Transmit video up to 330′ over Cat 5e/6 cable
One HDMI input and USB Type-B input for USB output from keyboard and mouse
Supports hundreds of transmitters and receivers, depending on network bandwidth
Supports multiple point-to-point and point-to-multipoint applications
Supports HDR video
PoE powered, or it can utilize an optional power adapter
Supports audio embedding and audio output
SKU: 500772-TX Category: Tag:

MuxLab 500772-TX Specs

General
Inputs/Outputs Transmitter:
1 x HDMI Type-A (Video) FemaleInput
1 x USB-B (Management) FemaleInput
1 x RJ45 (Ethernet) FemaleOutput
1 x 1/8″ / 3.5 mm (Audio) FemaleInput
1 x 1/8″ / 3.5 mm (Audio) FemaleOutput
Supported Resolutions 3840 x 2160 @ 60 Hz
3840 x 2160 @ 30 Hz
Maximum Transmission Distance 328.1′ / 100 m
Transmission Method CAT5e/CAT6/CAT7 Cable
HDCP Support Yes, Version 2.2
Video Channel 1-Channel
Audio Channels Supported 2-Channel Stereo
Performance
Bandwidth 300 MHz
Power
Power Consumption 6 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 185°F / -20 to 85°C
Operating Humidity 95%
Physical
Certifications CE, FCC, RoHS
*as per Manufacturer
Dimensions 5.1 x 4.4 x 1.0″ / 129.0 x 112.0 x 25.0 mm
Weight 1.5 lb / 680.0 g (Transmitter)
Packaging Info
Package Weight 0.965 lb
Box Dimensions (LxWxH) 8 x 6 x 2.2″
