myMix Install Networked Personal Mixer and Multi-Track Recorder

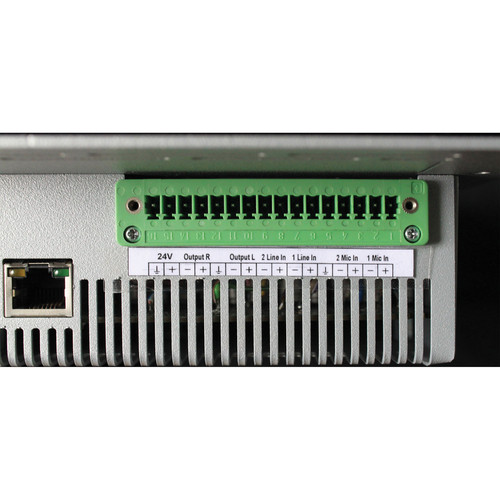

The myMix Install Networked Personal Mixer and Multi-Track Recorder from myMix is an audio mixing system which allows each user to create a local mix, whether monitoring with headphones or driving a speaker system. It has two combination mic/line inputs, balanced stereo outputs, and a headphone jack. Additional signals can be brought into the system by other myMix devices or using the IEX-16L, 16-channel input expander (not included).

The myMix system does not require a master unit. The unit can be connected using Ethernet CAT5 cabling and a Fast Ethernet (100 Mb/s) switch. Once the unit is connected to the network, each input source such as a microphone or instrument can be available on all myMix units, allowing a user to create an individual mix without affecting others on the network. myMix can record up to 18 tracks of multi-track audio to an optional SD or SDHC card. Two tracks cover the stereo mix and up to 16 tracks are sourced directly. All audio files are recorded in 24-bit, 48 kHz time-stamped WAV files. Sessions can be played back and remixed from an SD card instead of using the network channels. The myMix Install unit can be desk mounted, or wall mounted when using the WMB01 Wall-Mount Box (sold separately).
