Nady 401X Quad 4-Channel VHF Wireless Microphone System

Add to Wishlist

1,399.00 د.إ

Add to Wishlist
Key Features
  • VHF Frequency Channels A/B/D/N
  • Up to 4 Microphones Simultaneously
  • 4x WLT Bodypack Transmitters
  • 4x Omnidirectional Lavalier Microphones
  • Independent Level Controls
  • 4x Discrete XLR outputs
  • Dual Front-Mounted Antennas
  • Rackmountable Receiver Chassis

Nady 401X Quad Overview

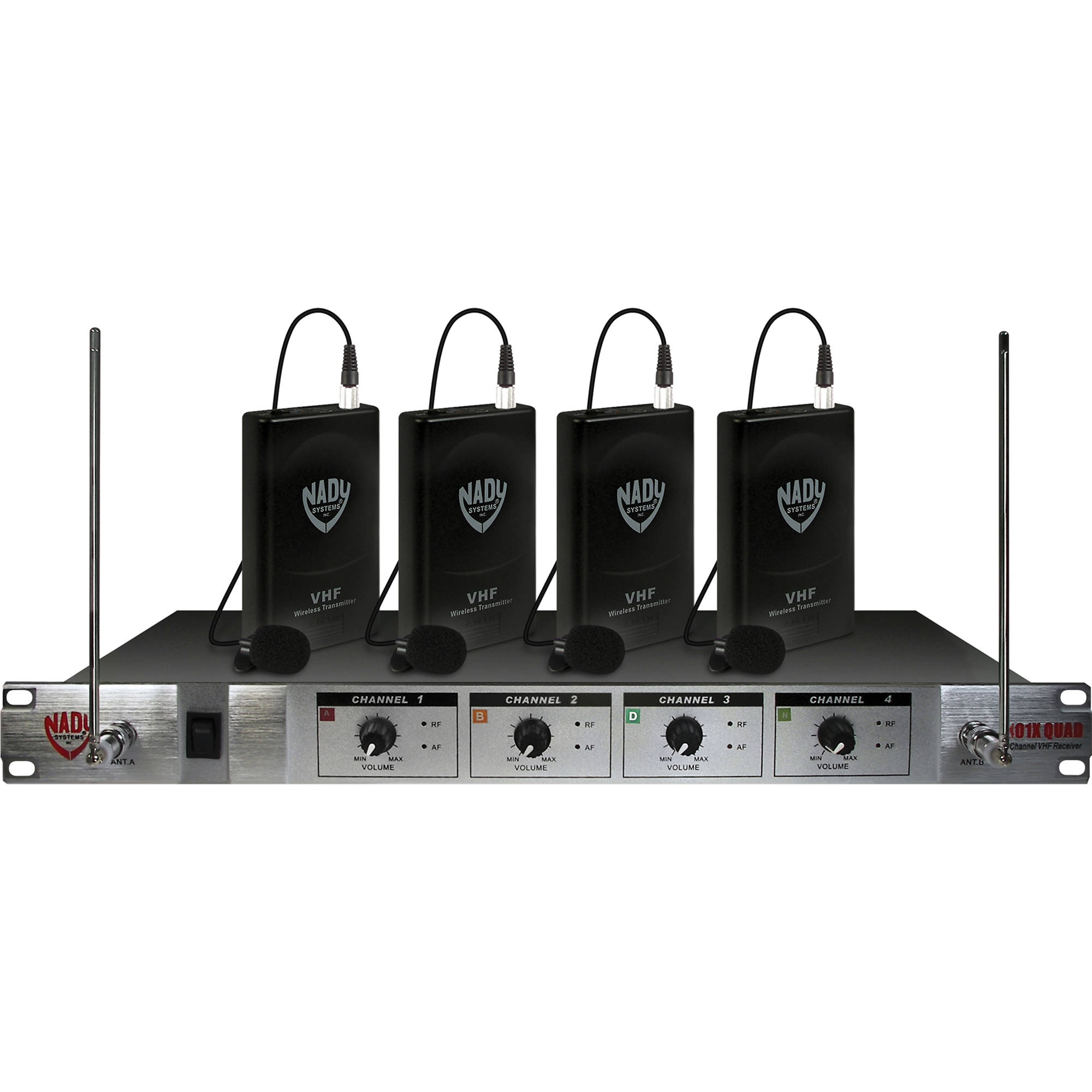

The Nady 401X Quad 4-Channel VHF Wireless Microphone System is a cost effective, multi-microphone solution that supports simultaneous operation of up to 4 wireless microphones. The 401X Quad receiver features 4 discrete audio channels with level control and an XLR output per channel. Adjust microphone level separately using the level controls on the front panel. This system includes 4 WLT bodypack transmitters with omnidirectional lavalier microphones and on/off/standby switches. The Nady 401X Quad is ideal for restaurants, bars, schools, presentations, small performances, houses-of-worship and more.

Four independent VHF receivers in one convenient, rugged, all-metal single-rack space housing
Front dual antenna jacks for either onboard or remote antennas

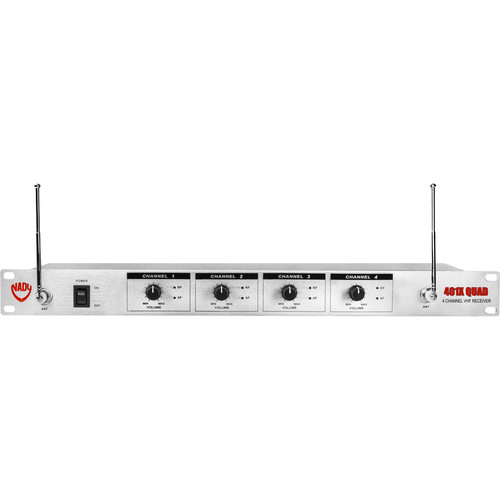

Front panel Power On/Off switch, plus Power On LED, TX On and AF signal level LED displays

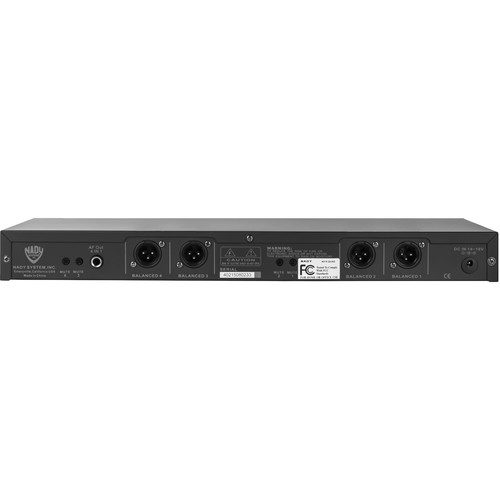

Rear panel individual XLR output jacks; volume and RF mute controls for each of the four channels; 4-channels-mixed AF out ¼” phone jack
Noise-free transmitter On/Off operation
High performance-unmatched transparent audio with 120 dB dynamic range and up to 250+ ft. optimum line-of-sight operation
The system includes four WLT bodypack transmitters. Handheld and instrument transmitters are available, and any combination may be used simultaneously.

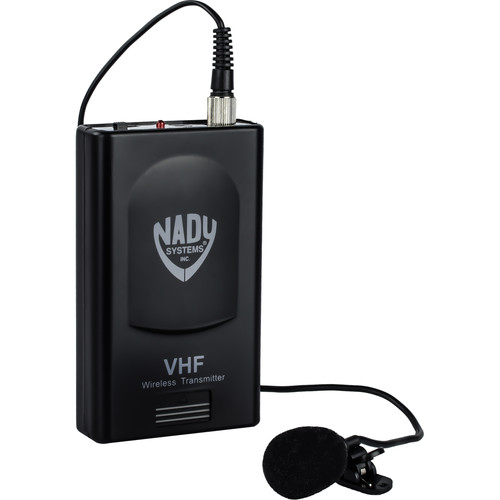

WLT Bodypack Transmitters

The WLT Bodypacks in this system feature LM-14O omnidirectional microphones. Optional unidirectional lavalier (LM-14U), and a headworn microphone are also available.
Off/Standby/On switch allows convenient audio muting with the transmitter on
Input level adjust
Locking 3.5mm jack
LED status indicator flashes once for unit on, lights steady for low-battery alert
SKU: 401XQ LT/O-A/B/D/N Category: Tag:

Nady 401X Quad Specs

System
Type of System 4-Channel VHF Bodypack
RF Carrier Frequency Range 170-230MHz (Factory installed Channels)
Approx. Working Range 250 feet typical – up to 500+ feet optimum line-of-sight
Overall Frequency Response 30 – 18kHz (-3dB)
# Of Channels 4 Discrete
A / 171.905MHz, B / 185.150MHz, D / 209.150MHz, N / 197.150MHz
Receiver
Type of Receiver 4-Channel VHF Rackmountable
Type of Outputs 4x XLR
Power Requirements 16V @ 800mA, nominal, AC/DC adapter supplied
Display 1 Power ON LED, 4 AF LED, 4 TX ON LED
Mounting Options 19″ Rackmoutable
Antenna Type Dual female BNC connectors
Dimensions 1.75 x 7.5 x 16.5″ (4.4 x 19 x 42cm)
Weight 4.5 lbs (2 kg)
Transmitter
Type of Transmitter WLT Bodypack
Type of Microphone Lavalier
Polar Pattern Omnidirectional
Battery Type/Approx. Life 9V Alkaline
Up to 20 hours
Mute Switch OFF/STANDBY/ON switch
RF Output 50mW (Max. allowed by FCC)
Display Unit “ON” (single flash), Low Battery Alert (steady)
Dimensions 4.1 x 2.4 x 0.8″ (10.4 x 6.1 x 2.0cm)
Weight 3.6oz (101g)
Packaging Info
Package Weight 7.95 lb
Box Dimensions (LxWxH) 21 x 12.1 x 5″
