Nady DKW-8U Wireless Microphone System


499.00 د.إ

Key Features
  • UHF Channel 17
  • Single-Channel UHF
  • BT-8U Bodypack Transmitter
  • Cardioid Lavalier Microphone

Nady DKW-8UĀ Overview

TheĀ Nady DKW-8U Wireless Microphone SystemĀ is a low-cost, yet stable UHF wireless microphone solution for small venues, restaurants, bars, presentations, DJs, houses-of-worship and more. The DKW-8U operates on a single channel UHF frequency and avoids the crowded, VHF occupied airspace.

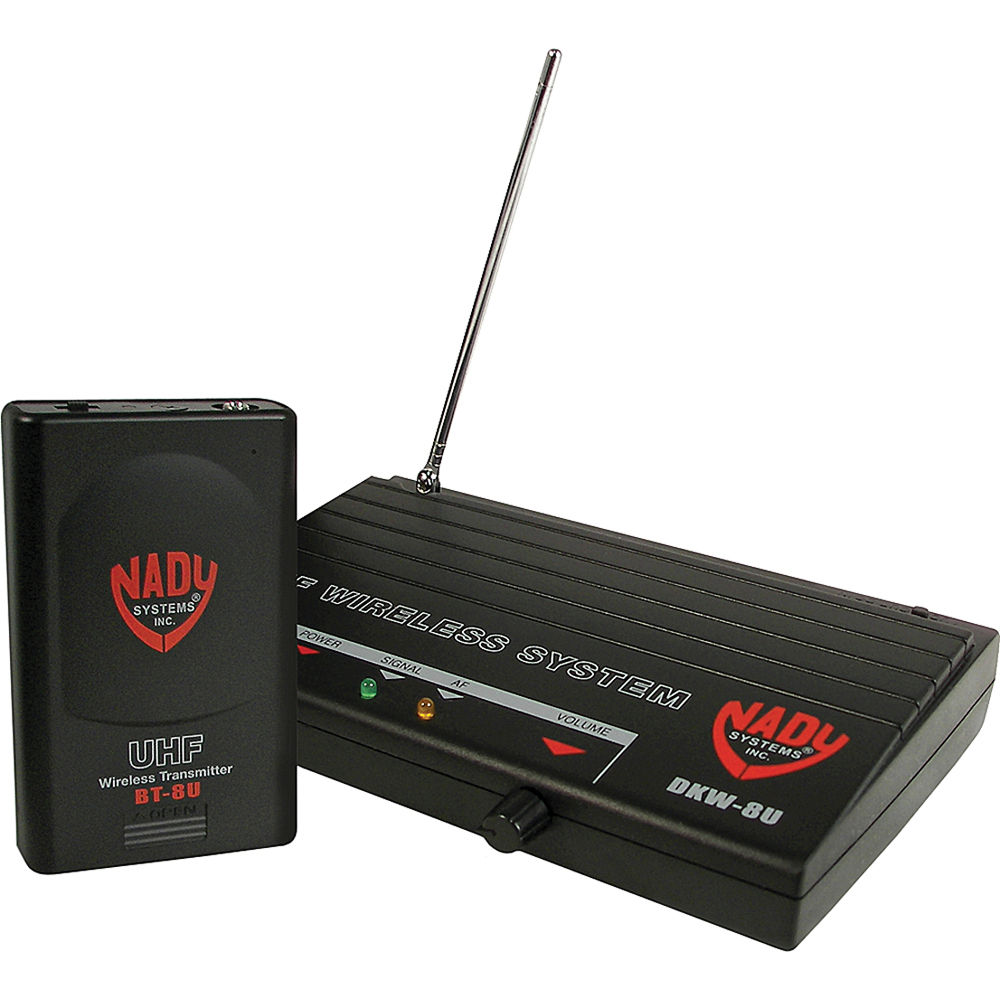

The system includes a low-profile receiver with a single antenna, and 1/4″ phone audio output, and a bodypack transmitter with a lavalier microphone. The lavalier microphone provides hands-free microphone operation for presentations, interviews, etc. The DKW-8U features up to 150′ operating range (typical conditions).

Unprecedented value in a single-channel UHF wireless mic/instrument system with interference-free operation in any application or locale on select UHF frequencies
Compact and easy to operate-simply plug in place of your wired microphone or instrument cable
All the advantages and freedom of wireless operation without cumbersome cords
Excellent high-fidelity audio
Nady’s proprietary companding circuitry for an industry-best 120dB dynamic range, and the clearest, most natural sound available
150+ ft. typical operating range, up to 300+ ft. line-of-sight; Power, Signal, AF LED status indicators; adjustable Audio Output Level for optimal sound; ¼” phone jack output for easy connection to sound system

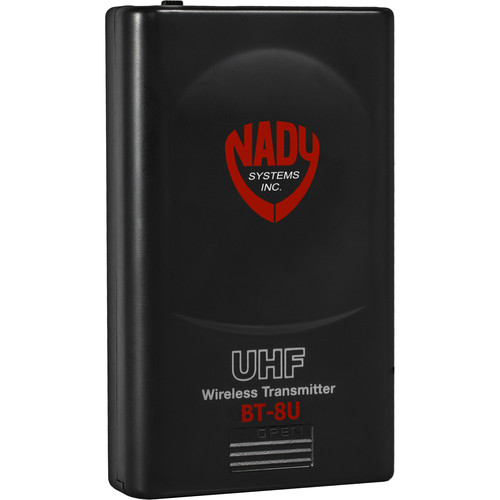

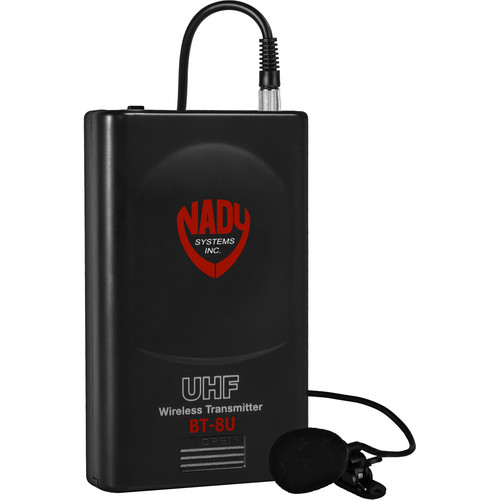

BT-8U Bodypack Transmitter

This system includes the LT lavalier microphone. The Nady HT headset microphone, and GT instrument cable (guitar cable) are optional
Input volume control for proper level adjust for headworn or lavalier operation
Off/Standby/On switch allows convenient audio muting while transmitter on
Status LED indicator flashes once for unit on, lights steady for low-battery alert
Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
Easily accessible Input Level Adjust for optimum sound (HM/LT operating modes only)
Lightweight, rugged ABS housing with integral antenna
Uses one 9V alkaline or NiMH battery

Nady DKW-8UĀ Specs

System
Type of System Single Channel UHF
RF Carrier Frequency Range UHF, choice of single frequencies on separate bands,902-928MHz and 944-952MHz
Approx. Working Range Up to 250 ft. typical (depending on site conditions);up to 500+ feet optimum line-of-sight
Overall Frequency Response 50Hz – 16kHz, – 3dB
Total Harmonic Distortion (THD) < 1% RF Carrier Frequency Range UHF, choice
Frequency Stability +/- 0.005%, crystal controlled
Modulation FM +/-20kHz normal

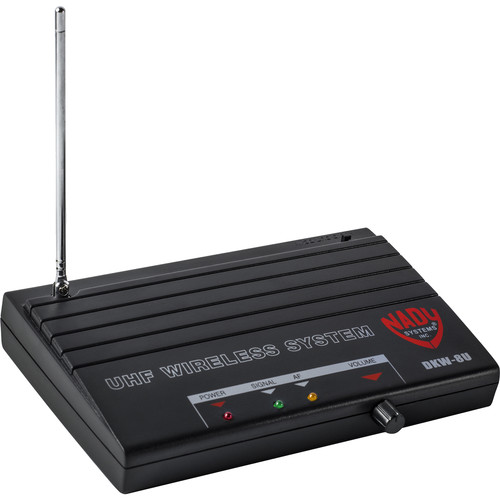

Receiver

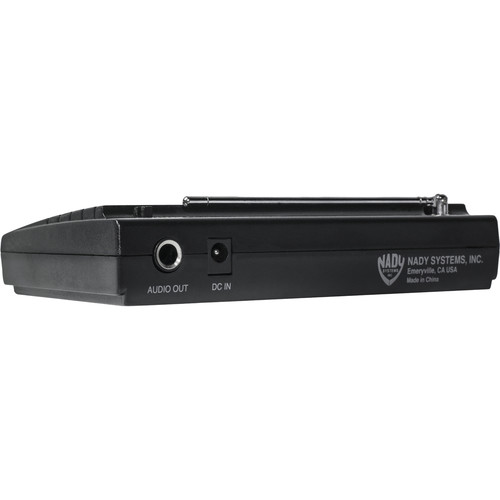

Type of Outputs Unbalanced Out: 1/4″ (6.3mm) jack
Power Requirements DC 14V @ 400 mA, DC adapter included
Display Power ON, Signal, AF LEDs
Antenna Type 4″ (9.5cm), Single section telescopic
Dimensions 6.88 x 4.0 x 1.5″ (17.5 x 10.2 x 3.8cm)
Weight 7.6 oz (0.22kg)
Transmitter
Type of Transmitter LT-8U Bodypack Transmitter
Type of Microphone LT Lavalier
Polar Pattern Cardioid
Battery Type/Approx. Life Single 9V Alkaline or NiMH Battery
Mute Switch ON/STANDBY/OFF, INPUT LEVEL CONTROL, internal GT/HM/LT switches
Display Single LED, flash once “ON”, LOW BAT “Steady ON”
Dimensions 4.25 x 2.5 x 1.0″ (10.8 x 6.4 x 2.5cm)
Weight 3.1oz (88g) without battery
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 12.2 x 4.7 x 4.2″
