Nady DW-11 HM3 Digital Wireless Microphone System (Headset Mic)

Add to Wishlist

599.00 د.إ

Add to Wishlist
Key Features
  • Streamlined Operation
  • 24-Bit Digital Conversion
  • UHF 900 MHz Band
  • Front-Panel LED Display for Monitoring

Nady DW-11 Overview

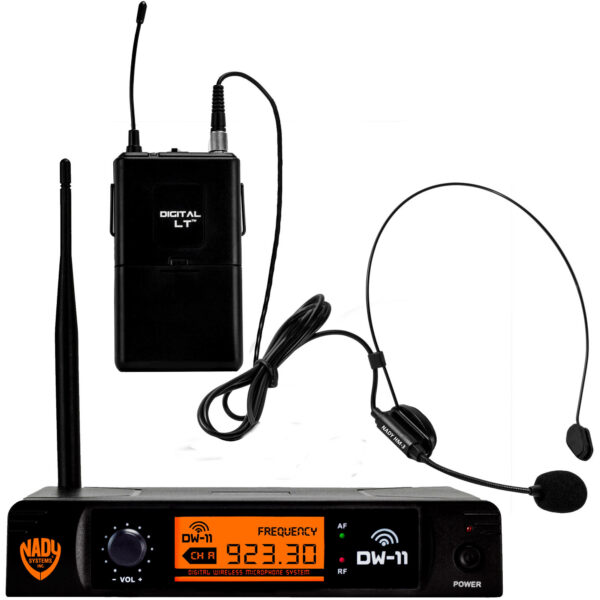

The headset mic-equipped DW-11 HM3 Digital Wireless Microphone System from Nady Systems is a streamlined wireless system with 24-bit conversion that will be suitable for performances, karaoke, and other public address applications. It provides a 48 kHz/24-bit digital conversion for audio clarity with frequency response across the entire audible range (20 Hz to 20 kHz).

The included bodypack and headset mic provide a line-of-sight operation range of up to 300â¿¿ and operates in the UHF 900 MHz band. The front-panel LED display allows you to monitor audio level from the transmitter and signal strength to the receiver. Perfect for stage performance, karaoke, and public address (presentations, classrooms, and conferences) operation.

SKU: DW-11 HM3 Category: Tag:

Nady DW-11 Specs

System
Wireless Transmission Digital UHF (900 MHz)
Number of RF Channels 1
Included Transmitters 1 x Bodypack with Microphone
Diversity Antenna Diversity
RF Frequency Band 902 to 951 MHz
Max Operating Range 300′ / 91.4 m (Line of Sight)
Sample Rate/Resolution 48 kHz / 24-Bit
Latency
Dynamic Range 120 dB (Typical)
Encryption None

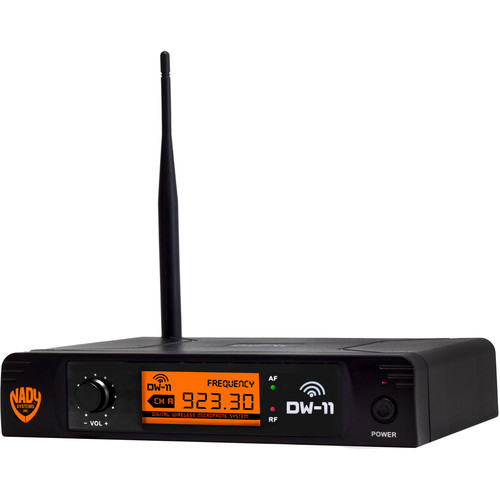

Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Optional Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 1 x 1/4 Wave External, Fixed (Rear-Mount)
Number of Audio Channels 1

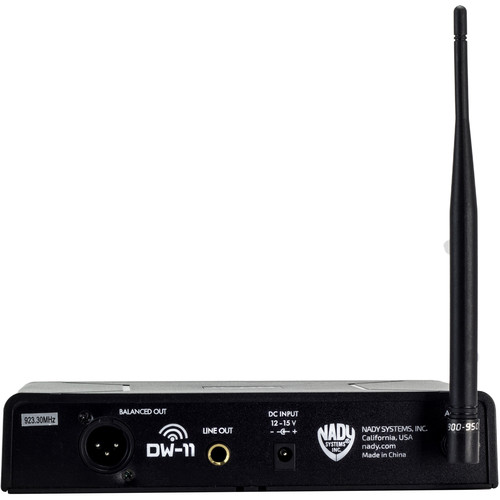

Audio I/O 1 x 1/4″ TS Female Unbalanced Output
1 x XLR 3-Pin Male Balanced Output
Phantom Power Protection Not Specified by Manufacturer
Frequency Response 20 Hz to 20 kHz ±3 dB
Approximate RF Sensitivity -94 dBm
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 13.5 VDC at 400 mA (Included)
Display & Indicators 1 x Backlit LED (AF Level, Level, Metering, Output Level, Power, RF Level)
Dimensions 6 x 8 x 1.7″ / 152.4 x 203.2 x 43.2 mm
Weight 0.7 lb / 340 g
Transmitter 1
Transmitter
RF Output Power < 50 mW (50 mW Peak)
Audio I/O None
Frequency Response 20 Hz to 20 kHz
Sync Method IR
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life 11 Hours (Alkaline)
USB/Lightning Connectivity Yes
Display & Indicators 1 x Backlit LED (Battery Status, Mute, Power)
Microphone
Form Factor Headset
Output Connectors 1 x 1/8″ / 3.5 mm TRS Female
Packaging Info
Package Weight 1.94 lb
Box Dimensions (LxWxH) 15.9 x 13.5 x 2.9″
