Nady U-2100/HM-3 UHF Omnidirectional Condenser Wireless System with 2 x HM-3 Headworn Microphones

Add to Wishlist

1,099.00 د.إ

Add to Wishlist

Nady U-2100/HM-3Ā Overview

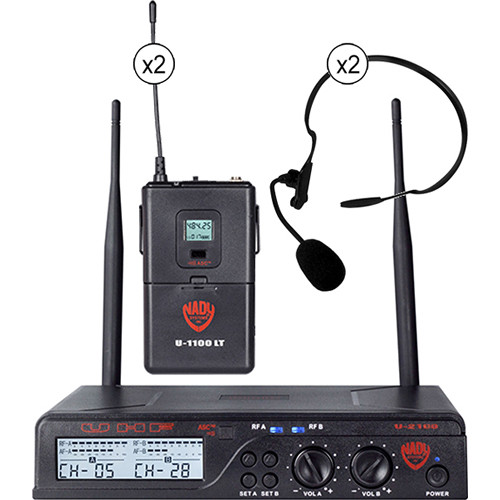

TheĀ U-2100/HM-3 UHF Omnidirectional Condenser Wireless System with 2 x HM-3 Headworn MicrophonesĀ fromĀ Nady SystemsĀ includes a 100-channel U-2100 dual receiver, an AC-2100 power supply, two HT-1100 handheld transmitter microphones, and two HM-3 Headmic Headworn Omnidirectional Condenser Microphones. The U-2100 has 100 selectable UHF frequencies to provide clear and transparent audio with full frequency response. The rugged ABS housing doesnā€™t give away for a long time. The system offers uninterrupted PLL UHF performance with 120 dB dynamic range and operation and up to 500′ line-of-sight.

The HM-3 Headmic Microphone is specifically designed to provide close-mic’d vocal pickup in applications for which hands-free operation is required. The microphone features an adjustable boom that can be set at any angle required by the user. Its ear rests and temple provide maximum stability during use, even while moving, or shaking the head. The durable cable assembly and internal construction are designed to minimize handling noise from contact and movement. The advanced design offers improved reliability and stable performance under adverse operating conditions. The HM-3 requires no troublesome batteries and is phantom powered from the input connector to the transmitter.

U-2100 Wireless Receiver

Uninterrupted PLL UHF performance with 120 dB dynamic range and operation, up to 500′ line-of-sight
100 UHF frequencies per band
Frequency Auto-Scan for quickly and conveniently finding a clear channel or user-selectable preset channel, with selected channel stored in memory for subsequent use
ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
Rear-panel removable swivel-BNC antennas
Front-panel touch-control buttons for ease of channel selection and ASC operation

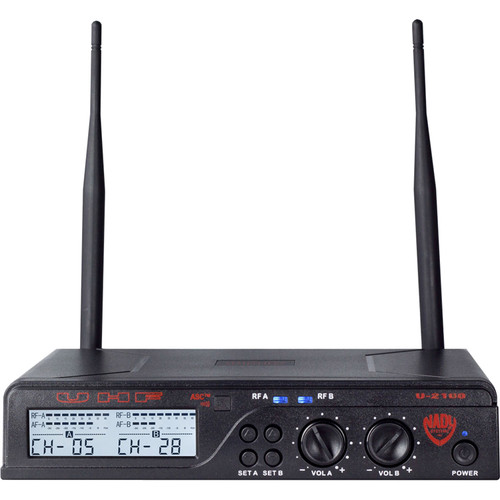

Full front-panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

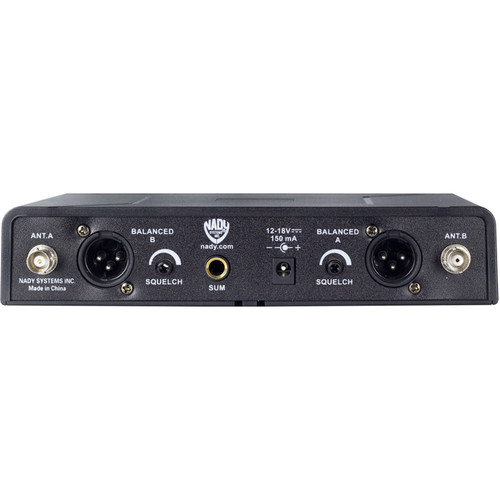

Back-panel, balanced-XLR fixed-Mic Level and adjustable unbalanced 1/4″ jack audio Line-Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks.
Externally powered with included universal voltages 110V-220 VAC / 13.5 VDC 400 mA adapter
Rugged all-ABS plastic housing for long-term durability
Includes two U-1100HT handheld microphones with neodymium dynamic cartridge for optimal true sound, maximum feedback rejection, and minimal handling noise

U-1100 HT Handheld Microphone Transmitter

Touch buttons for On/Off power and Mute allow convenient audio muting with the transmitter on
LCD display (with backlighting) including Channel and Frequency Selected, Battery-Level status
Manual selectable channel with Up/Down recessed buttons or ASC sync with RX-selected Channel and Frequency
Convenient, economical operation with two AA alkaline or NiMH batteries
Features a unidirectional neodymium dynamic cartridge for optimal true sound, maximum feedback rejection and minimal handling noise
Sleek housing with internal antenna for durable long life and optimum aesthetics

HM-3 Headset

Omnidirectional condenser element provides high-quality audio with detailed transparency and gain before feedback
Lightweight construction is designed for long, comfortable wear
Requires low-voltage phantom power as supplied by most wireless bodypack transmitters
SKU: 2100 / HM-3 Category: Tag:

Nady U-2100/HM-3Ā Specs

System Performance
Operating Frequency Range (A) 480-504.75 MHz and (B) 505-529.75 MHz
Frequency Synthesizer PLL (100 channels selectable) 250 kHz/step
System Frequency Selection
Frequency Response 50 Hz – 18 kHz +/-3dB
Dynamic Range 120 dB
Harmonic Distortion
Modulation FM (F3E) +/-25 kHz normal, +/-75 kHz max
Operating Range 150-250′ (45.7-76.2 m) typical, 500′ (152.4 m) max line-of-sight
Receiver
Receiver Type Dual conversion Super Heterodyne
Selectivity 60 dB, normal +/-75 kHz offset
Image Rejection -70 dB, minimum Sensitivity, -107 dBm, normal Spurious rejection 65 dB, normal
Mute Threshold Adjustable (-65 dBm to -95 dBm)
Controls GROUP/CHANNEL/AUTOSCAN, IR ASC Sync buttons, Power ON/OFF, Switch, MUTE level pot, VOLUME level pot
Display Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators
Audio Outputs Line Out Unbalanced, adjustable line-audio output; Mic-Out Balanced, fixed mic-level audio output
Output Impedance Unbalanced, 1 kOhm and Balanced; for 600-ohm loads
Power Requirements 13.5 VDC/0.4 A
Antennas Dual removable swivel-BNC antenna
Housing Material ABS Plastic
Dimensions (W x D x H) 8 x 6 x 1.25″ (20.4 x 15.3 x 3.2 cm)
Weight 15.1 oz (469.7 g)
Handheld Transmitter
RF Output Power +14 dBm (25 mW typical)/50 Ī©
Harmonic & Spurious Emissions -50 dBc normal
Input Impedance 10 kOhms
Controls Power OFF/ON, MUTE
LED Display Channel/Frequency, Battery status, Mute LED
Antenna Type Integral
Battery Type 2 x AA alkaline or NiMH
Battery Life 8-10 hours typical, alkaline
Housing Material ABS Plastic
Dimensions (L x D) 9.5 x 1.5″ (24.1 x 5.1 cm)
Weight 10.4 oz (323.5 g) without batteries
Headset
Element Condenser
Pattern Cardioid (Unidirectional)
Frequency Response 100 Hz to 13 kHz
Sensitivity -40 dB Ā±3 dB (At 1 kHz, 74 dB SPL)
Impedance 2.2 kOhms: Ā±30% at 1 kHz
Cable Length 43″ (1.1 m)
Dimensions Headset: 5.66″ (144 mm)
Nominal at widest point: 4.50″ (114 mm)
Flexible boom: 0.155″ (3.9 mm) diameter
Weight 1.10 oz (30.8 g) with cable
Packaging Info
Package Weight 2.75 lb
Box Dimensions (LxWxH) 14 x 11.9 x 3.1″
