National Compound Microscope 132-CLED-MS

Availability:

10 in stock
Add to Wishlist

1,999.00 د.إ

10 in stock

Add to Wishlist

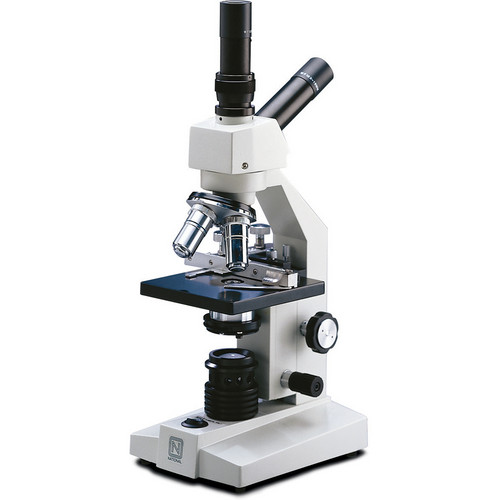

National 132-CLED-MS Compound Microscope



Product Highlights

  • 10.0x Eyepiece
  • Vertical and 30° Inclined Tubes
  • 4.0x, 10.0x, 40.0x Objectives
  • Cool LED Illumination
  • DIN Optical System
  • 360° Rotating Head
  • 3-Hole Nosepiece
  • 110x120mm Stage
  • Mechanical Stage
  • Cast Metal Frame



The 132-CLED-MS Compound Microscope from National Optical is a versatile user-friendly compound microscope, designed to facilitate teaching at the high school level using the standard format used in schools through grade twelve. This updated model features an LED stage illumination system for long-life and minimal heat output. The student-proof design decreases the likelihood of lost parts or mishandling.

This model of the 132-CLED-MS is configured with both inclined and vertical 10x eyepieces for simultaneous viewing, achromatic 4x/10x/40x objectives mounted on a rotating turret, and low position knobs for precise focusing between coarse and fine focus ranges. The included mechanical stage is a useful graduated specimen holder with top-mounted x/y controls for precise positioning of slides and other objects on the viewing stage.

Optical System

Widefield 10x eyepiece with revolving pointer
Achromatic parfocalled and parcentered 4x, 10x, 40x objectives
3-hole ball bearing mounted nosepiece
Vertical and 30° inclined eyepieces
360° rotating head

Base

Durable 13.5″ (34 cm) cast metal frame
Graduated mechanical specimen holder
Large 110 x 120mm stage with locked-on, spring-mounted stage clips, calibrated 5-hole disc diaphragm
Low position coarse and fine focusing controls with slip clutch, tension adjustment, rack stop

Illumination

Cool LED (20w tungsten equivalent), up to 50,000 hour bulb life
Heavy-duty grounded power cord
On/Off Switch
SKU: 132-CLED-MS Category: Tags: ,

National 132-CLED-MS Specs

Microscope Type Compound
Eyepiece Widefield 10.0x, vertical and 30° inclined tubes
Nosepiece 3-hole ball bearing mounted
Objective(s) 4.0x, 10.0x, 40.0x
Head Rotating 360°
Focuser Low position coarse and fine controls
Light Source Cool LED (20w equivalent)
Light Control On/Off
Specimen Stage 4.33 x 4.75″ (110 x 120 mm)
Frame Dimensions 13.5″ (34 cm)
Frame Weight 7.4 lb (3.4 kg)
