National MOTICAM 3+ Digital 3MP USB 3.0 Microscope Camera D-MOTICAM 3+

Availability:

10 in stock


AED3,399.00

10 in stock

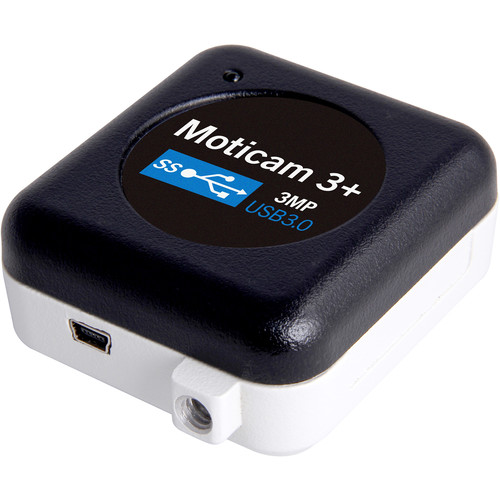

NationalĀ MOTICAM 3+ Digital 3MP USB 3.0 Microscope Camera



Product Highlights

  • Easy Plug-and-Play Setup
  • 3MP 1/2″ CMOS Imaging Sensor
  • 2048×1536 Maximum Resolution
  • Frame Rates: 12/30/50 fps
  • Adapters for 30mm & 38mm OD Eyepieces
  • Motic Images Plus 3.0 Software
  • View, Enhance, & Label Data on PC
  • CS Ring & Two Eyepiece Adapters Included
  • USB 3.0 Cable/Calibration Slide Included
  • 16mm Focusing Lens/Macro Tube Included



View and document your discoveries using theĀ MOTICAM 3+ Digital 3MP USB 3.0 Microscope CamerafromĀ National Optical. At the heart of this camera is a 3MP 1/2″ CMOS imaging sensor that offers a maximum resolution of 2048 x 1536 pixels at 12 frames per second. If your task requires higher frame rates, the camera is capable of generating 30 and 50 frames per second at lower resolutions. It can be easily connected to your Windows or Mac laptop or computer via the included USB 3.0 cable.

The included Motic Images Plus 3.0 software makes it a plug-and-play digital camera that allows you to view and to save images and videos on your computer. It also allows you to enhance, label, and print images. The device is compatible with most compound and stereo microscopes using the included CS ring adapter and two included adapters for the eyepieces. While the CS ring adapter allows you to connect the Motic to a body of your microscope, the other two adapters attach to eyepieces with 30mm and 38mm outside diameters. Also included are a 16mm focusable lens, calibration slide, and macro tube.

Sensor and Lens
  • 3MP 1/2″ CMOS sensor
  • Resolutions and frame rates:
    • 2048×1536 at 12 fps
    • 1024×768 at 30 fps
    • 512×384 at 50 fps
  • 16mm focusable lens included
Use and Handling
  • Allows viewing and taking photos and videos of your slides
  • Two included adapters provide compatibility with 30mm and 38mm OD eyepieces
  • Included CS ring adapter offers additional compatibility with microscope’s body
  • USB 3.0 cable included
Motic Images Plus 3.0 Software
  • Allows easy plug-and-play configuration
  • Enables you to enhance, label, measure, print, and store images
  • Compatible with Microsoft Windows XP, Vista, 7, 8, and MAC OS X
SKU: D-MOTICAM 3+ Category: Tags: , , , ,

National D-MOTICAM 3+ Specs

Sensor 3 MP 1/2″ CMOS sensor
0.26 x 0.17″ / 6.6 x 4.9 mm
Sensor Resolution 2048×1536 @ 12 fps
1024×768 @ 30 fps
512×384 @ 50 fps
Pixel Size 3.2×3.2 µm
Scan Progressive
Exposure 0.11 ms to 7 s
SNR 43 dB
Dynamic Range 61 dB
Sensitivity 1 V/Lux-sec at 550 nm
Lens 16mm, focusable
Supported Operating System Microsoft Windows: XP, Vista, 7, 8
MAC: OSX
Minimum Computer Requirements 2 GHz multi-core
2 GB RAM
512 MB video memory
USB 2.0
Operating Temperature 14 to 140°F / -10 to 60°C
Dimensions 2.5 x 2.5 x 1.5″ / 63.5 x 63.5 x 38.1 mm
Weight 5.6 oz / 159 g
