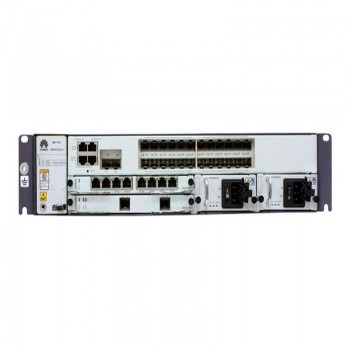

NE20E-S2E Basic Configuration Includes NE20E-S 2E Chassis,2*10GE-SFP+ and 24GE-SFP fixed interface,2*DC Power,Fan Box,Power cord,without Software Charge and Document CR2P2EBASD10
10 in stock
AED42,299.00
10 in stock
NE20E-S2E Basic Configuration Includes NE20E-S 2E Chassis,2*10GE-SFP+ and 24GE-SFP fixed interface,2*DC Power,Fan Box,Power cord,without Software Charge and Document
CR2P2EBASD10Ā Overview
Huawei CR2P2EBASD10 NetEngine NE20E-S Series Universal Service Router supports various interface types E1/CE1, POS, CPOS, GE, 10GE, and 40GE and high-density fixed ports to provide access and aggregation WAN services as well as Ethernet multi-service transmission platform (MSTP) aggregation services, satisfying various service requirements. The NE20E-S provides reliability protection at different levels, including the equipment level, network level, and service level. It can provide a multi-level reliability solution that completely meets carrier-class reliability. The NE20E-S lays the foundation for carrier-class services with a system availability of 99.999%.
The Huawei NE20E-S2E basic configuration includes NE20E-S2E Chassis,2 fixed 10GE-SFP+ ports, 24GE-SFP fixed interface, 2 * DC Power, Fan Box and Power cord. It also supports up to 320Gbps switching capacity, 70Mpps forwarding performance and 2 PICs slots. The NE20E-S supports IP FPM developed by Huawei to measure IP network performance. IP FPM directly measures IP service packets and monitors service changes online for fast fault locating. IP FPM provides highly-accurate measurements. It can be flexibly deployed and has no impact on services.
CR2P2EBASD10Ā Specification
CR2P2EBASD10 Specification |
|
| Switching Capacity | 160 Gbit/s |
| Forwarding Performance | 70 Mpps |
| Fixed Ports | 2 x 10 GE (SFP+) and 24 x GE (SFP) |
| Number of Slots | 2 PICs |
| Dimensions
(H x W x D) |
3.5 in. x 17.4 in. x 8.6 in. = 2U
(89 mm x 442 mm x 220 mm =Ā 2U) |
| Power consumption (in full configuration) | 195W (DC) |
| Weight in Full Configuration | 20.5 lb (9.3 kg) (DC) |
| Interface Types | 40 GE
10 GE GE/FE OC-3c/STM-1c POS OC-12c/STM-4c POS Channelized OC-3/STM-1 POS E1/CE1 |
| Clock Synchronization | Synchronous Ethernet and IEEE 1588v2 |
| Layer 2 Features | IEEE 802.1q
IEEE 802.1p IEEE 802.3ad IEEE 802.1ab STP/RSTP/MSTP |
| IPv4/IPv6 Routing Protocols | IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP
IPv4/IPv6 dual stack IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing |
| L2/L3 VPN | LDP over TE, VPLS, H-VPLS, and VPN policy-based routing
Martini MPLS L2VPN VLL/VPLS accessing L3VPN MPLS/BGP L3VPN and inter-AS VPN |
| Multicast | IGMPv1/v2/v3
IGMP snooping IPv6 multicast Static multicast routing PIM-SM PIM-SSM MBGP NG MVPN |
| QoS | WRED
Five-level HQoS VLL/PWE3 QoS |
| Reliability | NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP
GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6 Fast convergence of BGP/IGP/multicast routes IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR Ethernet OAM, Y.1731, and PWE3 E2E protection ISSU and in-service patching for smooth software upgrades |
| Security | ACL-based packet filtering
AAA SNMPv3 encryption and authentication URPF, GTSM, DHCP snooping ARP attack defense SSHv2 |
| Value-added Services | NAT, IPSec, GRE, and NetStream |
| OAM | Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah |
| Operating Temperature | 23Ā°F to 147Ā°F (-5Ā°C to 65Ā°C) |
| Operating Relative Humidity | 5% to 85%, non-condensing |
| Operating Altitude | ā¤ 9,842.5 ft. (3,000m) |
