NEC Display PV710UL-W1 Professional LCD Projector, 7100 Lumens, 4K HDR10 Support, Ultra Short Throw, WUXGA, HDBaseT, Ceiling Mountable, White – NP-PV710UL-W1-13ZL

Add to Wishlist

  • 7100-lumen LCD laser projector with 7400-lumen center brightness

  • Supports 4K/60P content with HDR10 compatibility

  • Ultra-high 3,000,000:1 contrast ratio for superior image quality

  • Laser light source with up to 20,000-hour lifespan

  • WUXGA native resolution (1920 x 1200) with maximum 4K (4096 x 2160) support

  • HDBaseT input for HD video, audio, Ethernet, and control signal transmission

  • Compatible with AMX Beacon, Crestron RoomView, and Extron XTP systems

  • Flexible installation featuring motorized lens shift, focus, and zoom

  • Network-enabled with ProAssist software for remote management

AED44,299.00

Add to Wishlist

7,400 Lumens of Brilliance for Crystal Clear Presentations

The NEC PV710UL-W1-13ZL delivers exceptional brightness with its 7,400 center lumens, ensuring your content stands out even in well-lit environments. The advanced LCD laser technology provides consistent, maintenance-free illumination while maintaining precise color accuracy and sharp detail reproduction.

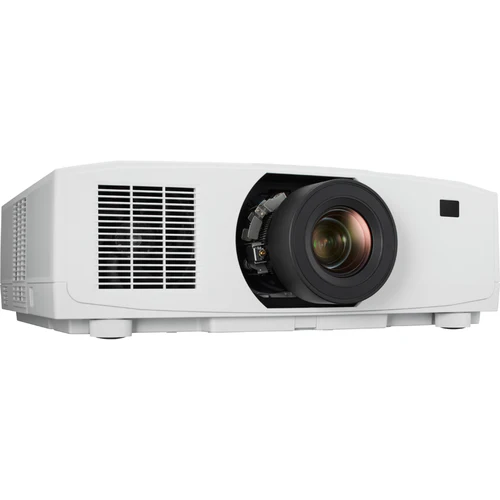

Front angled view of white NEC PV710UL-W1-13ZL professional installation projector showing lens and ventilation system

Technical Specifications

  • 7,400 center lumens for superior brightness
  • LCD laser light source with 20,000 hour lifetime
  • Native WUXGA (1920×1200) resolution

Applications

  • Large auditorium presentations
  • Corporate training rooms
  • University lecture halls

Ultra-Short Throw Lens for Flexible Installation

The motorized ultra-short throw lens system allows for versatile placement options while maintaining perfect image geometry. Advanced lens shift capabilities enable precise image positioning without moving the projector, ideal for permanent installations in professional environments.
Side view of NEC PV710UL-W1-13ZL projector highlighting the ultra-short throw lens system

Technical Specifications

  • Motorized lens shift, focus and zoom
  • Ultra-short throw projection capability
  • Maximum 41.67 ft diagonal image size

Applications

  • Space-constrained meeting rooms
  • Digital signage installations
  • Museum displays

Advanced Thermal Management System

Engineered with a sophisticated cooling system, the PV710UL-W1-13ZL maintains optimal operating temperature for extended performance. The efficient ventilation design ensures quiet operation while protecting critical components.
Side profile of NEC projector showing ventilation system and cooling design

Technical Specifications

  • Optimized airflow management
  • Low-noise operation
  • Extended component lifespan

Applications

  • 24/7 operation environments
  • Mission-critical presentations
  • Professional broadcasting

Efficient Heat Dissipation Design

The large surface area ventilation system ensures optimal thermal management for continuous operation. Strategic placement of cooling vents maintains consistent performance while protecting internal components.
Top view of NEC projector showing extensive ventilation system

Technical Specifications

  • Large-area ventilation system
  • Strategic heat management
  • Continuous operation capability

Applications

  • Extended runtime applications
  • High-ambient temperature environments
  • Multi-projector installations

Comprehensive Connectivity Hub

The extensive array of inputs supports diverse source connections, including HDBaseT for single-cable solutions. Multiple control options enable seamless integration with existing AV systems and network infrastructure.
Rear view of NEC projector showing all input/output ports and connections

Technical Specifications

  • HDBaseT with single cable solution
  • Dual HDMI inputs
  • Network control capability

Applications

  • Complex AV installations
  • Network-managed facilities
  • Remote monitoring applications

Intuitive Control Interface

The top-mounted control panel provides quick access to essential functions while status indicators offer at-a-glance system monitoring. Clear labeling ensures efficient operation in any lighting condition.
Top view of NEC projector showing control panel and status indicators

Technical Specifications

  • Direct access control panel
  • LED status indicators
  • One-touch image adjustment

Applications

  • Quick setup environments
  • Multi-user facilities
  • Temporary installations

Robust Mounting Solutions

Multiple mounting points provide secure installation options for ceiling or custom mounts. The reinforced chassis design ensures stable positioning and reliable operation in any orientation.
Bottom view of NEC projector showing mounting points and chassis design

Technical Specifications

  • Multiple mounting configurations
  • Reinforced chassis construction
  • 360-degree installation capability

Applications

  • Permanent ceiling installations
  • Custom mounting solutions
  • Multi-angle projections

Advanced Integration Features

The comprehensive rear panel provides full connectivity options while maintaining a clean, professional appearance. Easy access to ports and controls simplifies setup and maintenance procedures.
Detailed view of NEC projector rear panel showing all connection ports and controls

Technical Specifications

  • Comprehensive port selection
  • Professional control interfaces
  • Built-in network capabilities

Applications

  • Professional AV integration
  • Control system compatibility
  • Networked environments
SKU: NP-PV710UL-W1-13ZL Category: Tag:

General Information
Manufacturer: Sharp NEC Display Solutions Ltd.
Manufacturer Part Number: NP-PV710UL-W1-13ZL
Brand Name: NEC Display
Product Series: NP
Product Model: PV710UL-W1-13
Product Name: 7100-Lumen Professional Installation Projector With Lens and 4K Support
Product Type: LCD Projector

Technical Information
Projection Method: Front, Front Ceiling, Rear, Rear Ceiling
Vertical Scan Range: 50 Hz – 85 Hz
High Dynamic Range (HDR): Yes
High Dynamic Range (HDR) Type: HDR10

Projection Lens
Throw Type: Ultra Short Throw
Maximum Diagonal Image Size: 41.67 ft

Lamp
Number of Lamps: 1
Normal Mode Lamp Life: 20,000 Hours

Standard Mode Brightness: 7400 lm
Native Resolution: 1920 x 1200
Graphic Mode: WUXGA
Maximum Resolution: 4096 x 2160
Native Aspect Ratio: 16:10
Contrast Ratio: 3,000,000:1

Video
Video Signal Standard: HDTV
Output Scan Format: 1080p

Interfaces/Ports
HDMI: Yes
USB: Yes
Network (RJ-45): Yes

Power Description
Operating Power Consumption: 456 W

Physical Characteristics
Product Color: White
Form Factor: Ceiling Mountable
Height: 16.2”
Width: 19.8”
Depth: 6.6”
Weight (Approximate): 24.69 lb

Miscellaneous
Application/Usage: Classroom, Corporate, Meeting, Auditorium, Large Venue, Presentation, Education
Package Contents:

  • 7100-Lumen Professional Installation Projector With Lens and 4K Support

  • Remote Control (RMT-PJ40)

  • Quick Guide

  • Important Info

  • Lens Cap

  • Security Sticker

  • Lens Anti-Theft Screw
