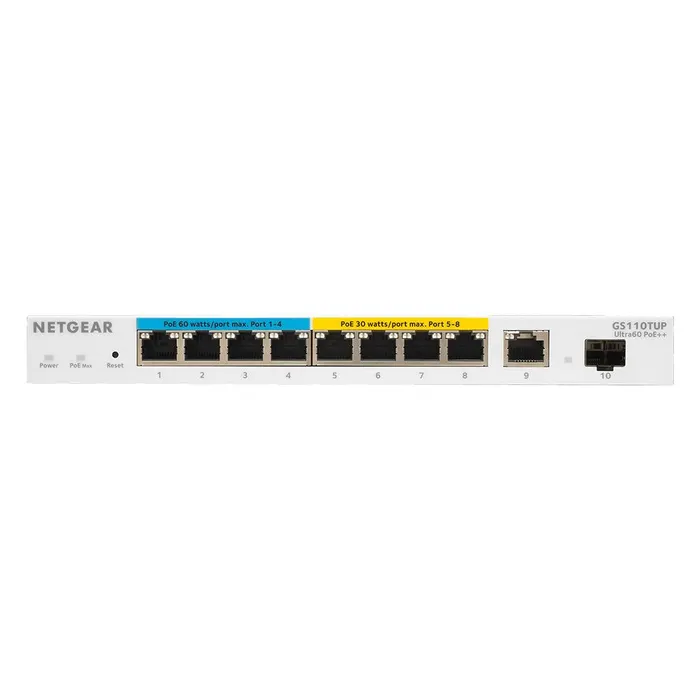

NETGEAR 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink

Add to Wishlist

9x 10/100/1000Base-T, 1x 1000BASE-X, RJ-45, SFP, PoE++, 276.8 W, DC 54 V, 4.7 A, 236 x 101 x 27 mm, 630 g

AED2,499.00

Add to Wishlist

Introducing the NETGEAR GS110TUP Ultra60 PoE++ 10-Port Gigabit Ethernet Smart Managed Pro Switch with 4 ports PoE++, 4 ports PoE+ and 1 Gigabit Copper and 1 SFP uplinks with Remote Cloud management activation. GS110TUP provides a total PoE budget of 240W and advanced PoE features such as uninterrupted PoE for powerful PoE applications. Each Ultra60 PoE++ port can provide up to 60 watts to power up the connected devices such as LED lighting, PTZ cameras, IoT, with a PoE power budget of 240W. Fanless, the GS110TUP supports perfectly silent desktop operation, rack mounting, VESA wall mounting, and ceiling mounting compatible. This Smart Managed Pro switch offers an easy-to-use Web browser-based management GUI with configurable L2/L2+ network features like VLANs and PoE operation scheduling. The IGMP snooping feature can automatically define explicit action multicast groups to be supported per port. This switch also comes with NETGEAR Insight Cloud management activation for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TUP is backed by NETGEAR’s ProSAFE limited lifetime Warranty and 24/7 technical support.

SKU: GS110TUP-100EUS Categories: , Tag:
Feature Details
Switch Type Managed
Switch Layer L2/L3
Basic Switching RJ-45 Ethernet Ports Quantity 10
Basic Switching RJ-45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)
SFP Module Slots Quantity 1
Power Connector DC-in Jack
Networking Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
10G Support N
Full Duplex Y
IP Routing Y
Number of VLANs 64
MAC Address Table 8000 Entries
Switching Capacity 20 Gbit/s
Forwarding Rate 14.8 Mpps
Store-and-Forward Y
Jumbo Frames Support Y
Jumbo Frames 10000
Packet Buffer Memory 0.512 MB
DHCP Features DHCP Client, DHCP Snooping
Access Control List (ACL) IPv6 Entries 100
Security Algorithms SSL/TLS
Queue Scheduling Algorithms Weighted Round Robin (WRR)
Number of Multicast Groups Filtered 256
Rack Mounting Y
Stackable Y
Product Colour White
Reset Button Y
LED Indicators Activity, Link, PoE, Power, Speed
Wall Mountable Y
Mean Time Between Failures (MTBF) 695508 hours
Harmonized System (HS) Code 85176990
Power Supply Included Y
DC Input Voltage 54 V
Input Current 4.7 A
Power Consumption (Max) 276.8 W
Power over Ethernet (PoE) Y
Power over Ethernet Plus (PoE+) Ports Quantity 8
Total Power over Ethernet (PoE) Budget 240 W
Operating Temperature (T-T) 0 – 40 °C
Storage Temperature (T-T) -20 – 70 °C
Operating Relative Humidity (H-H) 0 – 95%
Storage Relative Humidity (H-H) 0 – 95%
Operating Altitude 0 – 3000 m
Non-operating Altitude 0 – 3000 m
Heat Dissipation 945 BTU/h
Width 236 mm
Depth 101 mm
Height 27 mm
Weight 630 g
Quick Start Guide Y
Package Type Gift Box
Rack Mount Kit Y
Master (Outer) Case Width 402 mm
Master (Outer) Case Length 453 mm
Master (Outer) Case Height 357 mm
Master (Outer) Case Gross Weight 20.1 kg
Products per Master (Outer) Case 6 pc(s)
Bandwidth 20 Gbit/s
