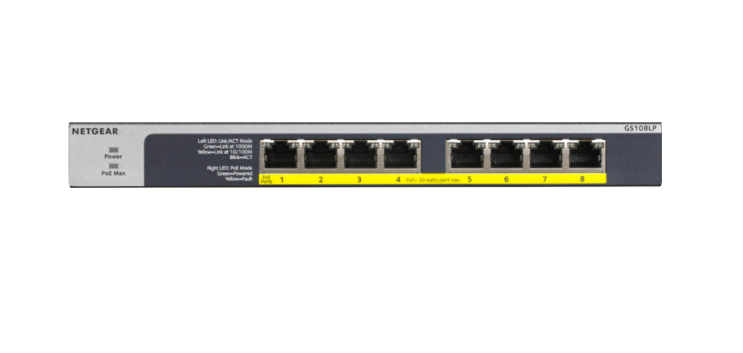

Netgear – 13372729 – GS108LP-100NAS 8-Port PoE/PoE Plus Gigabit Ethernet Unmanaged Switch
AED1,099.00
- Specifications:
- Technical
- Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) – 1000BASE-T: 8
- PoE/PoE+ Ports: 8 PoE+ (60W PoE budget)
- Power Supply: External Input 54V 1.25A (67.5W)
- Power Supply Supported: External, Input 54V 2.4A (130W), Input 54V 1.66A (90W), Input 54V 1.25A (67.5W)
- Form Factor: Desktop/Rackmount/Wall-Mount:Product Specifications
- Gigabit Ports: 8
- Max MAC entries: 4k
- Buffer Size: 192kb
- Energy Effi cient Enthernet (IEEE 802.3az complaint): Yes:PoE Support
- 802.3af: Ports 1-8
- 802.3at: Ports 1-8
- PoE Max Power Per Port: Up to 15.4w for 802.3af and 30W for 802.3at
- Total PoE Power Budget: 60W
- Forwarding modes: Store-and-Forward
- Bandwidth: 16Gbps
- Jumbo frame support: Yes
- Acoustic noise (ANSI- ): 0(fanless)
- Mean Time Between Failures (MTBF): 2, 752, 476 hours:Quality of Service (QOS)
- DSCP: Yes
- IEEE 802.1p COS: Yes
- Queue WRR Ratio: 1:3:5:7:8:10:12:15 Weighted Fair Queue (WFQ):LEDs
- Per port: Speed, Link, Activity, PoE
- Per device: Power Status, PoE Max:IEEE Network Protocols
- IEEE 802.3 Ethernet
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1p Class of Service
- IEEE 802.3az Energy Effi cient Ethernet (EEE)
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3x Flow Control:Physical Specifications
- Dimensions (W x D x H): 236 x 102 x 27 mm, 9.29 x 4.02 x 1.06 in
- Weight: 1.32 lb:Power Consumption
- Power Supply: External Input 54V 1.25A (67.5W)
- Power Supply Supported: External, Input 54V 2.4A (130W), Input 54V 1.66A (90W), Input 54V 1.25A (67.5W)
- Max power (worst case, all ports used, line-rate traffi c)(Watts): 67.5W
- Min power (link-down standby) (Watts): 1.08W
- Heat Dissipation (max and min) (BTU/hr): 230.85 BTU/ 3.69 BTU
- Energy Efficient Ethernet (EEE) IEEE 802.3az: Yes
- Short cable power reduction: Yes
- Auto power-down: Yes
- Fan(s): 0 (fanless):Environmental Specifications
- Operating Temperature: 0° to 50° C (32° to 122° F)
- Humidity: 90% maximum relative humidity (RH), non-condensing
- Altitude: 10, 000 ft (3, 000 m) maximum
- Storage Temperature: -20° to 70° C (- 4° to 158° F)
- Humidity (relative): 95% maximum relative humidity (RH), non-condensing
- Altitude: 10, 000 ft (3, 000 m) maximum
