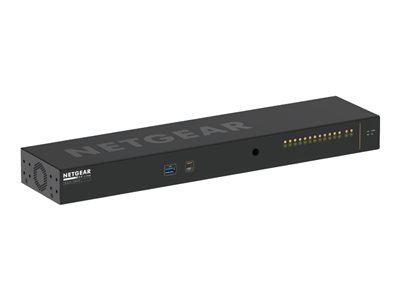

NETGEAR AV Line M4250-12M2XF – switch – 14 ports – managed – rack-mountable


NETGEAR AV Line M4250-12M2XF – Switch – L3 – managed – 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ – side to side airflow – rack-mountable

AED5,699.00

The NETGEAR M4250 switch series was developed and engineered for audio / video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market. AV codecs generally use 1 Gbps or 10 Gbps per stream and the AV Line of M4250 targets the widespread 1 Gbps codecs. M4250 switch comes pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, as well as audio / video / control mixed profiles.

SKU: MSM4214X-100NAS Category: Tag:
Device Type Switch – 14 ports – L3 – managed
Enclosure Type Side to side airflow rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 12 x 10/100/1000/2.5G RJ-45 + 2 x 10 Gigabit SFP+
Performance Switching capacity: 100 Gbps <br> Firewall throughput (64-byte packet size): 74.4 mpps <br> Latency (2.5 Gbps): 6.013 µs <br> Latency (10 Gbps): 0.807 µs
Capacity VLANs supported: 4093 <br> ARP entries: 4000 <br> Multicast entries (IPv4): 512 <br> Multicast entries (IPv6): 128 <br> Jumbo frame size: up to 12000 <br> IGMP multicast groups: 2000 <br> MSTP instances: 16 <br> PVST instances: 32
MAC Address Table Size 16K entries
Routing Protocol RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2
Remote Management Protocol RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS
Encryption Algorithm SSL 3.0, TLS 1.2
Features VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), LLDP-MED, Private VLAN, Protocol Independent Multicast (PIM), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG)
Compliant Standards IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav
Processor X ARM A9: 1.25 GHz
RAM 2 GB
Flash Memory 256 MB
Status Indicators Link/speed
Expansion / Connectivity – Interfaces: 12 x 10/100/1000/2.5G RJ-45, 2 x 10 Gigabit SFP+, 1 x management (Gigabit LAN) RJ-45, 1 x console RJ-45, 1 x USB Type A, 1 x console (USB) Type C <br> – Expansion Slots: None
Miscellaneous – Included Accessories: Mounting brackets <br> – Cables Included: Console cable, USB-C to USB-A cable <br> – Rack Mounting Kit: Included <br> – Compliant Standards: CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, GB/T9254-2008 Class A, ANSI C63.4:2014
Localization Americas
Dimensions & Weight – Width: 17.3 in <br> – Depth: 3.9 in <br> – Height: 1.7 in <br> – Weight: 3.85 lbs
