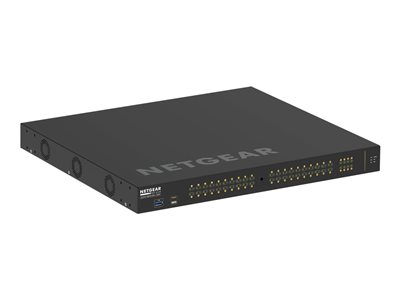

NETGEAR AV Line M4250-40G8F-PoE+ – switch – 40 ports – managed – rack-mountable

Add to Wishlist
NETGEAR AV Line M4250-40G8F-PoE+ – Switch – L3 – managed – 40 x 10/100/1000 (PoE+) + 8 x 1000Base-X SFP – side to side airflow – rack-mountable – PoE+ (480 W)

د.إ12,499.00

Add to Wishlist

The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.

The M4250 series ranges from 8 to 48 ports with a variety of PoE, PoE+ and Ultra90 PoE++ options. In addition, uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments. The M4250 series also includes 12-port multi-Gigabit Ethernet and 16-port 1G/10G fiber models for plug-and-play aggregation in a totally automated star topology.

Designed for a clean integration with traditional rackmounted, AV equipment, the M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back. Reversed mounting is possible when ports are desired on the front of the rack and a second pair of rackmount ears allows the switches to be mounted recessed to allow for the cabling. Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation. Threaded holes on the bottom and in front allow for universal mounting options outside the rack as well.

SKU: GSM4248P-100NAS Category: Tag:
Device Type Switch – 40 ports – L3 – managed
Enclosure Type Side to side airflow rack-mountable 1U
Subtype Gigabit Ethernet
Ports 40 x 10/100/1000 (PoE+) + 8 x 1000Base-X SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 480 W
Performance Switching capacity: 96 Gbps ¦ Firewall throughput (64-byte packet size): 71.42 Mpps ¦ 1 Gbps fiber latency (64-byte packets): 1.074 µs ¦ 1 Gbps fiber latency (512-byte packets): 1.109 µs ¦ 1 Gbps fiber latency (1024-byte packets): 1.106 µs ¦ 1 Gbps fiber latency (1518-byte packets): 1.102 µs ¦ 1 Gbps copper latency (64-byte packets): 2.027 µs ¦ 1 Gbps copper latency (512-byte packets): 2.343 µs ¦ 1 Gbps copper latency (1024-byte packets): 2.462 µs ¦ 1 Gbps copper latency (1518-byte packets): 2.358 µs
Capacity ARP entries: 4000 ¦ NDP entries: 4000 ¦ Packet buffer size: 32 MB ¦ VLANs supported: 4093 ¦ IGMP multicast groups: 4000 ¦ QoS hardware queues: 8 ¦ IPv4 routes (static): 64 ¦ IPv6 routes (static): 64 ¦ RIP application route scaling (IPv4): 32 ¦ IPv4 groups (Multicast): 512 ¦ IPv6 groups (Multicast): 128
MAC Address Table Size 16K entries
Jumbo Frame Support 12KB
Routing Protocol RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS
Encryption Algorithm AES, TLS 1.0, SSL 3.0, TLS 1.2
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, Weighted Random Early Detection (WRED), sFlow, DHCP snooping, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dual firmware images, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), IGMP proxy, 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, cable test, MLD proxy, IP source guard, GARP Multicast Registration Protocol (GMRP), Source-Specific Multicast (SSM), DNS client, Voice VLAN, LLDP-MED, RA guard, STP BPDU Guard, STP loop guard, Denial of Service (DoS) protection, Protocol Independent Multicast (PIM), Audio Video Bridging (AVB), MAC Access Bypass (MAB), Link Aggregation Group (LAG), multiple tag protocol identifiers (TPID), IPTV support, Management Access Control and Administration List (MACAL), Industry Standard Discovery Protocol (ISDP), Rapid PVST+ (RPVST+), Multiple Registration Protocol (MRP), STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, Any Source Multicast (ASM)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor X ARM: 1.8 GHz
RAM 2 GB
Flash Memory 256 MB
Status Indicators Port status, power, fan, PoE max
Expansion / Connectivity 40 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W ¦ 8 x 1000Base-X SFP ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB-C ¦ 1 x USB Type A
Power Device Internal power supply
Installed Qty 1
Power Consumption Operational 624.8 Watt
Power Consumption Stand by 46.4 Watt
Miscellaneous
Included Accessories Rubber feet, rubber caps
Cables Included 1 x console cable ¦ 1 x USB-C to USB-A cable
Rack Mounting Kit Included
MTBF 341,680 hours
Compliant Standards cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, ANSI C63.4:2014
Localization Americas
Dimensions & Weight
Width 17.3 in
Depth 15.7 in
Height 1.7 in
Weight 12.9 lbs
