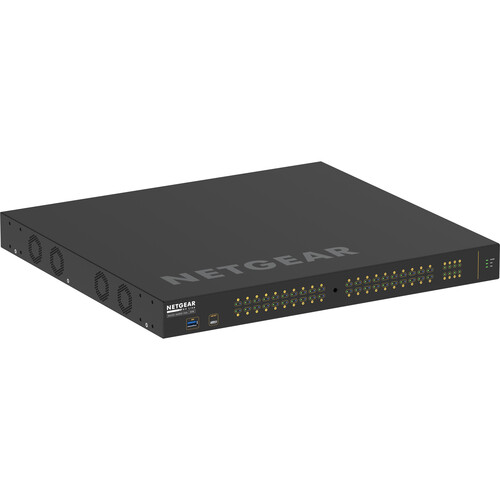

Netgear AV Line M4250 GSM4248PX 40-Port Gigabit PoE+ Compliant Managed AV Switch with SFP+ (960W)

Add to Wishlist
Key Features
  • 40 x Gigabit Ethernet PoE+ Ports
  • 8 x 10G Gigabit SFP Port
  • 240 Gb/s Switching Capacity
  • 178.56 Mpps Forwarding Rate
  • 1.8 GHz ARM Cortex-A57 Quad-Core CPU
  • 2GB RAM
  • Rack-Mountable Design
  • 960W Power Budget
  • AVB Support

13,999.00 د.إ

Add to Wishlist

Designed with input from industry professionals, the AV Line M4250 GSM4248PX 40-Port Gigabit PoE+ Compliant Managed AV Switch from Netgear is engineered for 1G AV over IP. Enjoy 40 PoE+ compliant rear-facing ports with a 960W budget and pre-configuration for out-of-the-box functionality. There are also eight 10G SFP+ fiber slots that ensure a clean integration in AV racks

Built for AV over IP
Pre-Configured for Out-of-the-Box Use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations.
Dedicated AV Web-Based Interface
Unique interface designed for the AV professional with color-coded, port-based profiles.
Profiles for Common Audio Protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations.
Video Profiles Built-In
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed.
Mounting Flexibility
Rackmount Versatility
1 RU, 7.9″ deep rackmount with all power and Ethernet ports on the back.
Reversed Mounting Possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables.
Universal Mounting Availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes.
Advanced Features
Layer 2 / Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models.
Control Methods Abound
Built-in IT web GUI, console, telnet and SSH.
Standard Network Features
Feature set includes static, RIP and PIM routing, DHCP Server, and PTPv2.
Category: Tag:
Key Specs
Inputs/Outputs
40x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
8x SFP+ 10 GbE
2x RJ45 Gigabit Ethernet LAN
2x USB-C
1x USB-A
Stackable
No
Switching Bandwidth
240 Gb/s
PoE Power Budget
960 W
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
DHCP Server
IGMP Snooping
IPv4
IPv6
Link Aggregation
Port Mirroring
Jumbo Frames Support
12,000 Bytes
MAC Address Table Size
16K
Security
Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Latency
0.7 to 2.7 µs
Forwarding Rate
178.56 Mpps
Switching Bandwidth
240 Gb/s
Packet Buffer
32 Mb
Computer
CPU
Quad-Core: Up to 1.8 GHz Cortex A57
Memory
2 GB
Electrical
PoE per Port
30 W
PoE Power Budget
960 W
Power Draw
1197.00 W (Max)
89.2 W (Idle)
74.5 W (Standby)
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 77°F / 0 to 45°C
Operating Humidity
90%
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
95%
Noise Level
59.0 dB (Active)
General
Certifications
No
Cooling System
Fan/Passive Combo
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 15.7 x 1.7″ / 440 x 400 x 43.2 mm
Weight
13.91 lb / 6.31 kg
Packaging Info
Package Weight
18.86 lb
Box Dimensions (LxWxH)
21.2 x 18.2 x 4.8″
