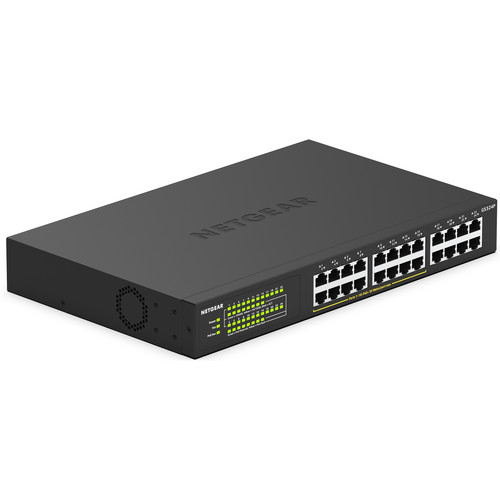

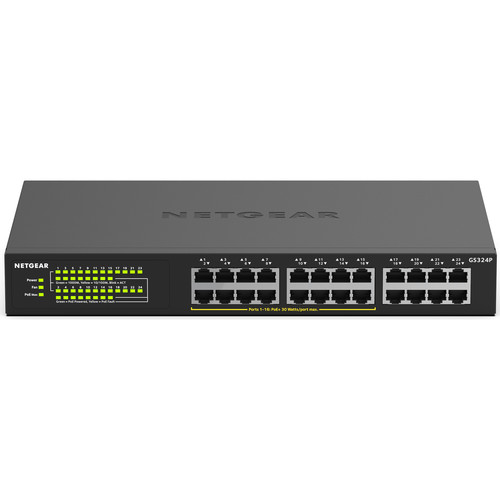

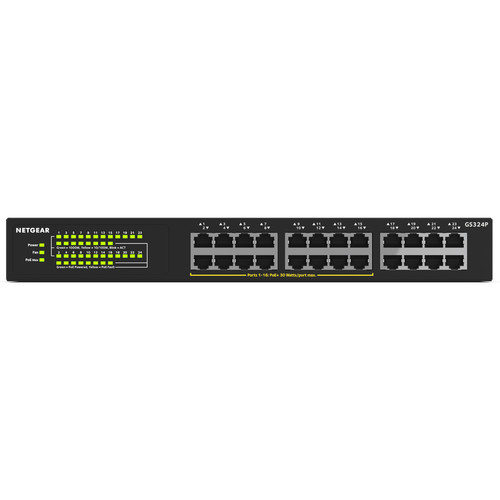

Netgear GS324P 24-Port Gigabit PoE+ Compliant Unmanaged Switch


Key Features
  • 24 x Gigabit Ethernet Ports
  • 16 x PoE+ Compliant Ports
  • 48 Gb/s Switching Capacity
  • 1.44 Mpps Forwarding Capacity
  • Desk- and Wall-Mountable Design
  • Auto-MDI/MDIX Support
  • 802.1p QoS
  • Fanless Design
  • Plug-and-Play

AED1,199.00

Netgear GS324P-100NASĀ Overview

Boost the switching capacity of your small business with theĀ GS324P 24-Port Gigabit PoE+ Compliant Unmanaged Switch. Capable of up to 48 Gb/s of total switching bandwidth and a 1.44 Mpps forwarding rate, this desk- and wall-mountable unmanaged switch comes equipped with 24 Gigabit Ethernet ports. Sixteen of those ports support PoE+ (Power over Ethernet) with a 190W power budget, ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE-capable devices.

Support for the Energy-Efficient Ethernet standard helps the plug-and-play switch to conserve power, while auto-MDI/MDIX support eliminates the need for crossover cables. The switch’s 802.1p QoS capabilities allow for traffic prioritization, while its fanless design helps to ensure quiet operation.

  • LED indicators for ease of use
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Durable and rugged metal case
  • Ideal for small office and home networks
  • Standards-based technology helps to ensure interoperability with standards-based devices in the existing network
  • Auto power down
  • Short cable detection
Category: Tag:
Key Specs
Inputs/Outputs
8x RJ45 Gigabit Ethernet
16x RJ45 Gigabit Ethernet PoE (Unspecified)
Stackable
No
Switching Bandwidth
48 Gb/s (Non-Blocking)
PoE Power Budget
190 W
Stackable
No
Protocols
Supported Protocols
Auto-MDIX/MDI
MAC Filtering
Queuing
Weighted Round Robin (WRR)
Jumbo Frames Support
10,000 Bytes
MAC Address Table Size
8K
Performance
Latency
4 µs
Forwarding Rate
1.44 Mpps
Switching Bandwidth
48 Gb/s (Non-Blocking)
Packet Buffer
192 kB
Electrical
PoE per Port
30 W
PoE Power Budget
190 W
Power Draw
210.00 W (Active)
10.00 W (Standby)
Input Power
110 to 240 VAC, 50 / 60 Hz at 8 A
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 113°F / 0 to 45°C
Operating Humidity
10 to 90%
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
10 to 95%
General
Certifications
No
Cooling System
Fan
Mean Time Between Failures (MTBF)
1.2 Million Hours
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
No
Dimensions
13 x 8.1 x 1.7″ / 330 x 206 x 43Ā mm
Weight
5.38Ā lb / 2.44Ā kg
Packaging Info
Package Weight
7.185 lb
Box Dimensions (LxWxH)
16.4 x 11.8 x 4.1″
