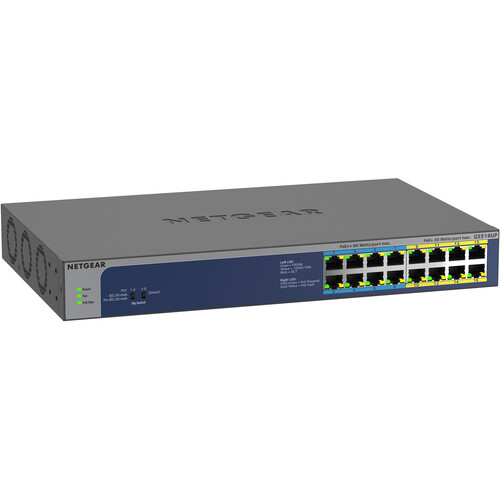

Netgear GS516UP 16-Port Gigabit PoE++ Compliant Unmanaged Switch

Add to Wishlist
Key Features
  • 8 x 30W PoE+ Compliant Ports
  • 8 x 60W PoE++ Compliant Ports
  • 32 Gb/s Switching Capacity
  • 1.448 Mpps Forwarding Rate
  • Desktop & Rack-Mountable Design
  • 380W Power Budget
  • Automatic Power Balancing
  • Plug-and-Play Design

د.إ1,899.00

Add to Wishlist

Netgear GS516UP Overview

Expand your network with the Netgear GS516UP 16-Port Gigabit PoE++ Compliant Unmanaged Switch, which supports demanding Hi-PoE devices, such as advanced IP security cameras, in addition to VoIP phones and access points. This 16-port Gigabit Ethernet unmanaged switch includes eight 30W PoE+ and eight 60W PoE++ compliant ports for a total power budget of 380W. Netgear’s power technologies help to ensure that the exact amount of power necessary is delivered to each connected PoE device. The GS516UP also has a 32 Gb/s switching capacity and a 1.448 Mpps forwarding rate to ensure fast, reliable performance. You can mount this switch onto a desktop or use the included kit for rackmount installations. Its plug-and-play design allows you to integrate the switch into your network without the need for any additional hardware or software.

Power Auto Balance and Allocation
With Netgear’s PoE technology, this switch automatically delivers the exact amount of power each connected PoE device requires.
Silent Operation
The GS516UP is designed to operate silently with passive cooling until its three cooling fans are required to maintain optimal temperatures.
Rugged Design
This switch features a durable metal casing for enhanced longevity.
SKU: GS516UP-100NAS Category: Tag:
Key Specs
Inputs/Outputs
8x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
8x RJ45 Gigabit Ethernet PoE++ (60 W, 802.3bt Type 3)
Stackable
No
Switching Bandwidth
32 Gb/s (Non-Blocking)
PoE Power Budget
380 W
Stackable
No
Protocols
Supported Protocols
Auto-MDIX/MDI
Queuing
Weighted Round Robin (WRR)
Jumbo Frames Support
9216 Bytes
MAC Address Table Size
8K
Performance
Latency
12 µs
Forwarding Rate
1.44 Mpps
Switching Bandwidth
32 Gb/s (Non-Blocking)
Packet Buffer
192 kB
Electrical
PoE per Port
30 to 60 W
PoE Power Budget
380 W
Power Draw
456.8 W (Max)
14.9 W (Standby)
Input Power
100 to 240 VAC, 50 / 60 Hz at 4 to 8 A
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 82°F / 0 to 50°C
Operating Humidity
10 to 90%
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
10 to 95%
General
Certifications
No
Cooling System
Fan/Passive Combo
Mean Time Between Failures (MTBF)
1.2 Million Hours
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
13 x 8.1 x 1.7″ / 330 x 207 x 43 mm
Weight
5.7 lb / 2.6 kg
Packaging Info
Package Weight
7.955 lb
Box Dimensions (LxWxH)
17.8 x 10.6 x 3.6″
