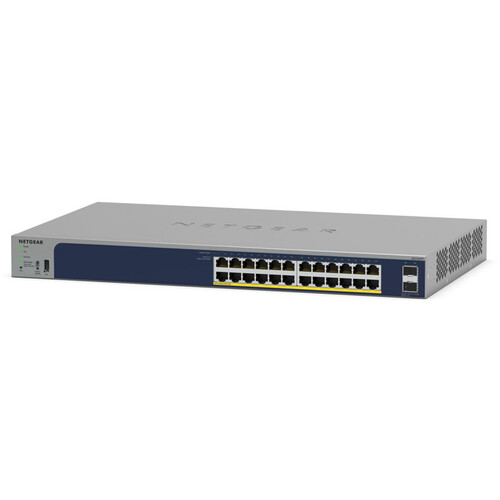

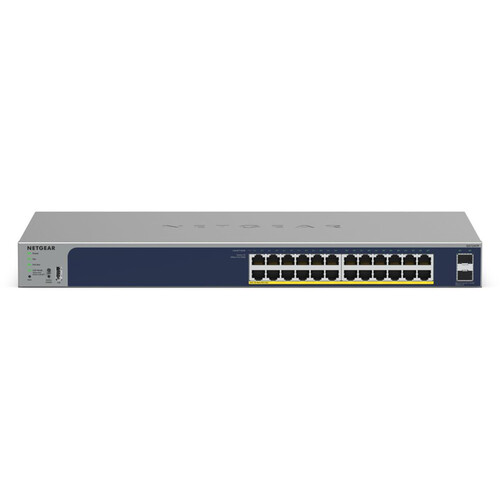

Netgear GS724TPv3 24-Port Gigabit PoE+ Managed Network Switch (190W)


Key Features
  • 24 x Gigabit Ethernet PoE+ Ports
  • 2 x Gigabit SFP Slots
  • 52 Gb/s Switching Capacity
  • 38.6 Mpps Forwarding Rate
  • Rack Mountable Design
  • 190W Power Budget
  • Supports Up to 256 VLANs
  • Layer 2+ & Layer 3 Lite Features
  • 2 x Integrated Fans
  • Cloud Management

AED1,499.00

Netgear GS724TP-300NASĀ Overview

Grow your small business with powered devices such as IP cameras, access points, and VoIP phones with theĀ GS724TPv3 24-Port Gigabit PoE+ Managed SwitchĀ fromĀ Netgear. Designed for easy installation and flexible management, this switch features 24 Gigabit Ethernet ports, each of which supports up to 30W of power with a 190W budget.

With a 52 Gb/s non-blocking switching capacity and 38.6 Mpps forwarding rate, the GS724TPv3 delivers smooth and fast performance. It also supports up to 256 VLANs. Extensive Layer 2+ and Layer 3 Lite features add security, efficiency, and easy management. Two cooling fans help to ensure optimal performance without disturbing your environment when mounted onto a rack or desktop. A 1-year subscription to the Netgear Insight management platform is included, which allows you to configure and monitor your network using your mobile device from almost anywhere, anytime.

Netgear Insight Management
Gain simple yet powerful control of your network anytime and anywhere, even across multiple locations using a web-based interface or mobile app. NETGEAR Insight handles your network so you can focus on running your business.
Layer 2 / Layer 2+ Support
Powerful Layer 2+ / Layer 3 Lite features enhance performance, usability, and network efficiency.
Powerful Connectivity and Security
  • Advanced VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced per port PoE controls for remote power management of PoE connected devices, including operation scheduling
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
  • Auto “denial-of-service” (DoS) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Egress Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
  • Cable test to troubleshoot connection issues
  • Easy-to-use Web browser-based management GUI available in English, German, and Japanese
  • SNMP v1, v2c, v3 and RMON remote monitoring
Category: Tag:
Key Specs
Inputs/Outputs
24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
2x SFP Gigabit Ethernet
Stackable
No
Switching Bandwidth
52 Gb/s (Non-Blocking)
PoE Power Budget
190 W
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3, Layer 4
Supported Protocols
IGMP Snooping
IPv4
IPv6
Link Aggregation
RADIUS
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
10,000 Bytes
MAC Address Table Size
16K
Multicast Groups
512
Security
Security Features
DoS Attack Prevention
Kensington Lock Support
Performance
Latency
3.1 to 3.7 µs
Forwarding Rate
38.6 Mpps
Switching Bandwidth
52 Gb/s (Non-Blocking)
Priority Queues
8
Packet Buffer
1.5 MB
Computer
Flash Memory
64 MB
CPU
Single-Core:Ā Up to 800 MHz A ( )
Memory
512 MB
Electrical
PoE per Port
30 W
PoE Power Budget
190 W
Power Draw
208.7 W (Max)
11.15 W (Standby)
Input Power
100 to 240 VAC, 50 / 60 Hz at 4 A
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 122°F / 0 to 50°C
Operating Humidity
95%
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
95%
Noise Level
26.1 dB
General
Certifications
No
Cooling System
Fan
Mean Time Between Failures (MTBF)
1.7 Million Hours
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 10.1 x 1.7″ / 440 x 257 x 43.2Ā mm
Weight
6.94Ā lb / 3.15Ā kg
Packaging Info
Package Weight
10.035 lb
Box Dimensions (LxWxH)
20.4 x 13.7 x 4.5″
