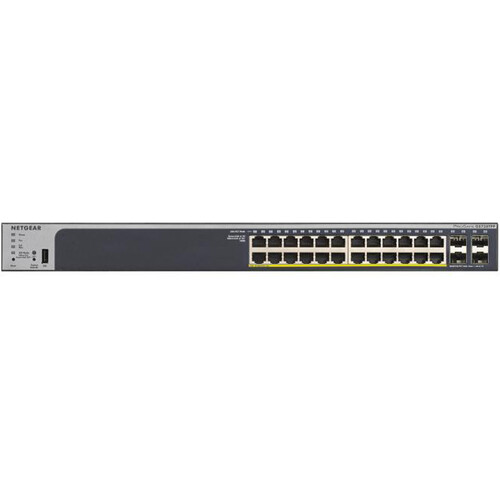

Netgear GS728TXPv3 24-Port Gigabit PoE+ Managed Network Switch

Add to Wishlist
Key Features
  • 24 x Gigabit Ethernet PoE+ Ports
  • 4 x 10G SFP+ Slots
  • 128 Gb/s Switching Capacity
  • 95.24 Mpps Forwarding Rate
  • Rack Mountable Design
  • 190W Power Budget
  • Supports Up to 256 VLANs
  • Layer 2+ & Layer 3 Lite Features
  • 2 x Integrated Fans
  • Cloud Management

AED2,499.00

Add to Wishlist

Netgear GS728TXP-300NAS Overview

Grow your business with powered devices such as IP cameras, access points, and VoIP phones with the GS728TXPv3 24-Port Gigabit PoE+ Managed Switch from Netgear. Designed for easy installation and flexible management, this switch features 24 Gigabit Ethernet ports, each of which supports up to 29W of power with a 190W budget. There are also four SFP+ ports that support up to 10 Gb/s fiber uplinks.

With a 128 Gb/s non-blocking switching capacity and 95.24 Mpps forwarding rate, the GS728TXPv3 delivers smooth and fast performance. It also supports up to 256 VLANs. Extensive Layer 2+ and Layer 3 Lite features add security, efficiency, and easy management. Two cooling fans help to ensure optimal performance without disturbing your environment when mounted onto a rack or desktop. A 1-year subscription to the Netgear Insight management platform is included, which allows you to configure and monitor your network using your mobile device from almost anywhere, anytime.

Netgear Insight Management
Gain simple yet powerful control of your network anytime and anywhere, even across multiple locations using a web-based interface or mobile app. NETGEAR Insight handles your network so you can focus on running your business.
Layer 2 / Layer 2+ Support
Powerful Layer 2+ / Layer 3 Lite features enhance performance, usability, and network efficiency.
Additional Features
  • Advanced VLAN and Private VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling.
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
  • Auto “denial-of-service” (DoS) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
  • Dynamic ARP for increased security targeting a class of Man in the Middle attack
  • Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • Cable test to troubleshoot connection issues
  • SNMP v1, v2c, v3 and RMON remote monitoring
SKU: GS728TXP-300NAS Category: Tag:
Key Specs
Inputs/Outputs
24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
4x SFP+ 10 GbE
Stackable
No
Switching Bandwidth
128 Gb/s (Non-Blocking)
PoE Power Budget
190 W
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
Auto-MDIX/MDI
IGMP Snooping
IPv4
IPv6
Link Aggregation
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
10,000 Bytes
MAC Address Table Size
16K
Multicast Groups
512
Security
Security Features
DHCP Snooping
DoS Attack Prevention
Storm Control
Performance
Latency
2.1 to 3.3 µs
Forwarding Rate
95.24 Mpps
Switching Bandwidth
128 Gb/s (Non-Blocking)
Priority Queues
8
Packet Buffer
1.5 MB
Computer
Flash Memory
64 MB
CPU
Single-Core: Up to 800 MHz A
Memory
512 MB
Electrical
PoE per Port
29 W
PoE Power Budget
190 W
Power Draw
231.00 W (Max)
20.00 W (Idle)
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 122°F / 0 to 50°C
Operating Humidity
90%
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
95%
Noise Level
26.8 dB
General
Certifications
FCC, CE, RCM, ICES, VCCI, KC, BSMI, UKCA
Cooling System
Fan
Mean Time Between Failures (MTBF)
1.3 Million Hours
Indicator Lights
Yes
Rack Mountable
Yes
Dimensions
17.3 x 10.1 x 1.7″ / 440 x 257 x 43.2 mm
Weight
8.4 lb / 3.8 kg
Packaging Info
Package Weight
9.995 lb
Box Dimensions (LxWxH)
20.8 x 14.2 x 4.2″
