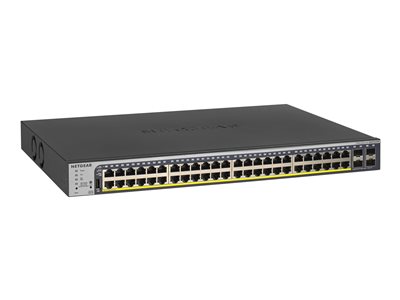

NETGEAR GS752TP – v2 – switch – 48 ports – smart – rack-mountable GS752TP-200NAS

Availability:

10 in stock
Add to Wishlist

AED2,399.00

10 in stock

Add to Wishlist

NETGEAR 52-Port Gigabit Ethernet Smart Managed Pro PoE Switch (GS752TP) – with 48 x PoE+ @ 380W, 4 x 1G SFP, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection



Overview

The NETGEAR GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Smart Managed Pro Switches offer 190W, 380W or 760W PoE budget across 24 or 48 ports and 4 dedicated SFP ports for Wireless converged networks, IP surveillance and Video-over-IP deployments. Advanced features such as IPv4/IPv6 Layer 3 static routing, DiffServ QoS, LACP bonding and Spanning Tree will satisfy even the most advanced small and medium business networks.

Designed for converged network, big or small

Gigabit Speed with all ports capable of support either PoE or PoE+. Auto Voice VLAN for fast and reliable deployment of VoIP. Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance system. Static routing, helps to route internal traffic for more efficient use of network resources. IGMP and MLD snooping, providing advanced multicast filtering.

Build a future-proof network with NETGEAR

Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups. Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network. PoE+ support on all models with GS728TPP support PoE+ on all ports, providing flexibility in the future to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network. 4 dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for network virtualization. Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market. Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS – DiffServ). Dynamic VLAN assignment for easy user authentication and location-independent access to network.

Network development made easy

Auto Voice VLAN for easy development of VoIP. Auto Video for simple deployment of IP Surveillaince. ACL Wizard for a guided tour to set up your network access control. Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade. PoE Timer for scheduling on/off time of your PoE powered devices. With PD and PoE capability on the same device, GS516TP make network switch deployment truly free from AC power outlet. It provides maximum flexibility for network build-up, modifications and re-layout.

SKU: GS752TP-200NAS Category: Tags: , , ,

Specifications

General
Device Type Switch – 48 ports – L3 – smart
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 380 W
Performance Bandwidth: 104 Gbps Forwarding performance (64-byte packet size): 77.38 Mpps
Capacity ACL: 100 ARP entries: 512 VLANs supported: 256 IPv4 routes (static): 32 IPv6 routes (static): 32 IGMP multicast groups: 512
MAC Address Table Size 16K entries
Jumbo Frame Support 10KB
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Encryption Algorithm TLS
Authentication Method RADIUS, TACACS+
Features DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Multicast VLAN Registration (MVR), Generic Attribute Registration Protocol (GARP), GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, Denial of Service (DoS) protection, Weighted Round Robin (WRR), Auto VoIP, MAC lockdown
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor 1: 700 MHz
RAM 128 MB
Flash Memory 32 MB
Status Indicators Port transmission speed, PoE, link/activity
Expansion / Connectivity
Interfaces 48 x 10/100/1000 Base-T RJ-45 PoE+ 4 x 1000Base-X SFP 1 x USB
Power
Power Device Internal power supply
Installed Qty 1
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
MTBF 1,737,411 hours
Compliant Standards EN 60950, EN55024, CSA 22.2 No. 950, CB, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A, FCC CFR47 Part 15 B Class A, IEC 950, ANSI C63.4-2014, EN 55022/CISPR 22 Class A, ICES-003:2016 issue 6 Class A, AS/NZS CISPR22:2009+A1:2010 Class A, AN/NZS 60950.1:2015, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
Localization Americas
Dimensions & Weight
Width 17.3 in
Depth 12.2 in
Height 1.7 in
Weight 10.87 lbs
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next business day Technical support – phone consulting – 90 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 90% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Humidity Range Storage 95% (non-condensing)
General
Authentication Method RADIUS, TACACS+
Capacity ACL: 100 ¦ ARP entries: 512 ¦ VLANs supported: 256 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ IGMP multicast groups: 512
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Device Type Switch – 48 ports – L3 – smart
Enclosure Type Rack-mountable
Encryption Algorithm TLS
Features DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Multicast VLAN Registration (MVR), Generic Attribute Registration Protocol (GARP), GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, Denial of Service (DoS) protection, Weighted Round Robin (WRR), Auto VoIP, MAC lockdown
Flash Memory 32 MB
Jumbo Frame Support 10KB
MAC Address Table Size 16K entries
Performance Bandwidth: 104 Gbps ¦ Forwarding performance (64-byte packet size): 77.38 Mpps
PoE Budget 380 W
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
Processor 1: 700 MHz
RAM 128 MB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Routing Protocol Static IP routing
Status Indicators Port transmission speed, PoE, link/activity
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 12.2 in
Height 1.7 in
Weight 10.87 lbs
Width 17.3 in
Environmental Parameters
Humidity Range Operating 90% (non-condensing)
Humidity Range Storage 95% (non-condensing)
Max Operating Temperature 122 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -4 °F
Expansion / Connectivity
Interfaces 48 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 1000Base-X SFP ¦ 1 x USB
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – phone consulting – 90 days
Miscellaneous
Compliant Standards EN 60950, EN55024, CSA 22.2 No. 950, CB, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A, FCC CFR47 Part 15 B Class A, IEC 950, ANSI C63.4-2014, EN 55022/CISPR 22 Class A, ICES-003:2016 issue 6 Class A, AS/NZS CISPR22:2009+A1:2010 Class A, AN/NZS 60950.1:2015, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
Localization Americas
MTBF 1,737,411 hours
Rack Mounting Kit Included
Power
Installed Qty 1
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
