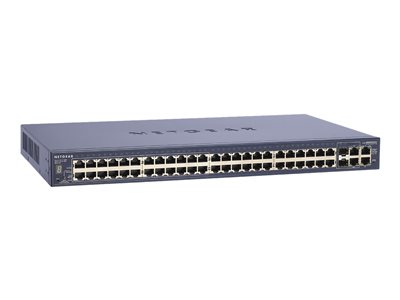

NETGEAR GS752TPS 52-Port Gigabit PoE Smart Managed Switch – switch – 48 ports – smart – rack-mountable GS752TPSB-100NAS
10 in stock
AED4,399.00
10 in stock
NETGEAR 52-Port Gigabit Stackable Smart Managed Pro PoE Switch (GS752TPSB) – with 48 x PoE/PoE+ @ 384W, 6 x 1G/2.5G SFP, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection
Overview
NETGEAR expands its line of award-winning ProSAFE Smart Switches with a suite of 10/100 Stackable Smart Switches. The ProSAFE Stackable Smart Switches adds the flexibility of modular growth paired with more powerful management feature set and still gives you the ease of use and affordability you expect from ProSAFE Smart Switches. With options of 24 or 48 10/100 ports as well as PoE, the Stackable Smart Switches offer 4 Gigabit Ethernet ports for high speed connectivity. Two of the Gigabit Ethernet ports offer the option of fiber connectivity via Small Form-factor Pluggable (SFP) GBIC slots for long distance links. This family of switches deliver performance and scalability through a 4Gbps, dual-ring, resilient stacking architecture with the ability to mix and match to stack up to six units or 192 10/100 ports- and manage them all at a single point! The FS752TPS offer PoE on 24 of its 48 ports to drive VoIP phones, wireless access points or IP security cameras. The non-blocking design of all the switches deliver simultaneous, full wire-speed, low-latency throughput to all ports. Shipped ready to go straight out of the box, they deliver switching that’s easy to set up, stack-up and use.
Stacking for scalability and high availability
The stackable smart switch uses 2 dedicated dual-purpose ports in the front of the switch for stacking or uplink. The stacking function offers a 10 Gbps, dual-ring, highly redundant stacking bus that carries intra-stack traffic and provide the highest level of resilience, forming a virtual chassis for easy management under a single IP address.
Comprehensive and advanced feature sets
This stackable smart switch comes with a complete suite of advanced features for more robust security, higher quality of service and high availability. This switch is equipped with highly advanced features such as access control lists (ACL), static routing, rate limiting, IGMP snooping, and dynamic VLAN assignment among others to provide a small and medium-sized business with a network that is geared for growth and network applications. Friendly to converged network with voice and video, the stackable smart switch offers auto voice and auto video features that automatically configure QoS, security and VLAN settings for IP phones and IP cameras.
IPv6 support
In order to accommodate the move by Internet service providers to IPv6 addresses, the Gigabit stackable smart switch expand the IPv6 support beyond management only to QoS, ACL and multicast. It means that your network will benefit from the IPv6 enhancements and is future-proofed.
Specifications
| Device Type | Switch – 48 ports – smart – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Capacity | Virtual interfaces (VLANs): 256 |
| MAC Address Table Size | 16K entries |
| Max Units In A Stack | 6 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP |
| Features | Flow control, power over Ethernet (PoE), VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, firmware upgradable, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), MLD snooping, PoE+, LLDP support, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, static routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| RAM | 128 MB DDR SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | Port transmission speed, power, PoE, link/activity, fan |
| Interfaces | 48 x 1000Base-T RJ-45 PoE 2 x 1000Base-T RJ-45 4 x SFP (mini-GBIC) |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Power Consumption Operational | 526.8 Watt |
| Rack Mounting Kit | Included |
| Compliant Standards | C-Tick, EN 60950, EN55022, VCCI Class A ITE, EN55024, UL 60950, CB, CCC, FCC Part 15 A |
| Localization | North America |
| Width | 17.3 in |
| Depth | 12.2 in |
| Height | 1.7 in |
| Weight | 12.13 lbs |
| Service & Support | NETGEAR lifetime warranty |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| General | |
|---|---|
| Capacity | Virtual interfaces (VLANs): 256 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch – 48 ports – smart – stackable |
| Enclosure Type | Rack-mountable 1U |
| Features | Flow control, power over Ethernet (PoE), VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, firmware upgradable, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), MLD snooping, PoE+, LLDP support, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, static routing |
| Flash Memory | 32 MB |
| MAC Address Table Size | 16K entries |
| Max Units In A Stack | 6 |
| Ports | 48 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| RAM | 128 MB DDR SDRAM |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLD |
| Status Indicators | Port transmission speed, power, PoE, link/activity, fan |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 12.2 in |
| Height | 1.7 in |
| Weight | 12.13 lbs |
| Width | 17.3 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Max Operating Temperature | 122 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 32 °F |
| Min Storage Temperature | -4 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 48 x 1000Base-T RJ-45 PoE ¦ 2 x 1000Base-T RJ-45 ¦ 4 x SFP (mini-GBIC) |
| Manufacturer Warranty | |
|---|---|
| Service & Support | NETGEAR lifetime warranty |
| Miscellaneous | |
|---|---|
| Compliant Standards | C-Tick, EN 60950, EN55022, VCCI Class A ITE, EN55024, UL 60950, CB, CCC, FCC Part 15 A |
| Localization | North America |
| Rack Mounting Kit | Included |
| Power | |
|---|---|
| Power Consumption Operational | 526.8 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
