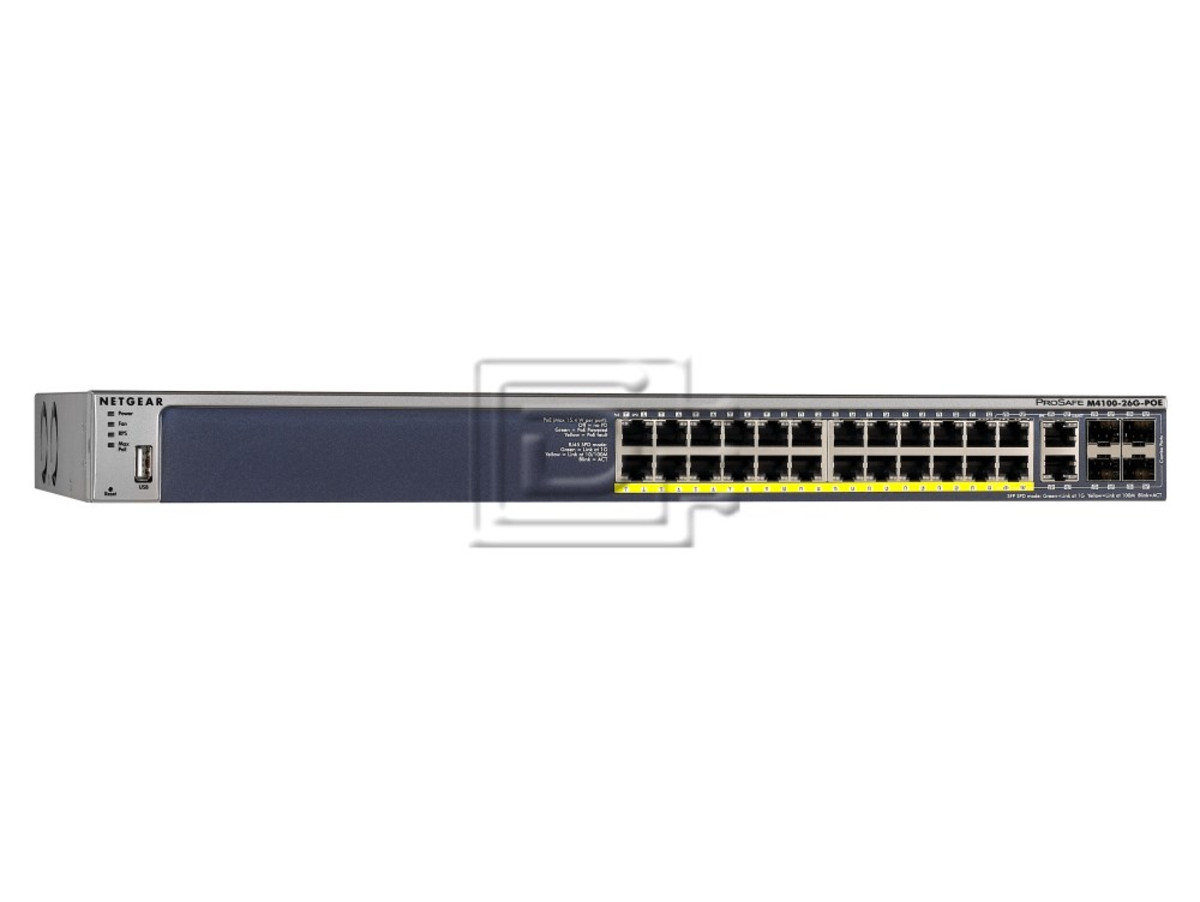

NetGear M4100-26G-POE 26-Port Gigabit Switch


Interface Types:Ā Ethernet RJ45, SFP

Electrical Interface:Ā Ethernet Fast – 100Mbps

Bays/Ports/Slots:Ā 26

U Height:Ā 1U

Voltage:Ā 12V

AED4,399.00

NetGear ProSAFE Intelligent Edge M4100 Series M4100-26G-POE / GSM7226LP 26-Port Gigabit PoE Managed Switch – Brand New

NetGear ProSAFE Intelligent Edge M4100 Series M4100-26G-POE / GSM7226LP 26-Port Gigabit PoE Rackmount Managed Switch – Brand New

Alt Model/Part No: GSM7226LP

ProSAFE Intelligent Edge Managed Switches
The Intelligent Edge M4100 series switches are NETGEAR fully managed switches for 100M/1G access layer in SMB, Small Enterprise and Campus networks.

The M4100 series delivers the best combination of performance, security and convergence at a high-value price point – unlike competitive, entry-level “SMB” solutions

Redundant power supply options (RPS), full PoE+ external power supply options (EPS), Private VLANs, LLDP-MED and MVR take a scalable, future-proof approach to delivering network services for Wireless access points, IP phones and IP cameras infrastructures.

NETGEAR Intelligent Edge M4100 series key features:

  • Broad portfolio of access layer solutions, ranging from 12 ports to 50 ports Fast and Gigabit Ethernet
  • 802.3af PoE and 802.3at PoE+ best fit, ranging from 120W to 1,440W power budget per switch
  • IPv4 routing in Layer 2+ package (L3 static routing) with IPv4/IPv6 ACLs and QoS
  • High value L2/L3 tables with 16K MAC, 512 ARP/NDP, 9K jumbo frames, 1K VLANs, 64 static L3 routes
  • Redundant power supply option for uninterruptible operation (RPS)
  • External power supply option for PoE and PoE+ full-power applications (EPS)
  • Green Ethernet compliance for maximum power efficiency

NETGEAR Intelligent Edge M4100 series software features:

  • Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol detection
  • Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration
  • IPv4/IPv6 Multicast filtering with IGMP and MLD snooping, Querier mode and MVR for simplified video deployments
  • Advanced classifier-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) inbound security and prioritization

NETGEAR Intelligent Edge M4100 series link aggregation and channeling features:

  • Flexible Port-Channel / LAG (802.3ad) implementation for maximum compatibility, fault tolerance and load sharing with any type of Ethernet channeling
  • Including static (selectable hashing algorithms) or dynamic LAGs (LACP)

NETGEAR Intelligent Edge M4100 series management features:

  • DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
  • Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN implementation
  • Selectable serial RS232 DB9 and Mini-USB port for management console
  • Standard USB port for local storage, configuration or image files
  • Dual firmware image and configuration file for updates with minimum service interruption
  • Industry standard command line interface (CLI) for IT admins used to other vendors commands
  • Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
  • Single-pane-of-glass NMS300 management platform with mass-configuration support
SKU: M4100-26G-POE Category:
Intelligent Edge M4100 Series
Model/Part No. M4100-26G-POE
Alt Model/Part No. GSM7226LP
RJ45 Ports 26 x 10/100/1000
Fiber SFP (100/1000) 4 x SFP
Power over Ethernet (Poe/PoE+) 24 x PoE+ 802.3at
PoE Budget (Watts) 192W / 380W EPS
Redundant Power Supply RPS
Powered by PoE+ (Passthrough) N/A
Feature Set Layer 2+ (static routing)
Form Factor Rack 1U – Standalone




ROHS Compliant

Alternate MPNs:Ā GSM7226LP

Weight:Ā 8.5Ā lb
