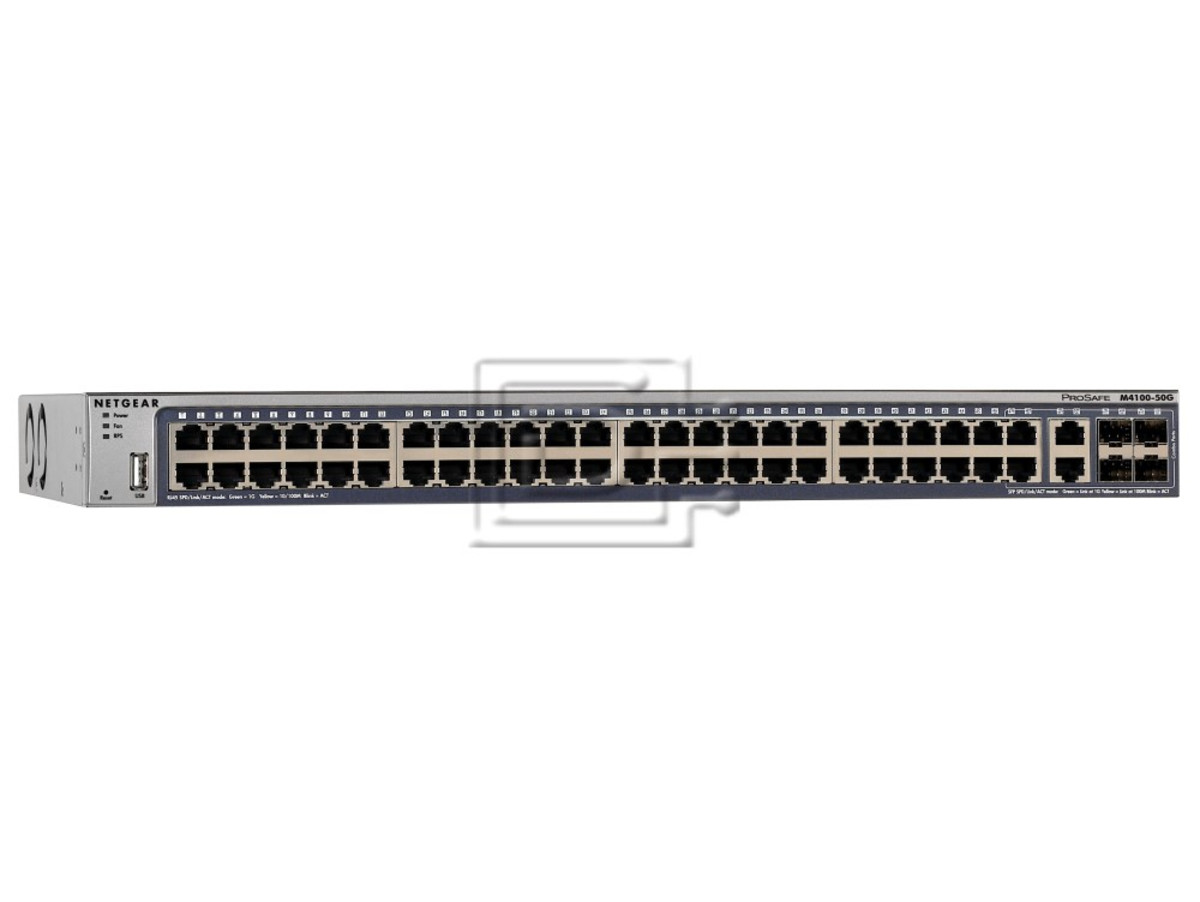

NetGear ProSAFE Intelligent Edge M4100 Series M4100-50G / GSM7248 50-Port Gigabit Managed Switch – Brand New
NetGear ProSAFE Intelligent Edge M4100 Series M4100-50G / GSM7248 50-Port Gigabit Rackmount Managed Switch – Brand New
Alt Model Number: GSM7248, GSM7248v2h2, GSM7248-v2h2
ProSAFE Intelligent Edge Managed Switches
The Intelligent Edge M4100 series switches are NETGEAR fully managed switches for 100M/1G access layer in SMB, Small Enterprise and Campus networks.
The M4100 series delivers the best combination of performance, security and convergence at a high-value price point – unlike competitive, entry-level “SMB” solutions
Redundant power supply options (RPS), full PoE+ external power supply options (EPS), Private VLANs, LLDP-MED and MVR take a scalable, future-proof approach to delivering network services for Wireless access points, IP phones and IP cameras infrastructures.
NETGEAR Intelligent Edge M4100 series key features:
- Broad portfolio of access layer solutions, ranging from 12 ports to 50 ports Fast and Gigabit Ethernet
- 802.3af PoE and 802.3at PoE+ best fit, ranging from 120W to 1,440W power budget per switch
- IPv4 routing in Layer 2+ package (L3 static routing) with IPv4/IPv6 ACLs and QoS
- High value L2/L3 tables with 16K MAC, 512 ARP/NDP, 9K jumbo frames, 1K VLANs, 64 static L3 routes
- Redundant power supply option for uninterruptible operation (RPS)
- External power supply option for PoE and PoE+ full-power applications (EPS)
- Green Ethernet compliance for maximum power efficiency
NETGEAR Intelligent Edge M4100 series software features:
- Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol detection
- Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration
- IPv4/IPv6 Multicast filtering with IGMP and MLD snooping, Querier mode and MVR for simplified video deployments
- Advanced classifier-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) inbound security and prioritization
NETGEAR Intelligent Edge M4100 series link aggregation and channeling features:
- Flexible Port-Channel / LAG (802.3ad) implementation for maximum compatibility, fault tolerance and load sharing with any type of Ethernet channeling
- Including static (selectable hashing algorithms) or dynamic LAGs (LACP)
NETGEAR Intelligent Edge M4100 series management features:
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
- Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN implementation
- Selectable serial RS232 DB9 and Mini-USB port for management console
- Standard USB port for local storage, configuration or image files
- Dual firmware image and configuration file for updates with minimum service interruption
- Industry standard command line interface (CLI) for IT admins used to other vendors commands
- Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
- Single-pane-of-glass NMS300 management platform with mass-configuration support
