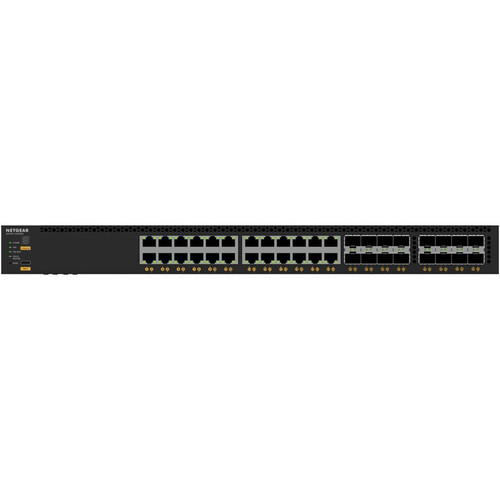

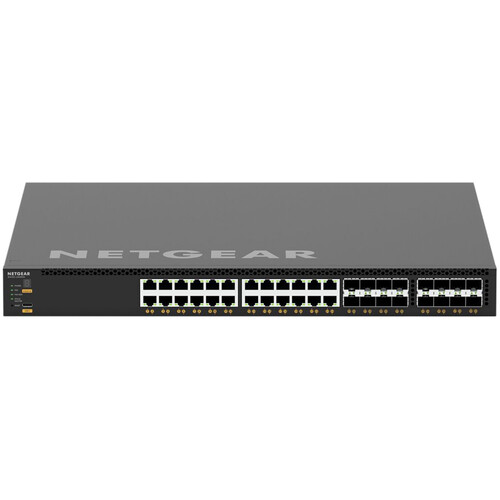

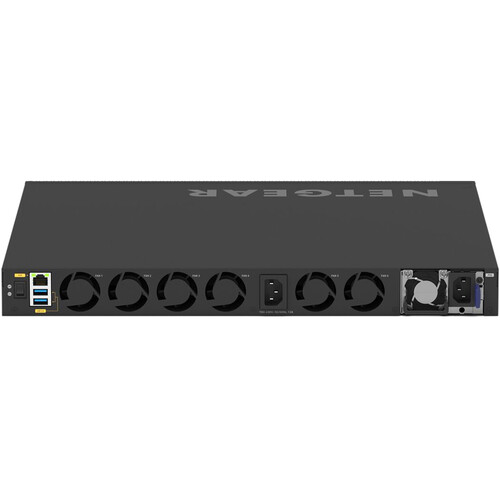

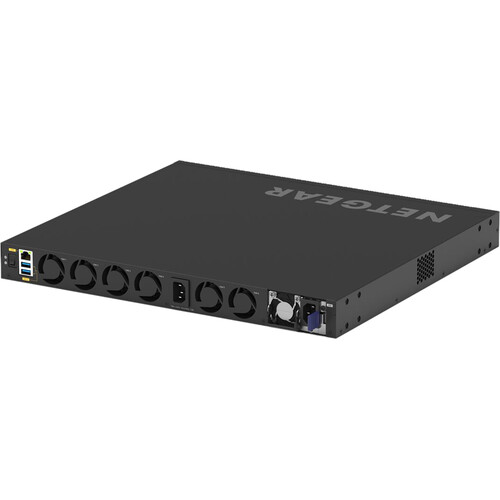

Netgear M4350-24X8F8V 24-Port 10G PoE++ Compliant Managed AV Network Switch

Add to Wishlist
Key Features
  • 24 x 10G Ethernet PoE++ Ports
  • 8 x 10G SFP+ Ports
  • 8 x 25G SFP28 Ports
  • 1.04 Tb/s Switching Capacity
  • 773.76 Mpps Forwarding Rate
  • Rackmount Design
  • 290W Power Budget
  • Intelligent Fan Cooling
  • Optimized for AV-Over-IP Multicasts
  • Netgear Engage Controller Support

AED29,999.00

Add to Wishlist

Netgear XSM4340V-100NES Overview

Grow your business by expanding your network capacity with the Netgear M4350-24X8F8V 24-Port 10G PoE++ Compliant Managed AV Network Switch. Designed primarily for high-bandwidth AV and IT applications, this network switch includes twenty-four 10G Ethernet PoE++ compliant ports, each providing up to 90W of power to compatible devices with a 290W budget.

With Netgear’s IGMP Plus, the M4350-24X8F8V switch delivers smooth video-over-IP multicasts with little to no setup required. Eight 10G SFP+ ports are available alongside eight 25G SFP28 ports for fiber uplinks and stacking. Installing a separately purchased second power supply provides 1+1 redundancy and can increase your PoE budget to up to 1770W. This switch works with Netgear’s Engage Controller management platform, in addition to standard command line and web-based interfaces.

Performance
With a 1.04 Tb/s switching capacity and 773.76 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.
Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
The intelligent fans may be configured in Quiet Mode help to minimize noise or Cool Mode for maximum cooling. Mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality automatically connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.
Fast, Easy Configuration
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
SKU: XSM4340V-100NES Category: Tag:
Key Specs
Inputs/Outputs
24x RJ45 10 GbE PoE++ (100 W, 802.3bt Type 4)
8x SFP+ 10 GbE WAN
8x SFP28 25 GbE WAN
1x RJ45 Gigabit Ethernet LAN
1x USB-C
2x USB-A
Stackable
No
Switching Bandwidth
1.04 Tb/s
PoE Power Budget
290 W
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
Auto-MDIX/MDI
DHCP Server
DoS
IGMP Snooping
IPv4
IPv6
Link Aggregation
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
12,000 Bytes
MAC Address Table Size
16K
Multicast Groups
512
Security
Security Features
DoS Attack Prevention
Performance
Latency
1 to 2.7 µs
Forwarding Rate
773.76 Mpps
Switching Bandwidth
1.04 Tb/s
Packet Buffer
64 Mb
Computer
CPU
Quad-Core: Up to 1.8 GHz Cortex A57
Memory
4 GB DDR4
Electrical
PoE per Port
90 W
PoE Power Budget
290 W
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
General
Certifications
No
Storage Conditions
24 to 158°F / -4 to 70°C
Noise Level
53.3 dB
Cooling System
Fan
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 15.7 x 1.7″ / 440 x 400 x 43.2 mm
Weight
15.96 lb / 7.24 kg
Packaging Info
Package Weight
23 lb
Box Dimensions (LxWxH)
23.5 x 23 x 4″
