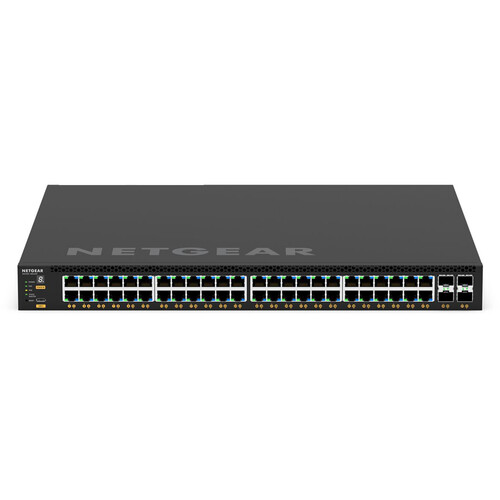

Netgear M4350-48G4XF 48-Port Gigabit PoE+ Compliant Managed AV Network Switch

Add to Wishlist
Key Features
  • 48 x Gigabit Ethernet PoE+ Ports
  • 4 x 10G SFP+ Ports
  • 176 Gb/s Switching Capacity
  • 130.94 Mpps Forwarding Rate
  • Rackmount Design
  • 236W Power Budget
  • 2 x Secondary PSU Slots
  • Intelligent Fan Cooling
  • Optimized for AV-Over-IP Multicasts
  • Netgear Engage Controller Support

AED16,499.00

Add to Wishlist

Netgear GSM4352 Overview

Grow your business by expanding your network capacity with the Netgear M4350-48G4XF 48-Port Gigabit PoE+ Compliant Managed AV Network Switch. Designed primarily for AV and IT applications, this network switch includes 48 Gigabit-speed Ethernet PoE+ compliant ports, each providing up to 30W of power to compatible devices with a 236W budget.

With Netgear’s IGMP Plus, the M4350-48G4XF switch delivers smooth video-over-IP multicasts with little to no setup required. Four 10G SFP+ ports are available for fiber uplinks and stacking. Installing up to two separately purchased secondary power supplies provides 1+1 redundancy, EPS share, and can increase your PoE budget to up to 1440W. This switch works with Netgear’s Engage Controller management platform, in addition to standard command line and web-based interfaces.

Performance
With a 176 Gb/s switching capacity and 130.94 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.
Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
The intelligent fans may be configured in Quiet Mode to help minimize noise or Cool Mode for maximum cooling. Mounting ears are included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.
Fast, Easy Configuration
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
Category: Tag:
Key Specs
Inputs/Outputs
48x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
4x SFP+ 10 GbE WAN
1x RJ45 Gigabit Ethernet LAN
1x USB-C
2x USB-A
Stackable
No
Switching Bandwidth
176 Gb/s
PoE Power Budget
236 W
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
Auto-MDIX/MDI
DHCP Server
DoS
IGMP Snooping
IPv4
IPv6
Link Aggregation
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
12,000 Bytes
MAC Address Table Size
16K
Multicast Groups
512
Security
Security Features
DoS Attack Prevention
Performance
Latency
0.7 to 2.2 µs
Forwarding Rate
130.94 Mpps
Switching Bandwidth
176 Gb/s
Packet Buffer
32 Mb
Computer
CPU
Quad-Core: Up to 1.8 GHz Cortex A57
Memory
2 GB DDR4
Electrical
PoE per Port
30 W
PoE Power Budget
236 W
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
General
Certifications
No
Storage Conditions
24 to 158°F / -4 to 70°C
Noise Level
32.0 dB
Cooling System
Fan
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 15.7 x 1.7″ / 440 x 400 x 43.2 mm
Weight
15.85 lb / 7.19 kg
Packaging Info
Package Weight
23.47 lb
Box Dimensions (LxWxH)
23.5 x 22.6 x 3.9″
