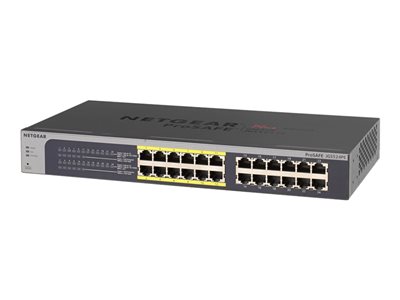

NETGEAR Plus JGS524PE – switch – 24 ports – managed – rack-mountable JGS524PE-100NAS


Interface Types:Ā Ethernet RJ45

Electrical Interface:Ā Ethernet Gigabit – 1Gbps

On-Board Cache:Ā 6Mb

Bays/Ports/Slots:Ā 24

U Height:Ā 1U

Voltage:Ā 110-240V Multi

AED1,799.00

NetGear ProSAFE JGS524PE 24-Port Gigabit Web Managed Plus Ethernet Switch with 12-Port PoE – Brand New

NetGear ProSAFE JGS524PE 24-Port Gigabit Web Managed Plus Rackmount Ethernet Switch with 12-Port PoE – Brand New

Control and Configure Beyond Plug-and-Play Connectivity
Today’s growing businesses rely more on their network to carry out mission-critical business activities. Deployment of VoIP and IP surveillance needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. However, companies do not necessarily have more money or advanced training to deal with complex managed switches.

NETGEARĀ® ProSAFEĀ® Gigabit Web Managed (Plus) Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. ProSAFE Web Managed (Plus) switches come in a variety of configurations ranging from 5 port desktop to 24 port rackmount. Some models support Power-over-Ethernet (PoE) and can power devices such as IP phones, IP surveillance cameras and wireless access points with just an Ethernet cable; perfect for low cost PoE deployments. ProSAFE Web Managed (Plus) Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.

Highlights

  • Enable network configuration and management at the price point of Unmanaged Switches
  • Gigabit connection delivers up to 2000 Mbps of dedicated, non-blocking bandwidth per port
  • Simple, yet useful network set-up on top of plug-and-play connectivity
  • Flexible management via PC-based Utility Tool
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • Auto ā€œdenial-of-serviceā€ (DoS) prevention
  • Troubleshoot connection issues via cable test
  • Loop detection and broadcast storm controls
  • IGMP snooping v1, v2 and v3 support for multicast optimization
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • Port trunking for bigger uplink bandwidth
  • Jumbo frame support
  • Energy Efficient Ethernet (IEEE802.3az) support for maximum power savings
SKU: JGS524PE-100NAS Category: Tags: , , ,

Specifications

General
Device Type Switch – 24 ports – managed
Enclosure Type Desktop, rack-mountable
Subtype Gigabit Ethernet
Ports 12 x 10/100/1000 (PoE) + 12 x 10/100/1000
Power Over Ethernet (PoE) PoE
PoE Budget 100 W
Features Flow control, layer 2 switching, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, Quality of Service (QoS), reset button
Compliant Standards IEEE 802.3af
Status Indicators Port transmission speed, power, PoE, link/activity, fan
Expansion / Connectivity
Interfaces 12 x 1000Base-T RJ-45Ā 12 x 1000Base-T RJ-45 PoE – 15.4 W
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
Miscellaneous
Compliant Standards CB, UL 60950-1, FCC Part 15 A, C-Tick Class A, KCC Class A, VCCI Class A, CCC Class A
Localization North America
Software / System Requirements
Software Included Drivers & Utilities
Dimensions & Weight
Width 12.9 in
Depth 6.7 in
Height 1.7 in
Weight 4.06 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 90% (non-condensing)
General
Compliant Standards IEEE 802.3af
Device Type Switch – 24 ports – managed
Enclosure Type Desktop, rack-mountable
Features Flow control, layer 2 switching, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, Quality of Service (QoS), reset button
PoE Budget 100 W
Ports 12 x 10/100/1000 (PoE) + 12 x 10/100/1000
Power Over Ethernet (PoE) PoE
Status Indicators Port transmission speed, power, PoE, link/activity, fan
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 6.7 in
Height 1.7 in
Weight 4.06 lbs
Width 12.9 in
Environmental Parameters
Humidity Range Operating 10 – 90% (non-condensing)
Max Operating Temperature 122 °F
Min Operating Temperature 32 °F
Expansion / Connectivity
Interfaces 12 x 1000Base-T RJ-45 ¦ 12 x 1000Base-T RJ-45 PoE – 15.4 W
Miscellaneous
Compliant Standards CB, UL 60950-1, FCC Part 15 A, C-Tick Class A, KCC Class A, VCCI Class A, CCC Class A
Localization North America
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
Software / System Requirements
Software Included Drivers & Utilities
