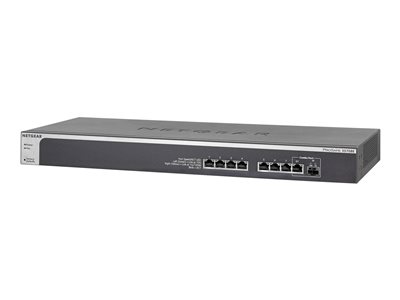

NETGEAR Plus XS708Ev2 – switch – 8 ports – managed – rack-mountable XS708E-200NES

Availability:

10 in stock


AED2,999.00

10 in stock

NETGEAR 8-Port 10G Ethernet Smart Managed Plus Switch (XS708E) – with 1 x 10Gigabit SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection



The 2nd Generation NETGEAR ProSAFE XS708Ev2 is a powerful Web Managed (Plus) Switch that includes 8 ports of 10-Gigabit connectivity (8 copper with 1 shared combo copper/SFP+ Fiber port) for business class networks. NETGEAR’s 10-Gigabit Web Managed (Plus) Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. They can be used at the “center of a small business network” or as an aggregation / access switch in a larger organization including workgroup access. The XS708Ev2 provides configurable L2 network features allowing SMB customers to deploy virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, which require higher reliability, speed, and performance. It delivers unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost, and is plug-and-play out of the box, or can be easily configured for advanced features via the Web browser-based management GUI. The XS708Ev2 is ideal for smaller workgroups that need high-bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation.

SKU: XS708E-200NES Category: Tags: , ,

Specifications

General
Capacity VLANs supported: 128 ¦ IGMP groups: 128 ¦ Jumbo frame size: up to 9 KB ¦ LAG groups: 4 ¦ Concurrent tunneled ports:
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az
Device Type Switch – 8 ports – managed
Enclosure Type Desktop, rack-mountable 1U
Features Flow control, layer 2 switching, trunking, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Quality of Service (QoS), Jumbo Frames support, IPv4 support, DHCP client, Energy Efficient Ethernet, loop prevention, security lock slot (cable lock sold separately), Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, cable test, Link Aggregation, rate limit
Jumbo Frame Support Yes
MAC Address Table Size 16K entries
Performance Switching fabric bandwidth: 160 Gbps ¦ Forwarding performance (64-byte packet size): 119 Mfps
Ports 8 x 10 Gigabit Ethernet + 1 x combo SFP+
Remote Management Protocol HTTP
Status Indicators Port status, power, link/activity, fan, link/speed
Subtype 10 Gigabit Ethernet
Dimensions & Weight
Depth 8 in
Height 1.7 in
Weight 6.17 lbs
Width 17.3 in
Environmental Parameters
Humidity Range Operating 0 – 90% (non-condensing)
Humidity Range Storage 0 – 95% (non-condensing)
Max Operating Temperature 122 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -4 °F
Expansion / Connectivity
Interfaces 8 x 10GBase-T RJ-45 ¦ 1 x SFP+
Manufacturer Warranty
Service & Support Technical support – phone consulting – 90 days ¦ Technical support – web support – lifetime ¦ Limited warranty – replacement – lifetime – response time: next business day
Miscellaneous
Compliant Standards C-Tick, CISPR 22 Class A, cUL, EN55022 Class A, UL 60950, CB, CCC, FCC Part 15 A, KC, VCCI Class A
Included Accessories Rubber feet
Localization Latin America, North America, Europe
MTBF 397,731 hours
Rack Mounting Kit Included
Power
Power Consumption Operational 43.4 Watt
Power Device Internal power supply
Voltage Required AC 100/230 V (50/60 Hz)
Software / System Requirements
OS Required Microsoft Windows Vista / XP / 7 / 8
Software Included Drivers & Utilities, ProSAFE Plus Configuration Utility
