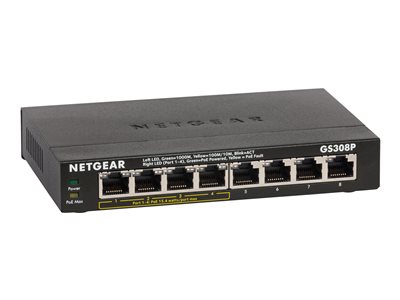

NETGEAR SOHO Gigabit Ethernet Switch GS308P – switch – 8 ports – unmanaged GS308P-100NAS

Availability:

10 in stock
Add to Wishlist

499.00 د.إ

10 in stock

Add to Wishlist

NETGEAR 8-Port Gigabit Ethernet Unmanaged PoE Switch (GS308P) – with 4 x PoE @ 55W, Desktop, Sturdy Metal Fanless Housing



Overview

The NETGEAR 8-Port Gigabit Ethernet Switch with 4-Ports PoE, plug-and-play, compact design, and auto-sensing ports provide easy, reliable, and affordable connectivity for your home or small office network. PoE ports allow for powering IP security cameras, VOIP/Internet-based phones, wireless access points, etc., as well as non-PoE devices, providing power as needed on ports 1-4. LEDs indicate power, PoE maximum power, link activity, speed, PoE active, and PoE fault for ease of use. Other features include a rugged metal case, auto-MDI/MDIX (eliminating the need for crossover cables), jumbo packet support, and energy-e¬fficient technology for power savings (IEEE 802.3az and short cable power reduction).

  • 8 copper 10/100/1000 Mbps RJ-45 Ethernet ports
  • Ports 1-4 are PoE 802.af capable of providing up to 15.4W per port (but not to exceed 53W total across all active PoE ports)
  • Power up to 4 PoE-capable devices (wireless access points, VOIP phones, IP security cameras, etc)
  • Fanless design for silent operation
  • LEDs for Power/PoE Max/Port Speed
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • 802.3x Flow Control
  • 802.1p QoS and DSCP
  • 802.3az Energy Efficient Ethernet (EEE) compliance
  • Ideal for small office and home networks
SKU: GS308P-100NAS Category: Tags: , , ,

Specifications

General
Device Type Switch – 8 ports – unmanaged
Enclosure Type Desktop, wall-mountable
Subtype Gigabit Ethernet
Ports 4 x 10/100/1000 (PoE) + 4 x 10/100/1000
Power Over Ethernet (PoE) PoE
PoE Budget 53 W
Performance Bandwidth: 16 Gbps
MAC Address Table Size 4K entries
Jumbo Frame Support 9720 bytes
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Green Ethernet, fanless, Energy Efficient Ethernet, security lock slot (cable lock sold separately), 1.5MB packet buffer
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az
Status Indicators Port status, power, PoE, link/activity
Expansion / Connectivity
Interfaces 4 x 1000Base-T RJ-45 PoE – 15.4 W 4 x 1000Base-T RJ-45
Power
Power Device External power adapter
Voltage Required DC 48 V
Electric Current Required 1.25 A
Power Consumption Operational 60 Watt
Miscellaneous
MTBF 2,244,211 hours
Compliant Standards CB, CCC, FCC Part 15 A
Localization North America
Dimensions & Weight
Width 6.2 in
Depth 4 in
Height 1.1 in
Weight 16.22 oz
Manufacturer Warranty
Service & Support Limited warranty – 3 years Technical support – 90 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 – 90% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 95%
General
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az
Device Type Switch – 8 ports – unmanaged
Enclosure Type Desktop, wall-mountable
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Green Ethernet, fanless, Energy Efficient Ethernet, security lock slot (cable lock sold separately), 1.5MB packet buffer
Jumbo Frame Support 9720 bytes
MAC Address Table Size 4K entries
Performance Bandwidth: 16 Gbps
PoE Budget 53 W
Ports 4 x 10/100/1000 (PoE) + 4 x 10/100/1000
Power Over Ethernet (PoE) PoE
Status Indicators Port status, power, PoE, link/activity
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 4 in
Height 1.1 in
Weight 16.22 oz
Width 6.2 in
Environmental Parameters
Humidity Range Operating 0 – 90% (non-condensing)
Humidity Range Storage 5 – 95%
Max Operating Temperature 104 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -4 °F
Expansion / Connectivity
Interfaces 4 x 1000Base-T RJ-45 PoE – 15.4 W ¦ 4 x 1000Base-T RJ-45
Manufacturer Warranty
Service & Support Limited warranty – 3 years ¦ Technical support – 90 days
Miscellaneous
Compliant Standards CB, CCC, FCC Part 15 A
Localization North America
MTBF 2,244,211 hours
Power
Electric Current Required 1.25 A
Power Consumption Operational 60 Watt
Power Device External power adapter
Voltage Required DC 48 V
