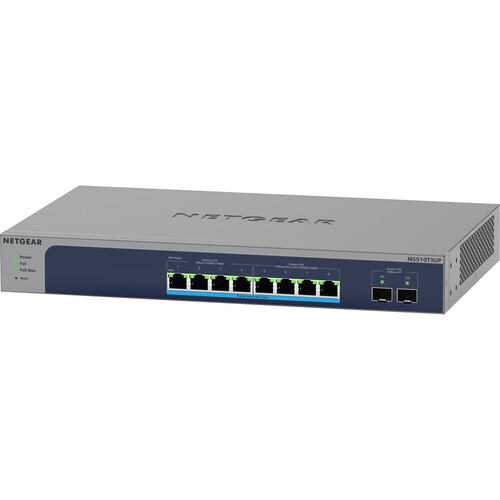

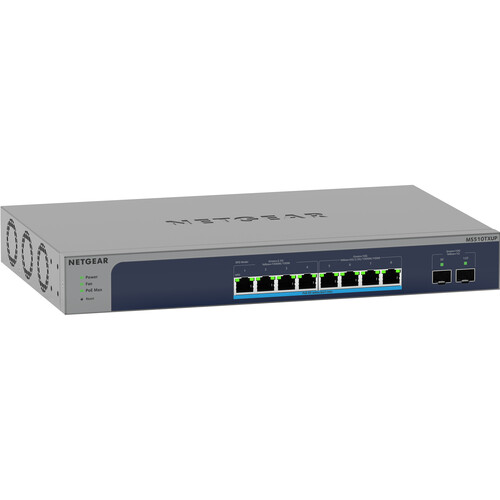

Netgear Ultra60 MS510TXUP 8-Port Multi-Gigabit PoE++ Compliant Managed Switch with SFP+


Key Features
  • 4 x 2.5G Ethernet Ports
  • 4 x 10G Ethernet Ports
  • 8 x PoE++ Compliant Ports
  • 2 x 10G SFP+ Ports
  • 140 Gb/s Switching Capacity
  • 14.8 Mpps Forwarding Rate
  • 1 GHz Dual-Core CPU | 256MB RAM
  • Desktop & Rack Mountable Design
  • 295W Power Budget
  • Netgear Insight Cloud Management Support

AED3,499.00

Netgear MS510TXUP-100NASĀ Overview

Expand your business’s network to support high-bandwidth applications and demanding power-over-Ethernet devices such as advanced IP security cameras, Wi-Fi 6 access points, and more with theĀ Netgear Ultra60 MS510TXUP 8-Port Multi-Gigabit PoE++ Compliant Managed Switch. This eight-port managed switch includes four 2.5G Ethernet ports alongside four 10G Ethernet ports for high-volume data transfers with compatible devices such as computers and network storage drives. All eight Ethernet ports are 60W PoE++ compliant with a total power budget of 295W. Two 10G SFP+ ports are also available for high-speed fiber uplinks and device connections. Equipped with a 1 GHz dual-core processor with 256MB of memory and featuring a 140 Gb/s switching capacity and 14.8 Mpps forwarding rate, this switch delivers fast and reliable performance. With three cooling fans, the MS510TXUP is designed to operate quietly in a desktop or rackmount installation, even when at full power. Activating the included 1-year Netgear Insight Cloud Management platform subscription allows you to configure, manage, and monitor connected devices using powerful Layer 2+ and Layer 3 Lite features from almost anywhere in the world.

Netgear Insight Cloud Management Features
  • Remote monitoring and management features with performance dashboards and troubleshooting capabilities.
  • Multi-device, multi-network, and multi-site remote monitoring and notifications using the Netgear Insight app.
  • The Netgear Insight Cloud Portal enables local or remote access for configuration, management, and monitoring using a tablet, laptop, or desktop computer.
  • Configurable in-app and email alerts and notifications
  • Zero-touch provisioning allows you to quickly add and configure additional Insight Managed devices added to the network.
  • Centralized network policies across Insight managed switches, access points, network storage devices, and more.
  • Cloud-based network administration, monitoring, and firmware management.
SKU: MS510TXUP-100NAS Category: Tag:
Key Specs
Inputs/Outputs
4x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3)
4x RJ45 10 GbE PoE++ (60 W, 802.3bt Type 3)
2x SFP+ 10 GbE
Stackable
No
Switching Bandwidth
140 Gb/s (Non-Blocking)
PoE Power Budget
295 W
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3, Layer 4
Supported Protocols
Auto-MDIX/MDI
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
10,000 Bytes
MAC Address Table Size
32K
Multicast Groups
256
Security
Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Latency
1.2 to 5.9 µs
Forwarding Rate
14.8 Mpps
Switching Bandwidth
140 Gb/s (Non-Blocking)
Priority Queues
8
Packet Buffer
2 MB
Computer
Flash Memory
64 MB
CPU
Dual-Core:Ā Up to 1 GHz
Memory
256 MB
Electrical
PoE per Port
60 W
PoE Power Budget
295 W
Power Draw
380.00 W (Max)
31.5 W (Idle)
Input Power
120 VAC, 60 Hz
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 82°F / 0 to 50°C
Operating Humidity
95%
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
95%
Noise Level
33.0 dB
General
Certifications
No
Cooling System
Fan
Mean Time Between Failures (MTBF)
0.8 Million Hours
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
13 x 8.1 x 1.7″ / 330 x 206 x 43Ā mm
Weight
5.53Ā lb / 2.51Ā kg
Packaging Info
Package Weight
7.885 lb
Box Dimensions (LxWxH)
17.8 x 10.6 x 3.6″
