Nimbus WiMi5300A Encoder/Decoder System and KVM Extender with Low Latency

Add to Wishlist
Key Features
  • Encode/Decode/Stream HDMI Video via IP
  • H.264/MPEG-4/AVC Encoding/Decoding
  • Supports up to 1080p60 Resolution
  • HDMI, USB-A, and LAN Connectivity
  • RTSP/RTP/UDP Multicast Protocols
  • Ultralow Latency, PoE Compliant
  • IP or USB Management
  • RS-232 Control

AED15,599.00

Add to Wishlist

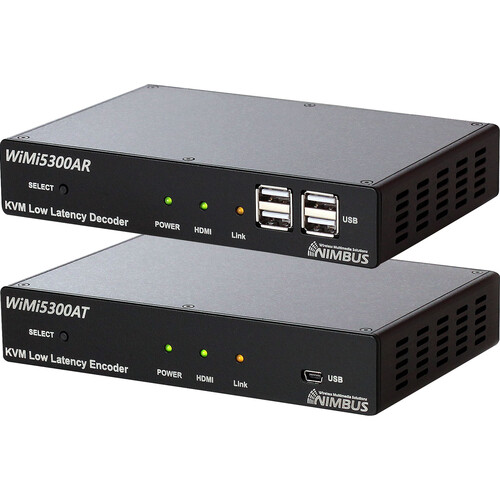

Facilitate HDMI video encoding, decoding, and streaming via remote PC using this WiMi5300A Encoder/Decoder System and KVM Extender with Low Latency from Nimbus. Included with the system is a transmitter encoding unit and a receiver decoding unit. The system supports a maximum video resolution of 1080p60 and it encodes, decodes, and streams via RTP/RTMPS. It also supports DVI and VESA video formats and features four USB-A ports on the receiver which function as KVM connections. Manage the system using the RS-232 system, locally via USB, or via IP.

Nimbus WiMi5300AT H.264 HDMI Streaming Encoder/KVM Extender with Low Latency

Stream HDMI video up to 1080p H.264 to LAN and Internet destinations with the WiMi5300AT H.264 HDMI Streaming Encoder/KVM Extender with Low Latency from Nimbus. The encoder has one HDMI 1.3 input with a maximum resolution of 1080p60, and it encodes, streams via RTP/RTMPS, and outputs up to 1080p60 video. The encoder also features an HDMI loop output to monitor the feed on a local display.

The encoder supports DVI and VESA video formats, supports input of 2-channel embedded PCM audio and encodes embedded AVC audio over IP. It features a USB connector to plug into a computer for local device management and can transmit KVM control via IP to a destination WiMi5300AR receiver. It can also be managed via IP and can be powered over its LAN connection via PoE (Power-over-Ethernet) using a supported PoE network.

Key Features
Encode and live stream up to 1080p HDMI video onto LAN or Internet
H.264/MPEG-4/AVC encoding
Ultra-low latency at 20ms end to end
Support for IEEE 802.3af PoE (Power-over-Ethernet)
RTSP/RTP video streaming server
USB connector for computer management keyboard/mouse signal relay for KVM extending over IP
Compatible with Nimbus WiMi5300R receiver
Applications
Remote computer control
Control room
Medical imaging
Digital signage
Low-cost Full HD encoder
Full HD live streaming
RTSP server
Education/multi-vision
SKU: WIMI5300AT/R Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI (1.3) Female
Audio Inputs
No
Video Outputs
1x RJ45 Female
1x HDMI (1.3) Female (Loop Output)
Audio Outputs
No
Other I/O
1x Mini-USB Input
Expansion Slots
No
Latency
to 20 ms
Format Support
Input Video Format
HDMI
1080p at 23.98/24/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576p at 50 fps
576i / 625 lines at 50 fps
480p at 59.94 fps
480i / 525 lines at 59.94 fps
UXGA (1600 x 1200) at 60 fps
SXVGA (1280 x 1024) at 60 fps
SXGA- (1280 x 960) at 60 fps
1280 x 768 at 60 fps
XGA+ (1152 x 864) at 60 fps
XGA (1024 x 768) at 60 fps
Output Video Format
RJ45
1080p at 23.98/24/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
HDMI
1080p at 23.98/24/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
480p 59.94 fps
480i / 525 lines 59.94 fps
Standards
HDR Support
No
IP Streaming
Video IP Encoding
H.264, MP4, RTMP, RTP, RTSP: 1920 x 1080 at 60p
Hardware
Wireless
Yes
Power
Power I/O
1x Barrel Input
PoE Support
PoE 802.3af

Nimbus WiMi5300AR H.264 HDMI Streaming Decoder/KVM Extender with Low Latency Specs

Inputs / Outputs
Video Inputs
1x RJ45 Female
Audio Inputs
No
Video Outputs
1x HDMI (1.3) Female
Audio Outputs
No
Other I/O
4x USB-A Input
1x DE-9/DB-9 RS-232
Expansion Slots
No
Latency
20 ms
Format Support
Input Video Format
RJ45
1080p 23.98/24/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Output Video Format
HDMI
1080p 23.98/24/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
480p 59.94 fps
480i / 525 lines 59.94 fps
UXGA (1600 x 1200) 60 fps
SXGA (1280 x 1024) 60 fps
1280 x 960 60 fps
1280 x 768 60 fps
XGA+ (1152 x 864) 60 fps
XGA (1024 x 768) 60 fps
Embedded Audio
LAN (RJ45): 2-Channel
Standards
HDR Support
Not Specified by Manufacturer
IP Streaming
Video IP Decoding
H.264, MP4, RTMP, RTP, RTSP: 1920 x 1080 at 60p
Wireless
Wi-Fi
Power
Power I/O
1x Barrel Input
