KVM Switches, Network Switches & Routers
NTI DVI Video Splitter w/ audio – 4 Port
Availability:
30 in stock
799.00 د.إ
30 in stock
DVI Video Splitter w/ audio – 4 Port

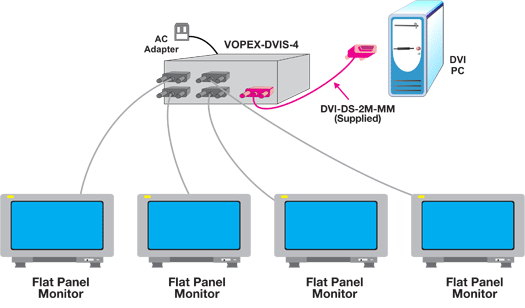

The VOPEX DVI Video Splitter enables up to 4 single link digital DVI displays to be driven by a single digital DVI source with no loss of signal.
Product Features and Benefits
- Supports DVI interface for crisp and clear video quality on flat panel displays.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920×1200.
- Compliant with DVI 1.0 and HDCP standards.
- Stereo Audio Enabled
- Supports the DDC2B protocol.
- EDID learning for the support of any DVI display device.
- Cascade multiple units for more numerous display configurations.
- Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.
| Video Input | Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI output. Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10. Female DVI-I connector. Signal type: single link digital DVI HDCP compliant |
| Video Output | Female DVI-I connectors. Signal type: single link digital DVI. Resolutions: HDTV resolutions to 1080p and computer resolutions to 1920×1200 at 60 Hz. HDCP compliant |
| Environmental | |
| Operating Temperature | 32 to 100°F (0 to 38°C) |
| Storage Temperature | -20 to 140°F (-30 to 60°C) |
| Humidity | 17-90% Non-Condensing |
| Mechanical | |
| Dimensions(WxDxH) | Local: 5.14 x 3.47 x 1.68 in (130.55 x 88 x 42.67 mm) |
| Weight | 1.1 lb (0.50 kg) |
| Approvals | RoHS |
| Warranty | Two Years |
| Power | |
| Type | 110 or 220 VAC at 50 or 60 Hz via AC adapter. |
| Audio | 3.5 mm stereo audio jacks. Frequency response: 20 Hz to 20 kHz, +/-1 dB. Total Harmonic Distortion (THD): 0.012%. Stereo Crosstalk: -82 dB. Input impedance: 10k Ohms. CD quality audio output. |
| Weight | 0.5 kg |
|---|
