NTI HDMI Quad Screen Multiviewer – 1U Dual Side-by-Side – Med Grade Power
AED11,999.00
HDMI Quad Screen Multiviewer – 1U Dual Side-by-Side – Med Grade Power

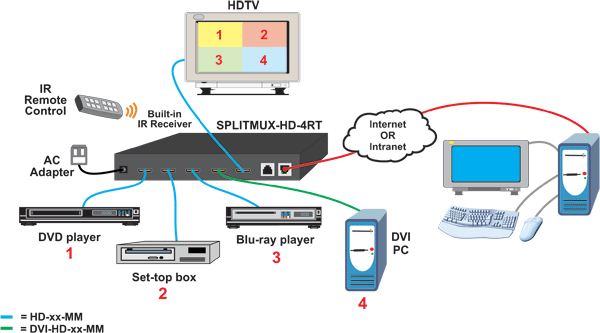

The SPLITMUX-HD-4RT-2RM HDMI Quad Screen Multiviewers allow you to simultaneously display real-time HDMI/DVI video from two, three, or four different sources on a single monitor. It is capable of displaying the video sources in quad, PiP, full, or custom mode. In custom display mode, each of the quadrants can be adjusted to any size and positioned to any location on the display.
- Dual Side-by-Side Rackmount Multiviewers
- Quad, Picture in Picture, Full Screen, and Custom display modes.
- Custom Display Mode: the size, position and selection of any or all windows are customizable.
- 2- and 3-source viewing is possible with this method.
- Maintain input aspect ratio if desired—no stretching necessary.
- Layer display windows and adjust transparency of each video source display.
- Independent video in to video out resolution.
- Supports 2K resolution 2048×1080, HDTV resolutions to 1080p, and computer resolutions to 1920×1200.
- HDMI features supported:
- Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr.
- Outputs: 24- and 30-bit sRGB.
- Four-channel non-mixing stereo with 16-, 20-, or 24-bit uncompressed PCM audio.
- Bandwidth up to 165 MHz
- Inputs: 2.25 Gbps
- Output: 2.0625 Gbps
- HDCP compliant.
- Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
- Zoom, pan, and crop the image from any source to focus on key areas.
- Switch audio independently of video from connected HDMI sources.
- Adjustable audio gain with VU level indicators for each input channel.
- A customized text label can be added for each video window to provide easy input identification (UMD).
- Control the multiviewer through Ethernet, RS232 serial port, on screen display (OSD), front panel buttons, or IR remote.
- Cascade multiviewers to display video from any number of video sources on one screen.
- Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings.
- Backup and restore multiviewer configurations.
- Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor’s EDID.
| Weight | 1.1 kg |
|---|
Product Specifications
| Video Inputs | Four female HDMI connectors. Supported video input resolutions: 2K Cinema (2048×1080 @ 60Hz) HDTV resolutions to 1080p Computer resolutions to 1920×1200 Supports digital HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners. Multiplatform support: Windows 2000/XP/Vista/7/8, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10. |
| Video Outputs | One female HDMI connector. Supported video output resolutions: 2K Cinema (2048×1080 @ 60Hz) HDTV resolutions to 1080p Computer resolutions to 1920×1200 HDMI-embedded audio switching (four-channel stereo, non-mixing or one-channel stereo, mixing). |
| Protocols | HTTP, HTTPS, TCP/IP, DHCP, UDP, ARP, IPV4 |
| Power | Medical Grade Power Supply Accepts 100 to 240VAC Efficiency standards: EISA2007, CEC Efficiency Level V, EU (EC) No 278/2009 Phase II. Safety standards: EN/IEC/CSA/UL60601-1. |
| Dimensions | WxDxH (in): Without rackmount kit: 7.35×4.98×1.75 (187x126x45 mm) With rackmount kit: 19×4.98×1.75 (483x126x45 mm) Can be mounted so that the front panel buttons are facing the front or back of the rack. Includes cable management tray. Adds 3.37″ to the depth. |
| Enviromental | Operating temperature: 32 to 122°F (0 to 50°C). Storage temperature: -22 to 140°F (-30 to 60°C). Operating and storage relative humidity: 17 to 90% non-condensing RH. |
| Regulatory Approvals | CE, RoHS, TAA Compliant |
