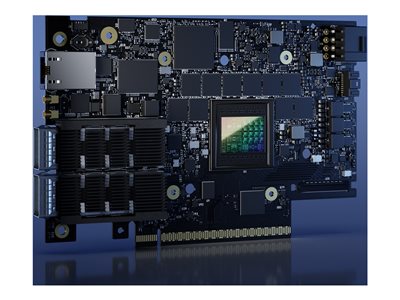

NVIDIA BlueField-3 P-Series DPU – 200Gbe/NDR200 VPI – Dual-Port QSFP112 – PCIe Gen 5.0
NVIDIA BlueField-3 P-Series DPU – 200Gbe/NDR200 VPI – Dual-Port QSFP112 – PCIe Gen 5.0
AED20,199.00
| Category | Details |
|---|---|
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 5.0 x16 |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0, PCIe 5.0 |
| Networking | |
| Ports | 200 Gigabit QSFP112 x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-CX, Ethernet 10GBase-CX4, Ethernet 10GBase-R, Ethernet 40GBASE-CR4, Ethernet 100GBase-CR4, Ethernet 40GBase-R2, Ethernet 25GBase-R, Ethernet 50GBase-R2, Ethernet 200GBase-CR4, Ethernet 100GBase-CR2, Ethernet 100GBase-CR1, Ethernet 50GBase-CR |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 200 Gigabit Ethernet, 200 Gigabit InfiniBand |
| Features | Auto-negotiation, InfiniBand FDR Link support, InfiniBand EDR Link support, InfiniBand SDR Link support, InfiniBand HDR100 Link support, InfiniBand HDR Link support, crypto enabled, integrated BMC, 16-core CPU, InfiniBand NDR200 Link support, FHHL, PCIe x16 extension option |
| Compliant Standards | IBTA 1.5 |
| Processor / Memory | |
| RAM | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 2 x 200Gb Ethernet / 200Gb Infiniband – QSFP112 |
| Miscellaneous | |
| Compliant Standards | VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM |
| Power | |
| Voltage Required | DC 12 V |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 4.4 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 85% RH |
