ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of HDR100 EDR InfiniBand and 100GbE Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability.
Network Adapters

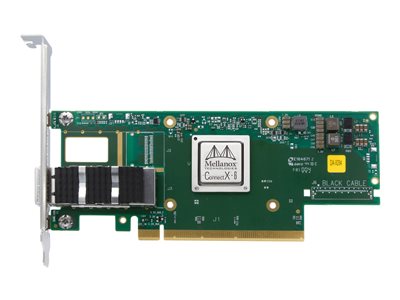

NVIDIA ConnectX-6 VPI MCX653105A-ECAT-SP – Single Pack – network adapter – PCIe 4.0 x16 – 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
NVIDIA ConnectX-6 VPI MCX653105A-ECAT-SP – Single Pack – network adapter – PCIe 4.0 x16 – 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
4,799.00 د.إ
Category | Specification |
---|
General |
Device Type | Network adapter |
Form Factor | Plug-in card |
Interface (Bus) Type | PCI Express 4.0 x16 |
PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0 |
Networking |
Ports | 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1 |
Connectivity Technology | Wired |
Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand |
Data Transfer Rate | 100 Gbps |
Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
Features | Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, TLP Processing Hint (TPH), InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), InfiniBand HDR100 Link support |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
Expansion / Connectivity |
Interfaces | 1 x 100Gb Ethernet / 100Gb Infiniband – QSFP28 |
Miscellaneous |
Compliant Standards | RoHS |
Software / System Requirements |
OS Required | FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS |
Dimensions & Weight |
Depth | 6.6 in |
Height | 2.7 in |
