ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of solid adapter cards. ConnectX-6 VPI cards enable high performance and flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability. ConnectX-6 VPI MCX653106A-ECAT card supports HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 100, 50, 40, 25, and 10 Gb/s Ethernet speeds.
Network Adapters

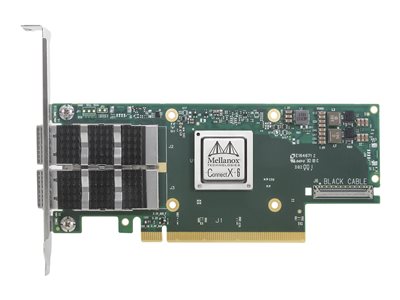

NVIDIA ConnectX-6 VPI MCX653106A-ECAT – Single Pack – network adapter – PCIe 4.0 x16 – 100Gb Ethernet / 100Gb Infiniband QSFP56 x 2
NVIDIA ConnectX-6 VPI MCX653106A-ECAT – Single Pack – network adapter – PCIe 4.0 x16 – 100Gb Ethernet / 100Gb Infiniband QSFP56 x 2
AED5,699.00
General |
Device Type | Network adapter |
Form Factor | Plug-in card |
Interface (Bus) Type | PCI Express 4.0 x16 |
PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0 |
Networking |
Ports | 100Gb Ethernet / 100Gb Infiniband QSFP56 x 2 |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand |
Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, SMB, NFS, SRP |
Features | MPLS support, InfiniBand QDR Link support, VPI, QoS, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, Energy Efficient Ethernet, InfiniBand FDR Link support, AER, checksum offload support, MSI-X, iSCSI remote boot, HDS, Ethernet remote boot, InfiniBand remote boot, TSS, RoCE, PFC, NC-SI, VXLAN, NVGRE, Link Aggregation, TPH, SDN, XRC transport, DCT, UMR, ODP, MSI, NPAR, DPDK, iSCSI Extensions over RDMA (iSER), Jumbo Frames support (up to 9600 bytes), VLAN Tagging, InfiniBand HDR100 Link support, ASAP, MCTP over SMBus, NFV, DPC, ACS, PASID, ATS, Rendezvous protocol offload, MPI Tag Matching, burst buffer offload, In-Network Memory registration-free RDMA memory access, ETS, QCN, GENEVE support, NVMe-oF |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 1149.6 |
Expansion / Connectivity |
Interfaces | 2 x 100Gb Ethernet / 100Gb Infiniband – QSFP56 |
Miscellaneous |
Included Accessories | Tall bracket |
Encryption Algorithm | AES-XTS |
Compliant Standards | RoHS |
Software / System Requirements |
OS Required | FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, Ubuntu, VMware ESX |
Dimensions & Weight |
Depth | 6.6 in |
Height | 2.7 in |
