NVIDIA Tesla P100 900-2H400-0300 GPU Accelerator Graphics Card

Add to Wishlist

Interface Types: PCIe

Electrical Interface: PCIe – v3.0 – 16GBps

On-Board Cache: 16GB

Wattage/VA: 250W

AED28,499.00

Add to Wishlist

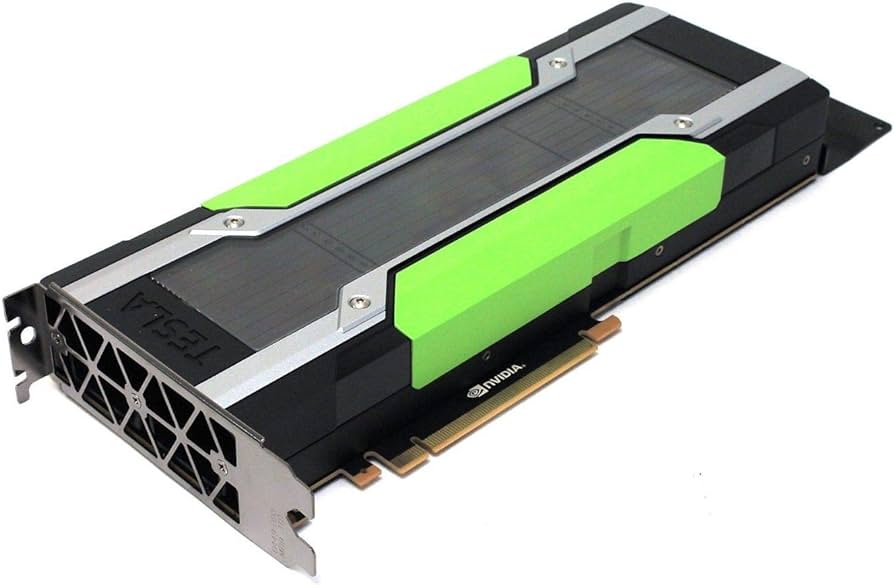

NVIDIA TESLA P100 GPU ACCELERATOR

The NVIDIA® Tesla® P100 GPU Accelerator for PCIe is a dual-slot 10.5 inch PCI Express Gen3 card with a single NVIDIA® Pascal™ GP100 graphics processing unit (GPU). It uses a passive heat sink for cooling, which requires system air flow to properly operate the card within its thermal limits. The Tesla P100 PCIe supports double precision (FP64), single precision (FP32) and half precision (FP16) compute tasks, unified virtual memory and page migration engine.



For performance optimization, NVIDIA GPU Boost™ feature is supported. By adjusting the GPU clock dynamically, maximum performance is achieved within the power cap limit.

Tesla P100 PCIe boards are shipped with ECC enabled by default to protect the GPU’s memory interface and the on-board memories. ECC protects the memory interface by detecting any single, double, and all odd-bit errors. The GPU will replay any memory transaction that have an ECC error until the data transfer is error-free. ECC protects the DRAM content by fixing any single-bit errors and detecting double-bit errors. There is no replay associated with ECC. The Tesla P100 PCIe with HBM2 memory has native support for ECC and has no ECC overhead, both in memory capacity and bandwidth.

For more information on compute capabilities, HBM2, unified virtual memory, and page migration engine visit NVIDIA official website.

The Tesla P100 for PCIe is available in two memory configurations:

  • Tesla P100 PCIe with 16GB HBM2
  • Tesla P100 PCIe with 12GB HBM2



As a board design, both the memory configurations are identical and this product brief covers both configurations.

SKU: P100 Category:
NVIDIA TESLA P100 GPU ACCELERATOR
Model# 900-2H400-0300
Alt Model# 699-2H400-0201-530
868199-001
868585-001
Q0E21A
Product Specifications
Total board power 250 W
PCI Device IDs Device ID:

  • 0x15F8

Vendor ID:

  • 0x10DE

Sub-Vendor ID:

  • 0x10DE

Sub-System ID:

  • 0x118F
NVIDIA CUDA cores 3584
GPU clocks Base

  • 1189 MHz

Maximum boost

  • 1328 MHz
VBIOS EEPROM size

  • 4 Mbit

UEFI

  • Supported
PCI Express interfaces PCI Express 3.0 ×16 Lane and polarity reversal supported
Power connectors and headers One CPU 8-pin auxiliary power connector
Weight Board

  • 1177 Grams

Bracket with screws

  • 21 Grams

Long offset extender

  • 52 Grams

Straight extender

  • 42 Grams
Memory Specifications
Maximum memory clock 725 MHz
Memory size 16GB HBM2
Memory bus width 4096-bit
Peak memory bandwidth Up to 732 GB/s
Software Specifications
Compatibility mode supported
  • Compute (default)
  • Graphics
Base address BAR0:

  • 16 MB

BAR1:

  • 16 GB (Compute) or 256 MB (Graphics)

BAR3:

  • 32 MB

I/O BAR:

  • 4 KB (Graphics only)
PCI class code 0x03 – Display Controller
PCI sub-class code
  • 0x00 – VGA-Compatible Controller (Graphics)
  • 0x02 – 3D Controller (Compute)
ECC support Supported (Enabled by default)
SMBus (8-bit address)
  • 0x9E (write)
  • 0x9F (read)
SMBus direct access Supported
SMBPBI (SMBus Post Box Interface) Supported
Board Environment and Reliability Specifications
Operating temperature 0 °C to 45 °C
Storage temperature 40 °C to 75 °C
Operating humidity 5% to 90% relative humidity
Storage humidity 5% to 95% relative humidity
Mean time between failures (MTBF) Uncontrolled environment:

  • 769566 hours at 35 °C

Controlled environment:

  • 1523813 hours at 35 °C
Thermal Specifications
Total board power 250 W
GPU shutdown temperature 85 °C
GPU slowdown temperature (50% clock slowdown) 82 °C
GPU maximum operating temperature 80 °C
