Network Adapters

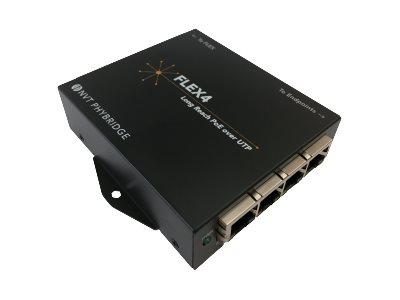

NVT FLEX series FLEX4 – network extender – 10Mb LAN, 100Mb LAN
NVT FLEX series FLEX4 – Network extender – 100Mb LAN – 10Base-T, 100Base-TX – 4 ports – up to 2000 ft
AED1,699.00
The FLEX series of adapters and extenders are designed to extend PoE far beyond standard Ethernet reach. When used with the FLEX24 Switch or the FLEX-Base Extender, the FLEX adapters can deliver 10/100 Mbps (symmetrical, full duplex) and PoE (up to 50 W) over 1-, 2-, or 4-pair UTP/STP with up to 2,000 ft (610 m) reach. This helps eliminate the costs and disruptions associated with IDF closet requirements. FLEX4 is IEEE-compliant and negotiates power requirements with up to 4 IP devices, delivers 30W of power over 2-pairs, and can be locally powered.
| Attribute | Specification |
|---|---|
| General | |
| Device Type | Network extender |
| Form Factor | External |
| Networking | |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 2000 ft |
| Features | Full duplex mode, metal housing |
| Expansion / Connectivity | |
| Interfaces | 4 x Ethernet 10Base-T/100Base-TX (PoE) – RJ-45 female – 30 W<br>1 x Ethernet 10Base-T/100Base-TX – RJ-45 |
| Miscellaneous | MTBF: 20 years |
| Compliant Standards | EN 50121-4 |
| Power | |
| Power Over Ethernet (PoE) | PoE++ |
| Power Consumption Operational | 1.5 Watt |
| Dimensions & Weight | |
| Width | 3.8 in |
| Depth | 3.9 in |
| Height | 1 in |
| Weight | 7.55 oz |
| Environmental Parameters |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 – 95% (non-condensing) |
