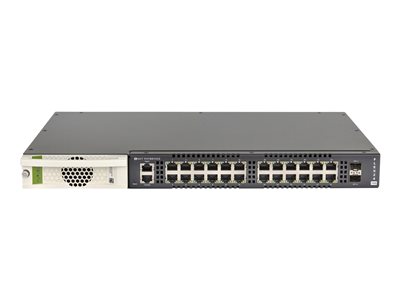

NVT Phybridge FLEX24-10G – switch – 24 ports – managed – rack-mountable

Add to Wishlist
NVT Phybridge FLEX24-10G – Switch – L4 – managed – 24 x 10/100/1000 (PoE++) + 2 x 10 Gigabit SFP+ (uplink) – desktop, rack-mountable – PoE++

AED20,099.00

Add to Wishlist

The NVT Phybridge FLEX24-10G switch is the most versatile Power over Ethernet (PoE) switch on the market, designed to make IP/IoT deployments simple, secure, and cost-effective. The FLEX24-10G switch delivers up to 50 Watts of power (PoE++) and 10/100/1000 Mbps symmetrical, full-duplex, over 2 or 4 pair UTP (unshielded twisted pairs) cabling with up to 2,000ft (610m) reach. The FLEX24-10G switch enables Modern LAN principles and comes standard with 2 x SFP+ 10Gb uplink ports, dedicated management and console ports, 24 x 10/100/1000 downlink ports, a 1,000 Watt hot-swappable power supply, power sharing, and power redundancy. The FLEX24-10G switch also comes with a new and intuitive GUI interface, ideal for any cloud or premise-based managed service offering. The new and improved CLI (Command Line Interface) is very similar to the Cisco offering for ease of use.

SKU: NV-FLX-024-10G Category: Tag:
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE++) + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE++
Capacity VLANs supported: 4095
Jumbo Frame Support 10KB
Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, SCP, SFTP
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features IGMP snooping, Syslog support, store and forward, IPv6 support, firmware upgradable, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), SNMP trap, Multiple VLAN Registration Protocol (MVRP), loop prevention, Generic VLAN Registration Protocol (GVRP), Protocol-based VLANs support, ARP inspection, Link Aggregation, Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA), Voice VLAN, LLDP-MED, MAC based VLAN, Unidirectional Link Detection (UDLD), Automatic Media-Dependent Interface Crossover (MDIX)
Processor MIPS 24Kec: 500 MHz
Expansion / Connectivity Interfaces:
24 x 1000Base-T RJ-45 PoE++ – 50 W
2 x 10Gbit LAN SFP+ uplink
1 x management (Gigabit LAN) RJ-45
1 x console RJ-45
Power Power Device: Internal power supply – hot-plug
Power Provided: 1000 Watt
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 20 Watt
Miscellaneous Rack Mounting Kit: Included
MTBF: 20 years
Compliant Standards FCC Class A certified, ICES-003, RoHS, EN 55024:2010, EN 55032:2012, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014-10, EN 62368-1:2014, UL 60950-1:2014 Second Edition, IEC 62368-1: 2014, AS/NZS 62368.1: 2018, EN 50121-4:2016
Dimensions & Weight Width: 17.1 in
Depth: 10.4 in
Height: 1.7 in
Weight: 7.34 lbs
Environmental Parameters Min Operating Temperature: 14 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 – 95% (non-condensing)
